Plan 92016VS

Bungalow with Drive Under Garage

Heated S.F.
3,094
Beds
3 - 4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 92016VS

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 92016VS

M-F 9am-5pm EST |

1-203-761-8500

Basement

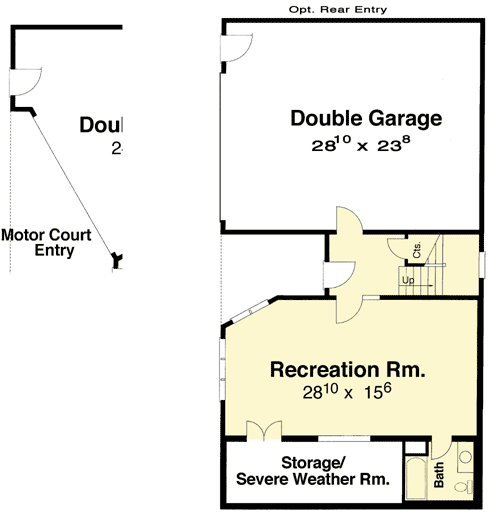

Plan 92016VS: Bungalow with Drive Under Garage - Floor Plan - Basement - Bungalow, Cottage, Craftsman, Traditional

Main Level

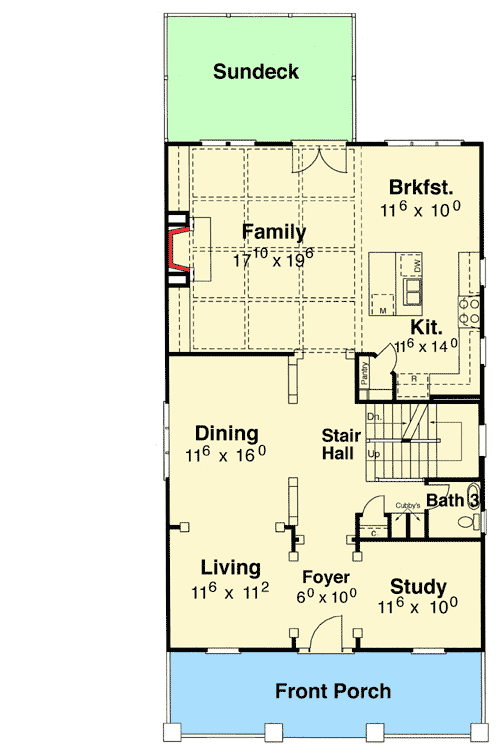

Plan 92016VS: Bungalow with Drive Under Garage - Floor Plan - Main Level - Bungalow, Cottage, Craftsman, Traditional

2nd Floor

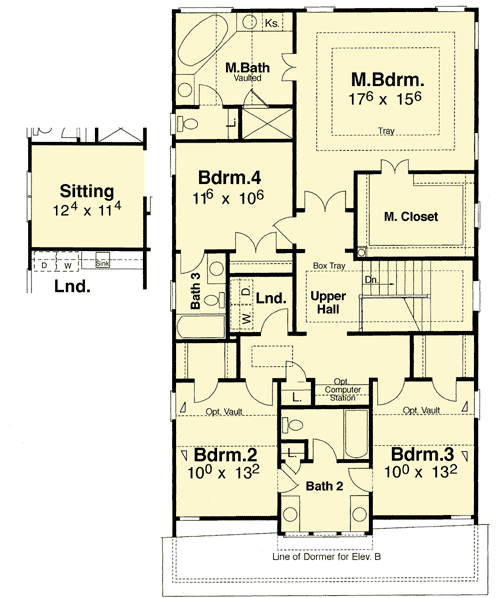

Plan 92016VS: Bungalow with Drive Under Garage - Floor Plan - 2nd Floor - Bungalow, Cottage, Craftsman, Traditional

Plan Details

  • A Craftsman-style bungalow with a surprise: a drive-under garage! This house plan is perfect for narrow lot development that has a little fall to the property.
  • From the foyer you have fantastic sight lines extending all the way to the back of the home.
  • Columns create a great visual effect throughout the home and are used to subtly separate spaces.
  • The unique garage entry allows you to fit this 30' wide plan with a side entry garage on a 45'-50' wide lot. The garage can be built with alternate rear alley access.
  • Related Plan: Get an alternate exterior with house plan 92015VS.

What's Included

  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,094 sq. ft.

Lower Level

140 sq. ft.

1st Floor

1,440 sq. ft.

2nd Floor

1,514 sq. ft.

Bonus

560 sq. ft.

Deck

192 sq. ft.

Porch, Front

240 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

68' 0"

Max Ridge Height

28' 0"

Garage

Type

Drive Under

Area

720 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Traditional

Special Features

Jack & Jill Bath

Master Suite - Sitting Area

Master Suite - Upstairs

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Photo Gallery

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,094 sq. ft.

Lower Level

140 sq. ft.

1st Floor

1,440 sq. ft.

2nd Floor

1,514 sq. ft.

Bonus

560 sq. ft.

Deck

192 sq. ft.

Porch, Front

240 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

68' 0"

Max Ridge Height

28' 0"

Garage

Type

Drive Under

Area

720 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Craftsman

Traditional

Special Features

Jack & Jill Bath

Master Suite - Sitting Area

Master Suite - Upstairs

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Photo Gallery

Sloping Lot
