Plan 8169LB

Bungalow with Second Floor Master Retreat

Heated S.F.
1,613
Beds
3
Baths
2
Stories
2

Floor Plan

Plan 8169LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 8169LB

M-F 9am-5pm EST |

1-203-761-8500

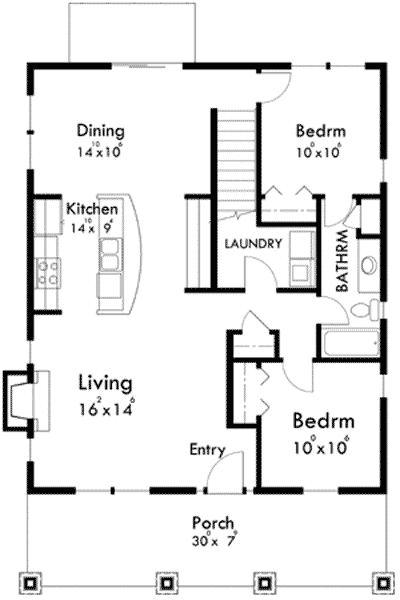

Main Level

Plan 8169LB: Bungalow with Second Floor Master Retreat - Floor Plan - Main Level - Bungalow, Cottage, Craftsman, Northwest

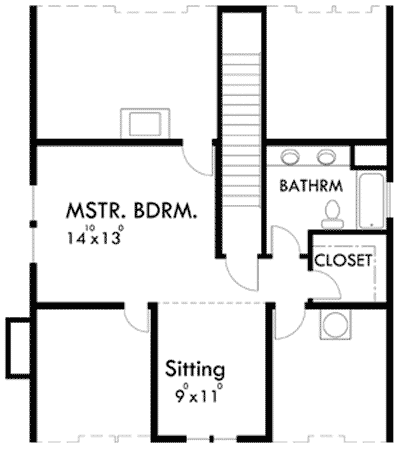

2nd Floor

Plan 8169LB: Bungalow with Second Floor Master Retreat - Floor Plan - 2nd Floor - Bungalow, Cottage, Craftsman, Northwest

Plan Details

  • Sturdy columns set on stone bases support the 7' deep front porch of this Northwest house plan.
  • Step into the huge open space that combines the living room, kitchen and dining room with views that flow from front to back.
  • Sliding glass doors take you out to the back yard.
  • There are two bedrooms on this main floor and a huge master suite up on the second floor.
  • From the master sitting room, you can see out to the front yard.
  • Attic access gives you extra storage.

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,613 sq. ft.

1st Floor

1,055 sq. ft.

2nd Floor

558 sq. ft.

Porch, Front

210 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

43' 9"

Max Ridge Height

24' 5"

Ceiling Heights

First Floor

9'

Second Floor

7' 6"

Architectural Style

Bungalow

Cottage

Craftsman

Northwest

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,613 sq. ft.

1st Floor

1,055 sq. ft.

2nd Floor

558 sq. ft.

Porch, Front

210 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

43' 9"

Max Ridge Height

24' 5"

Ceiling Heights

First Floor

9'

Second Floor

7' 6"

Architectural Style

Bungalow

Cottage

Craftsman

Northwest

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - Sitting Area

Master Suite - Upstairs

Plan Collections

Photo Gallery
