Bunkhouse Cabin - 559 Square Foot Vacation Getaway

Name: Plan 28903JJ: Bunkhouse Cabin - 559 Square Foot Vacation Getaway
Brand: Architectural Designs
SKU: 28903JJ
Price: 429.89 USD
Availability: InStock

Heated S.F.

559

Beds

Baths

Stories

Floor Plan

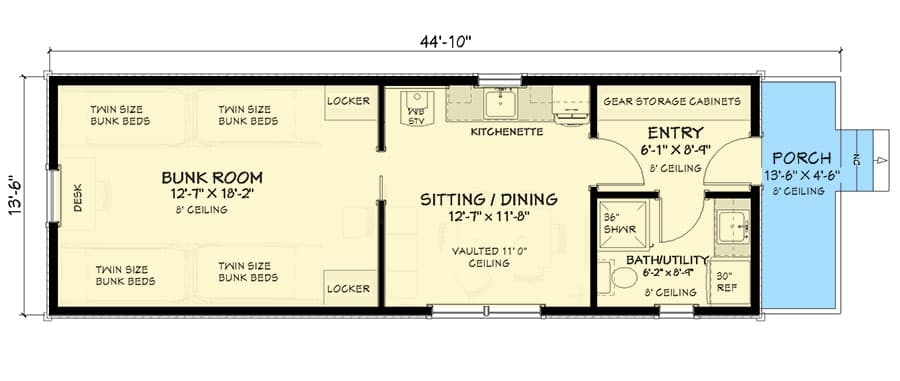

First Floor

3D View of Main Floor

3D View of Main Floor - Alternate bed layout

Plan Details

Only 13'6" wide, this bunkhouse can slip in between the trees minimizing any land clearing needed to get it built.
The front porch is 4'6" deep and is wide enough for a rocking chair or two.
Storage cabinets just inside the entry help reduce clutter. There is a full bath there as well with a fridge for drinks.
The center portion of the home is vaulted and has a kitchenette and a small stove.
A pocket door takes you to the back of the home where you can sleep up to 8 with 4 bunk beds.

What's Included

Cover Sheet
Fully dimensioned floor plan(s)

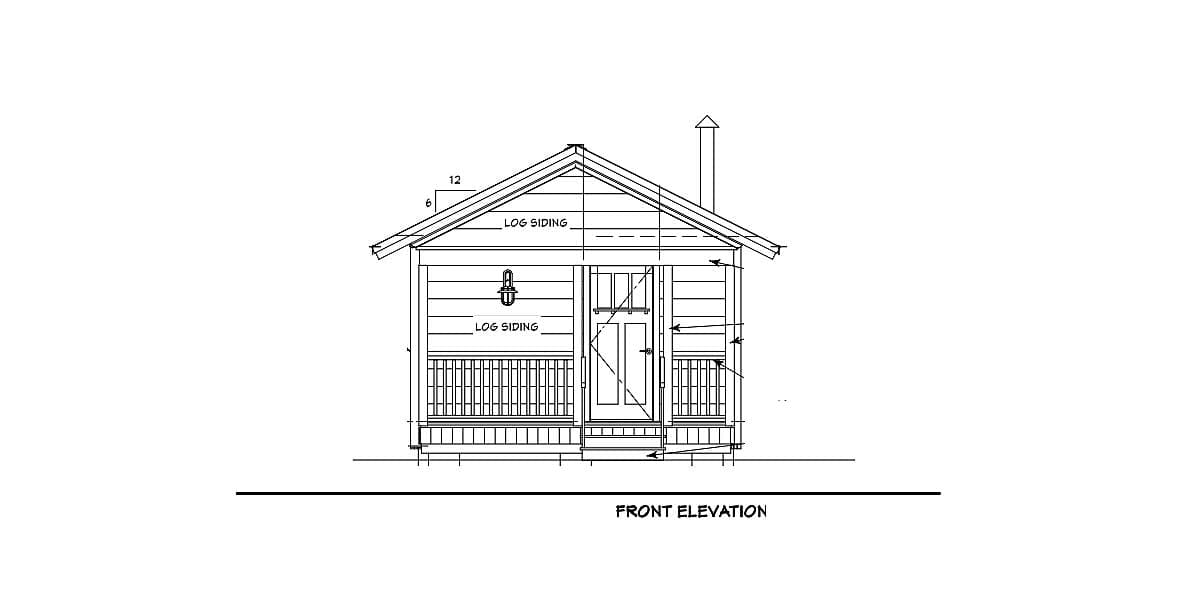

Elevations
Cross Sections/ Garage elevations when available
Foundation Plan
Roof Plan
Lighting layout
3D Interior Drawings

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
