Cape Cod Charmer

Plan 22109SL

  • 975

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • This charming Cape Cod home plan makes a wonderful guest cottage.
  • The L-shaped kitchen is efficient with room for a full-sized refrigerator.
  • Dormer windows add charm to the second floor bedrooms.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

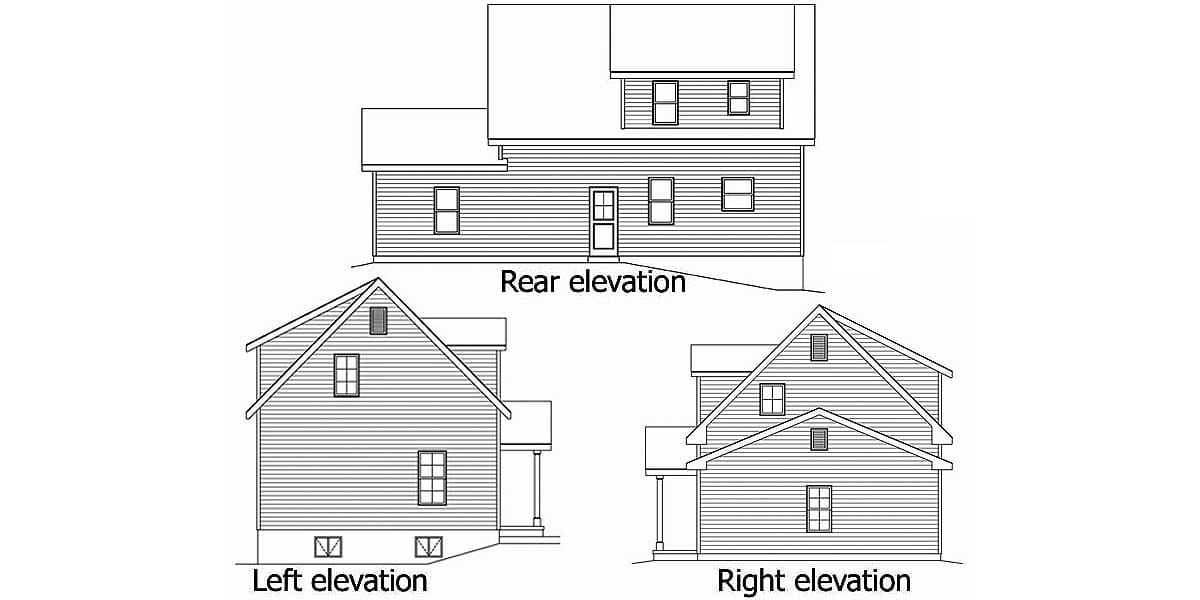

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

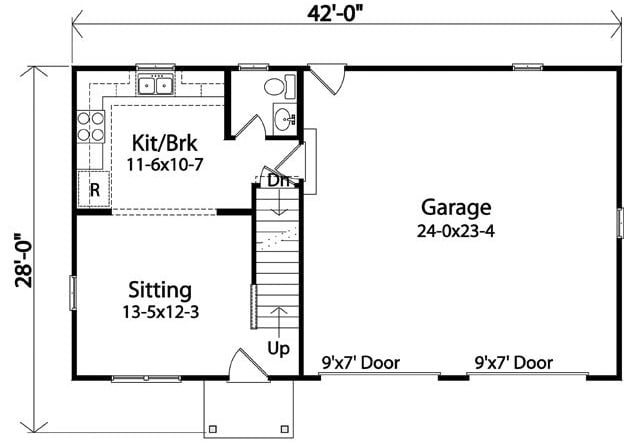

Cape Cod Charmer - 22109SL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

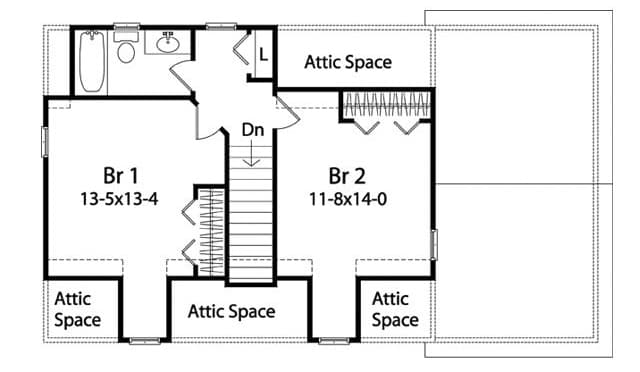

Cape Cod Charmer - 22109SL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 975 sq. ft.
  • 1st Floor: 424 sq. ft.
  • 2nd Floor: 551 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 28' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 583 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Cape Cod Charmer

  • 975

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $495
  • 8 Sets $545
  • PDF - Single-Build $545
  • CAD - Single-Build $645
  • PDF - Unlimited Build $1,445
  • CAD - Unlimited Build $1,545
  • View all purchase option online

About This Plan

  • This charming Cape Cod home plan makes a wonderful guest cottage.
  • The L-shaped kitchen is efficient with room for a full-sized refrigerator.
  • Dormer windows add charm to the second floor bedrooms.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 975 sq. ft.
  • 1st Floor: 424 sq. ft.
  • 2nd Floor: 551 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 28' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 583 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
Plan 22109SL
View this and more for this plan by visiting www.architechtecturaldesigns.com/22109SL
|
Need Help? 800-854-7852
|
Plan 22109SL
