Car Enthusiast's Garage Plan with RV and Car Parking

Plan 61295UT

  • 0

    Heated s.f.

  • 0

    Beds

  • 2

    Stories

  • 4

    Cars

  • Fit up to 6 cars parked tandem-style in the main portion of this car-enthusiast's house plan (two each behind 10' by 8' doors; two remaining ones behind the 10' by 10' door) and an RV behind the 16' by 14' door on the right.
  • Doors inside give you access from the RV bay to the car part.
  • Stairs running along the back take you to a wide-open flex room above.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

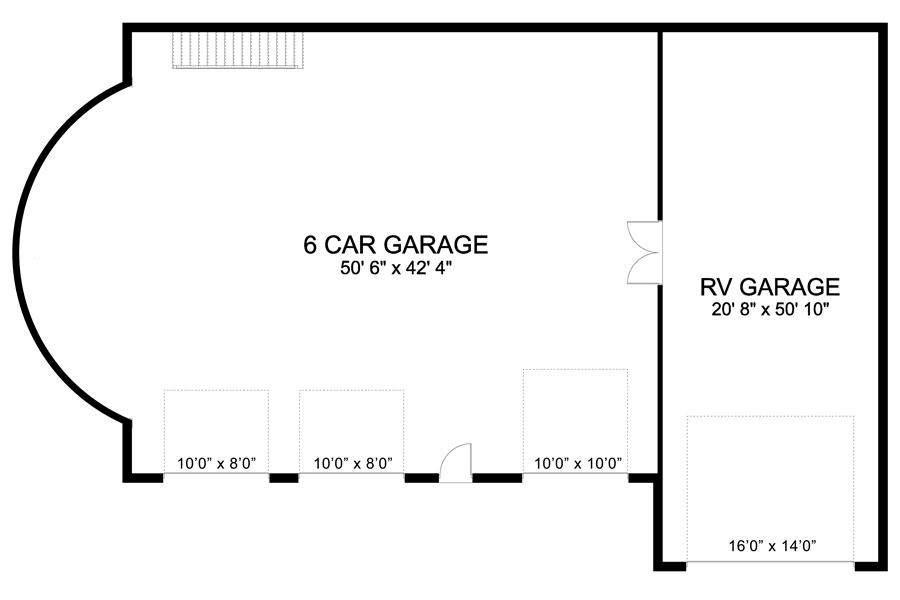

Car Enthusiast's Garage Plan with RV and Car Parking - 61295UT floor plan - Main Level

Optionally Finished Upper Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

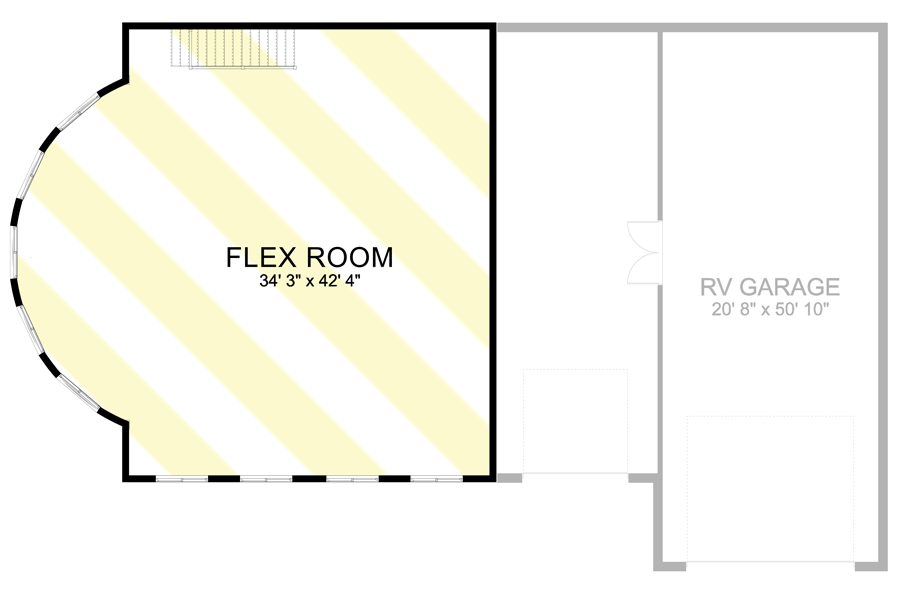

Car Enthusiast's Garage Plan with RV and Car Parking - 61295UT floor plan - Optionally Finished Upper Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 52' 8"
  • Max ridge height: 23' 8"

Garage

  • Type: RV Garage, Detached
  • Area: 3688 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" RV Garage 18' 1"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Car Enthusiast's Garage Plan with RV and Car Parking

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • PDF - Unlimited Build $825
  • 5 Sets + PDF $1,025
  • CAD - Single-Build $1,150
  • CAD Unlimited + PDF $1,275
  • View all purchase option online

About This Plan

  • Fit up to 6 cars parked tandem-style in the main portion of this car-enthusiast's house plan (two each behind 10' by 8' doors; two remaining ones behind the 10' by 10' door) and an RV behind the 16' by 14' door on the right.
  • Doors inside give you access from the RV bay to the car part.
  • Stairs running along the back take you to a wide-open flex room above.

Floor Plans

  • Main Level

  • Optionally Finished Upper Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 52' 8"
  • Max ridge height: 23' 8"

Garage

  • Type: RV Garage, Detached
  • Area: 3688 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" RV Garage 18' 1"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Stick And Truss
