Plan 20128GA

Carriage House Apartment with RV Garage

Heated S.F.
843
Beds
1
Baths
1
Stories
2
Cars
3- 4

Floor Plan

Plan 20128GA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 20128GA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

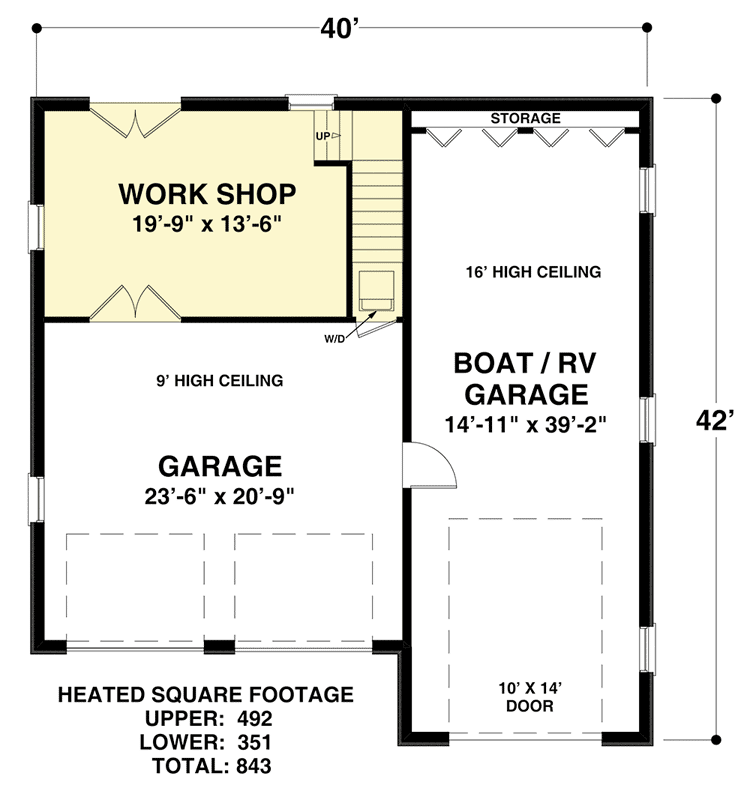

Plan 20128GA: Carriage House Apartment with RV Garage - Floor Plan - Main Level - Carriage

2nd Floor

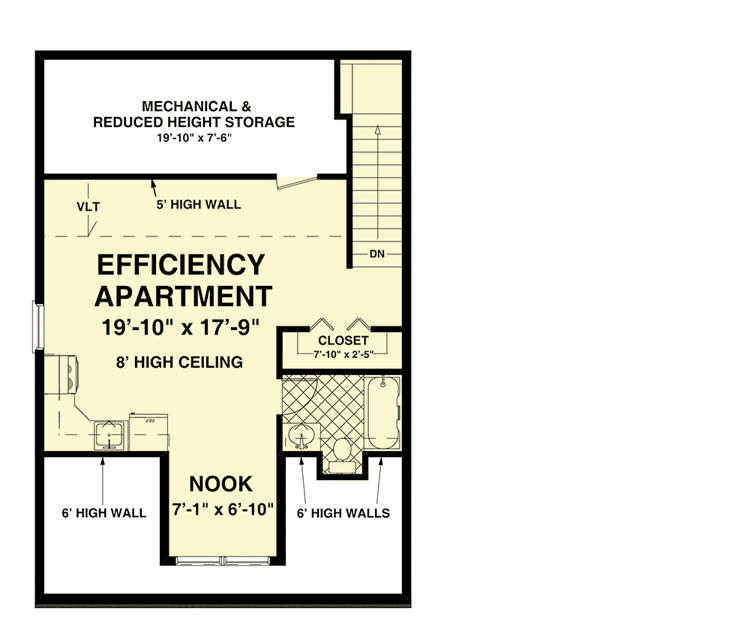

Plan 20128GA: Carriage House Apartment with RV Garage - Floor Plan - 2nd Floor - Carriage

Plan Details

  • With a big work shop area and a 39' deep RV garage, this Carriage house apartment has a lot to offer.
  • There's even a handy washer/dryer closet on the garage floor.
  • Upstairs, the efficiency apartment is a large studio that feels spacious.
  • There's a big walk-in closet and an L-shaped kitchen area.
  • Dine in the nook with a double window to brighten the area.
  • The full bathroom serves the apartment well.

What's Included

  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

843 sq. ft.

1st Floor

351 sq. ft.

2nd Floor

492 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Garage

Type

Attached, RV Garage

Area

1075 sq. ft.

Count

3 or 4 Cars

Entry Location

Front

Ceiling Heights

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Carriage

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

843 sq. ft.

1st Floor

351 sq. ft.

2nd Floor

492 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Garage

Type

Attached, RV Garage

Area

1075 sq. ft.

Count

3 or 4 Cars

Entry Location

Front

Ceiling Heights

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Carriage

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs
