Plan 810003RBT
Carriage House Plan with 1-Bed Apartment
Heated S.F.
1,196
Beds
1
Baths
1.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details

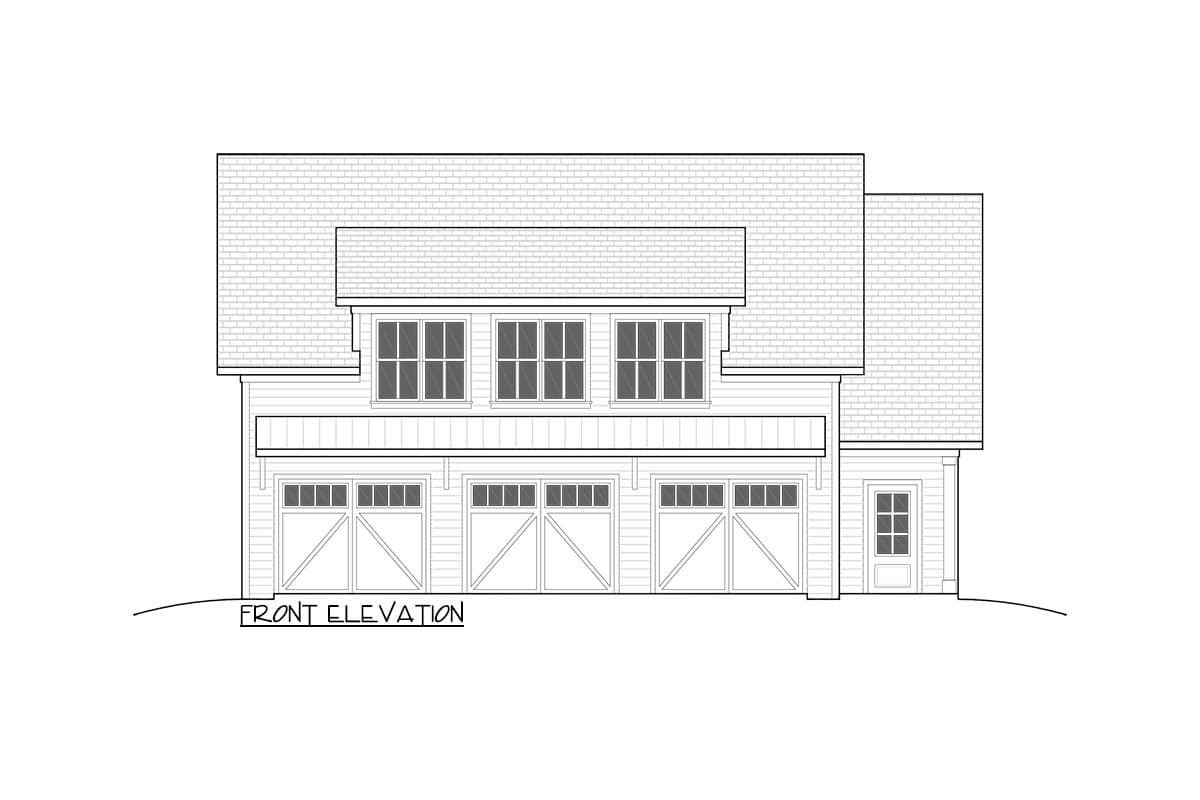

  • With a charming and rustic exterior, this Carriage house plan delivers 3 barn-like garage doors on the front elevation.
  • To the right of the garage, a front porch welcomes you into a foyer with a coat closet and staircase that guides you to the second level.
  • The living room and kitchen are open to one another with a counter peninsula providing seating for two.
  • A laundry room is conveniently included in the design and a flexible space next to the living room can be used as a dining area or home office.
  • The bedroom includes a sitting nook, along with a 3/4 bath and walk-in closet.
What's Included
This house plan contains the following:
  • Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, Abbreviations, + Materials Legend
  • Foundation Plan, Foundation Plan Notes, Wall Type Legend, Roof Plan, + General Roof Plan Notes
  • Main Level Floor Plan, Upper Level Floor Plan, Wall Type Legend, + Interior Kitchen Elevations

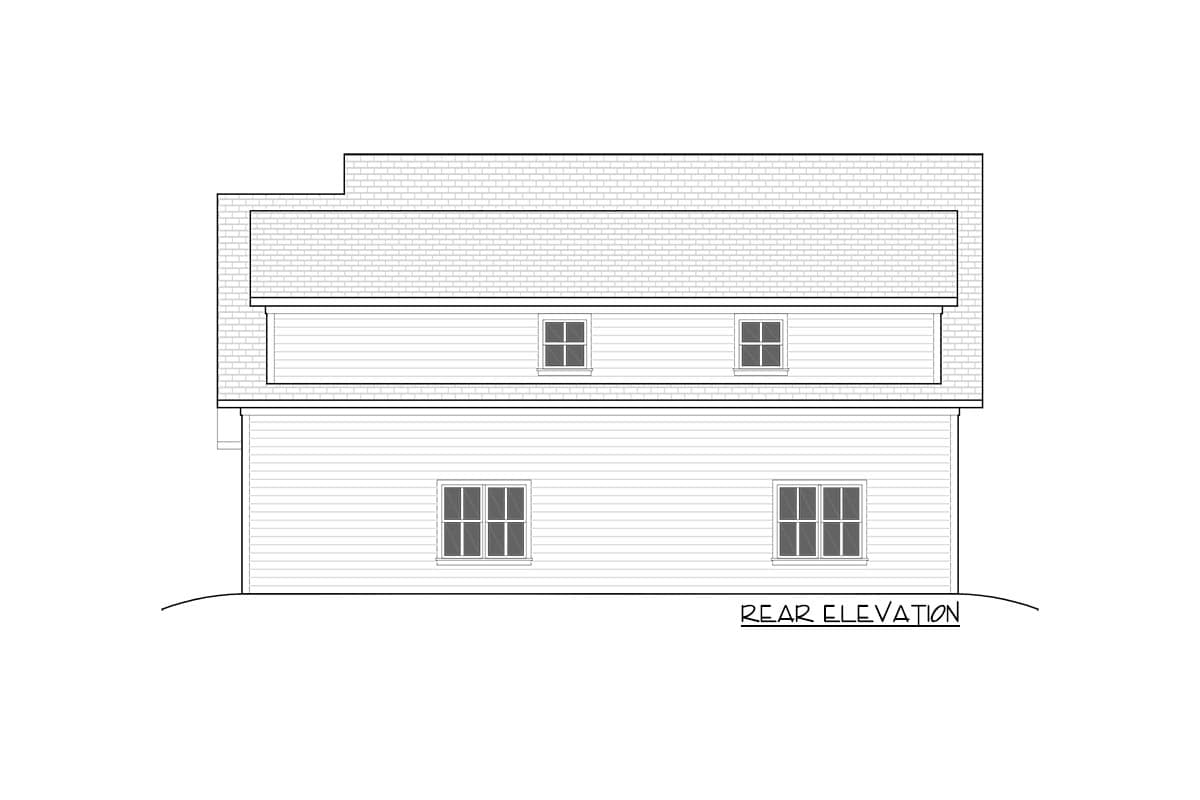

  • Four Exterior Elevations, General Elevation Notes
  • Electrical Lighting Plans, Electrical Legend, + Electrical Notes
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Carriage House Plan with 1-Bed Apartment

  • 1,196

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

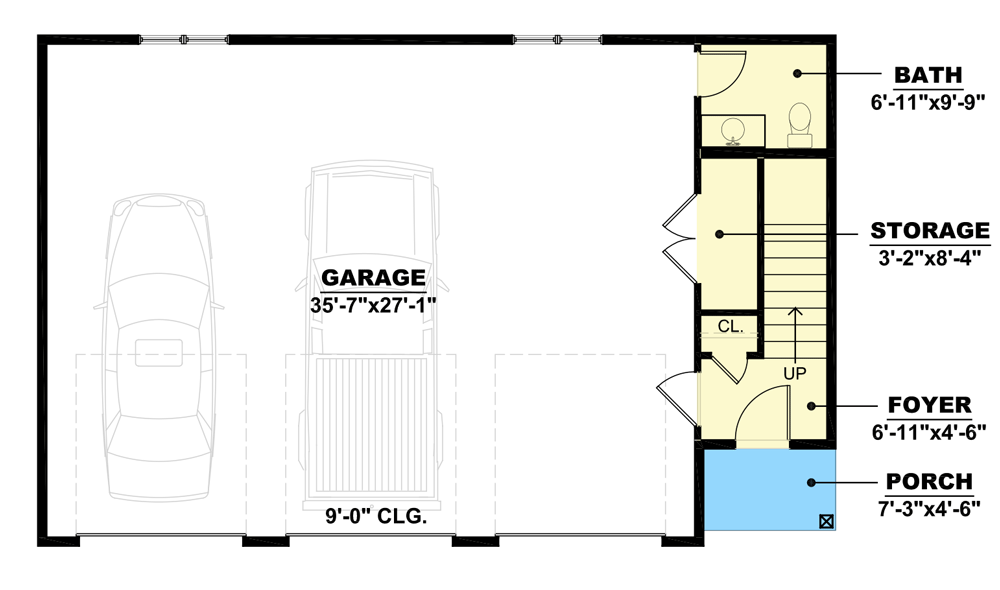

  • Main Level

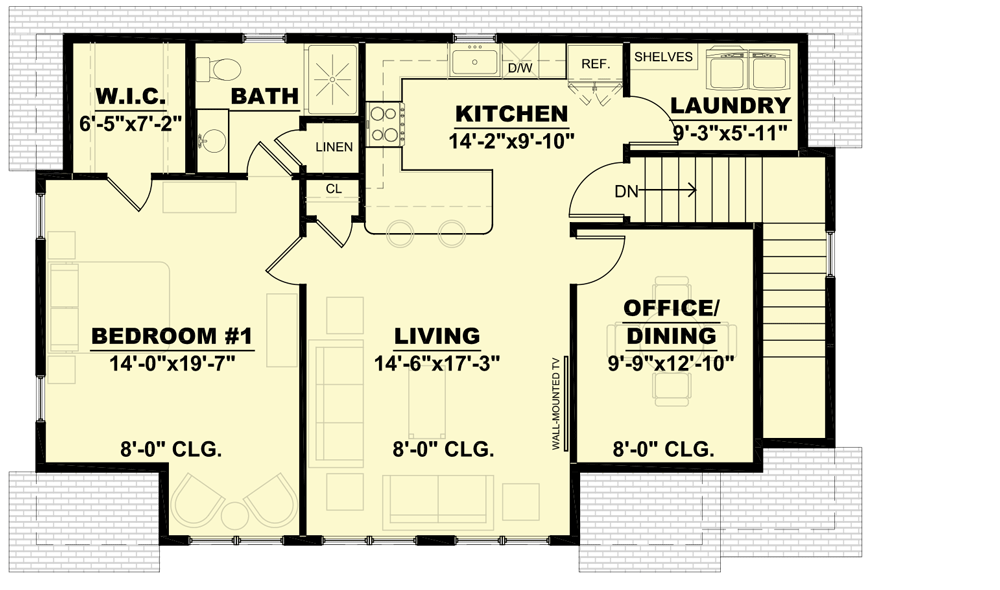

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,196 sq. ft.
  • 1st Floor: 144 sq. ft.
  • 2nd Floor: 1,052 sq. ft.

Dimensions

  • Width: 43' 9"
  • Depth: 28' 0"
  • Max ridge height: 27' 10"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Area: 1042 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Carriage House Plan with 1-Bed Apartment

  • 1,196

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Carriage House Plan with 1-Bed Apartment

  • 1,196

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,196 sq. ft.
  • 1st Floor: 144 sq. ft.
  • 2nd Floor: 1,052 sq. ft.

Dimensions

  • Width: 43' 9"
  • Depth: 28' 0"
  • Max ridge height: 27' 10"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Area: 1042 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12

    Main Level

    2nd Floor
