Carriage House Plan with 294 Sq Ft Loft Above 471 Sq Ft 2-Car Garage
Heated S.F.
294
Baths
0.5
Stories
2
Cars
2
What's Included
Plan Details
  • This carriage house plan gives you a 294 square foot loft above a 2-car 471 square foot garage with a 16' by 8' overhead door.
  • This plan is perfect for extra storage, a backyard office or a man cave/she shed.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in building them. Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included
  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Carriage House Plan with 294 Sq Ft Loft Above 471 Sq Ft 2-Car Garage

  • 294

    Heated s.f.

  • Beds

  • 0.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

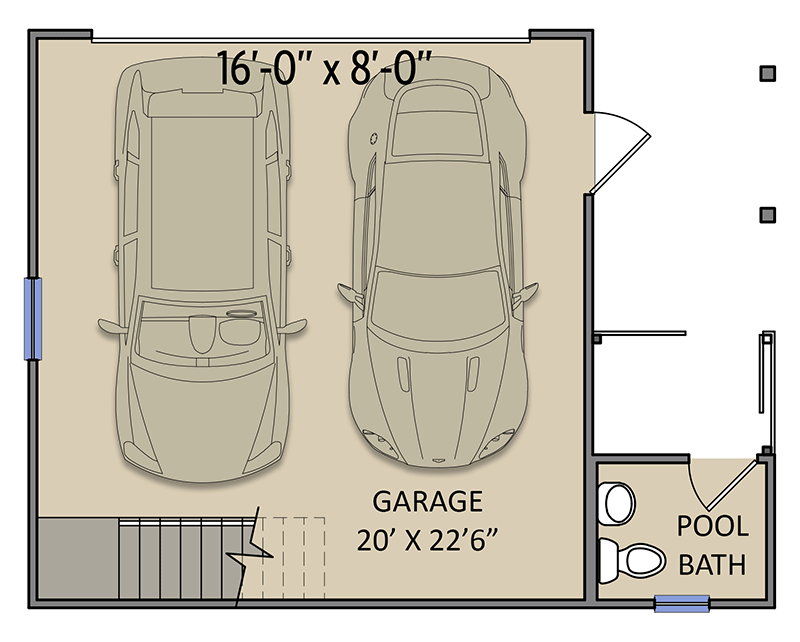

  • Main Level

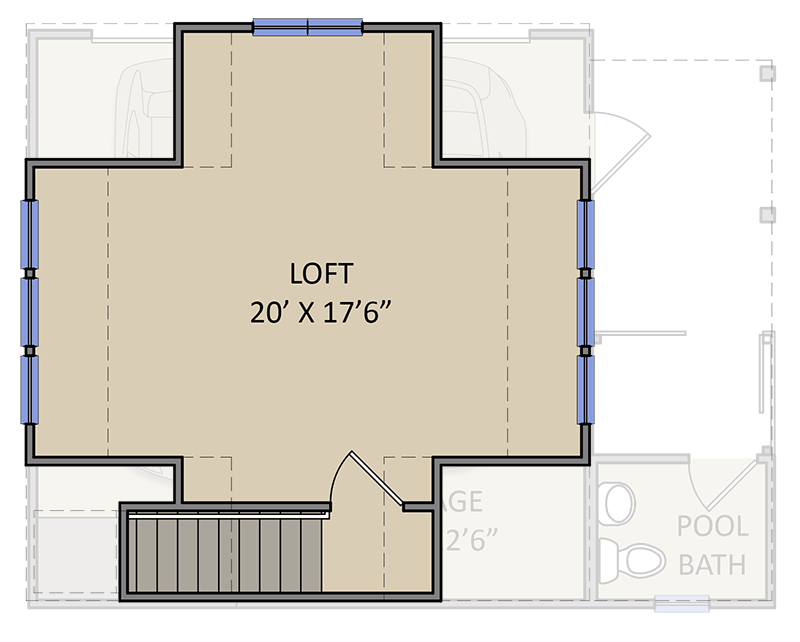

  • 2nd Floor
