Plan 20055GA

Carriage House Plan with Elbow Room

792 1 1 2 2
Pageloader

Carriage House Plan with Elbow Room

Plan 20055GA

  • 792

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 2-car carriage house plan features 792 sq. ft. of living quarters above. With siding exterior and decorative details, this plan is reminiscent of a country barn.
  • It would be perfect temporary quarters during construction of your permanent home or it could serve as an in-law apartment, nanny quarters, college student apartment, etc.
  • This design features an eat-in kitchen area, a spacious family room, a bathroom and a bedroom with both a clothes closet and storage closet. Two more closets, as well as an oversized pantry, provide maximum storage in minimum space. Laundry appliances could be positioned in the garage adjacent to the mechanical area.
  • A shady covered porch is perfect for relaxing with friends. We have shown an outdoor fireplace in our rendering to help you plan your recreational space.
  • The garage doors are 7' high x 9' wide.
  • Related Plans: Finish the second level later and save money with 20052GA.
  • Need a house plan to match? See house plan 20101GA.

Each plan set includes the following:

  •  Digital exterior rendering cover page
  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

Floor Plan

Plan details



Carriage House Plan with Elbow Room

  • 792

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $895
  • 5 Sets $945
  • 8 Sets $995
  • Reproducible Set $1,145
  • CAD $1,295
  • PDF - multi-use $1,345
  • CAD - multi-use $1,695
  • View all purchase option online

About This Plan

  • This 2-car carriage house plan features 792 sq. ft. of living quarters above. With siding exterior and decorative details, this plan is reminiscent of a country barn.
  • It would be perfect temporary quarters during construction of your permanent home or it could serve as an in-law apartment, nanny quarters, college student apartment, etc.
  • This design features an eat-in kitchen area, a spacious family room, a bathroom and a bedroom with both a clothes closet and storage closet. Two more closets, as well as an oversized pantry, provide maximum storage in minimum space. Laundry appliances could be positioned in the garage adjacent to the mechanical area.
  • A shady covered porch is perfect for relaxing with friends. We have shown an outdoor fireplace in our rendering to help you plan your recreational space.
  • The garage doors are 7' high x 9' wide.
  • Related Plans: Finish the second level later and save money with 20052GA.
  • Need a house plan to match? See house plan 20101GA.

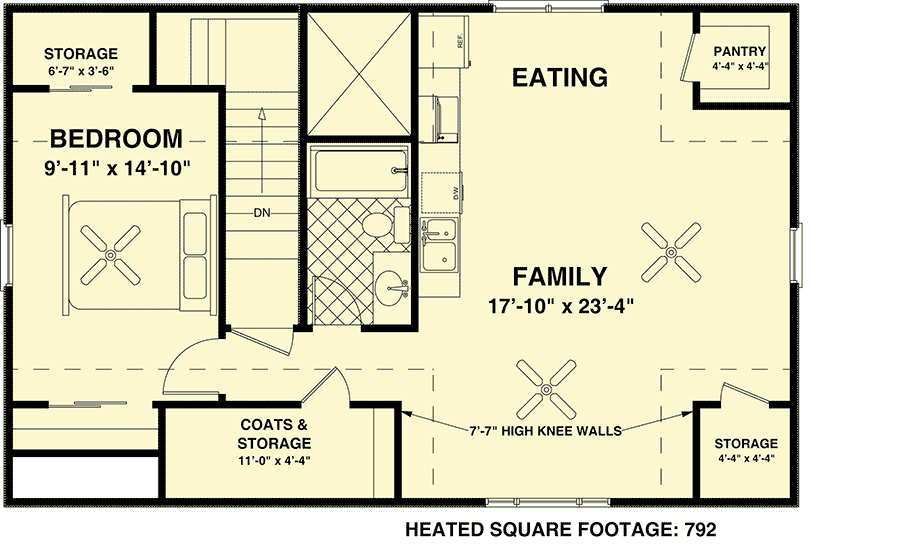

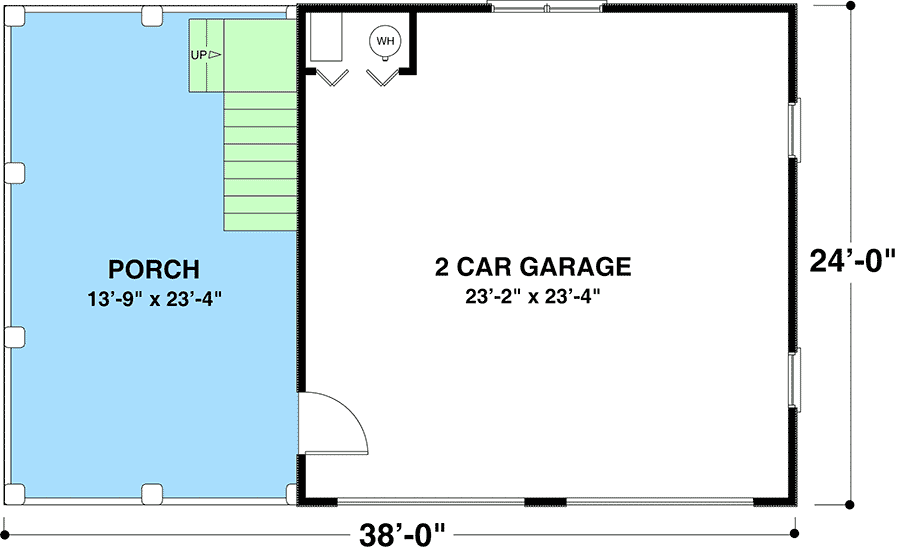

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 792 sq. ft.
  • 1st Floor: 792 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 7"

Garage

  • Type: Detached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
