Plan 9824SW
Carriage House Plan With Shed Dormer
Heated S.F.
240
Baths
1
Stories
2
Cars
2
What's Included
Plan Details

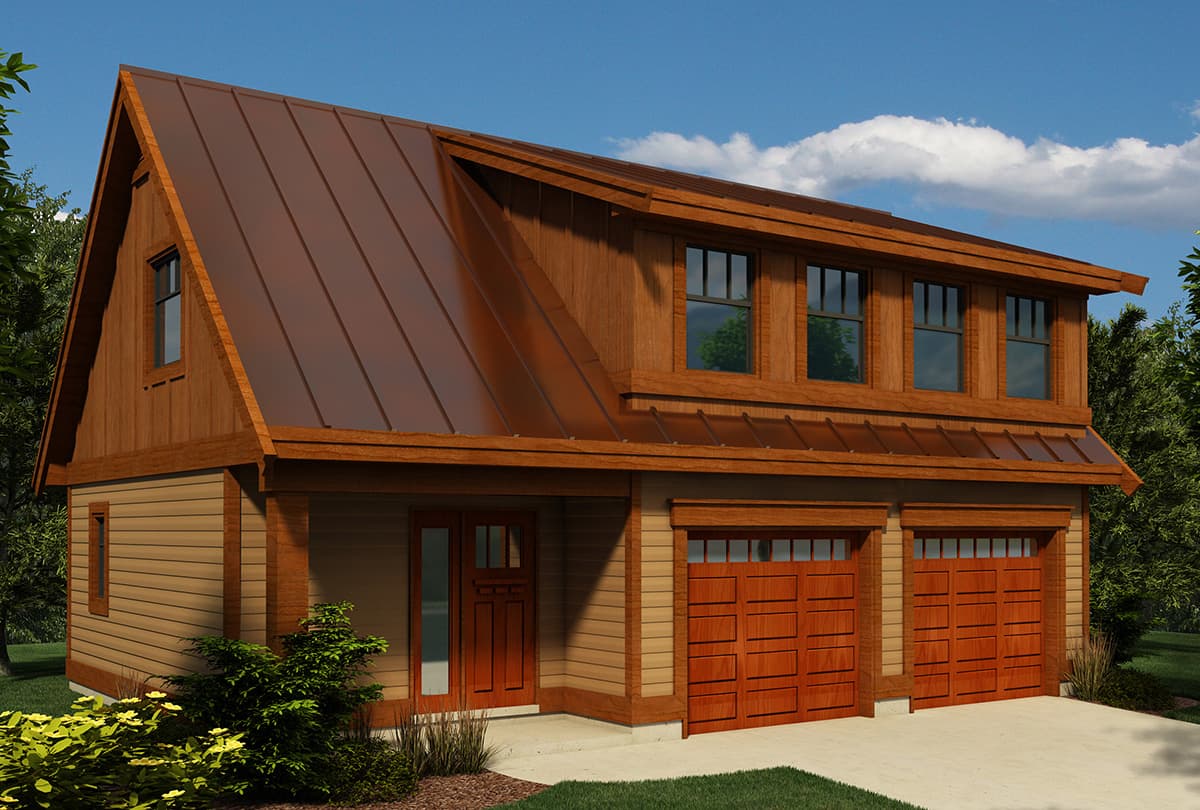

  • This two story two car garage with space above has classic curb appeal with the added benefit of maintenance-resistant exterior cladding and sleek metal roofing.
  • The covered front porch opens into a spacious entry with an impressive two-story vaulted ceiling.
  • The rear bathroom portion of the first level contains a neo-angled shower, linen storage, stacking washer / dryer and the hot water heater.
  • The unfinished second level with vaulted ceilings and ample window wall will easily transform this space into a liveable apartment, exercise room or home office. A balcony railing provides an open view to the entry below.
  • Plans are designed with a concrete slab foundation plan.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Carriage House Plan With Shed Dormer

  • 240

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 240 sq. ft.
  • 1st Floor: 240 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 24' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5-Apr on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Carriage House Plan With Shed Dormer

  • 240

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Carriage House Plan With Shed Dormer

  • 240

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 240 sq. ft.
  • 1st Floor: 240 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 24' 0"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5-Apr on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
