Plan 62592DJ Carriage House with Vaulted Ceilings

638 1 1 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Carriage House with Vaulted Ceilings

Plan 62592DJ

  • 638

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 3

    Cars

  • This carriage house plan gives you an apartment-style loft with full-height 8' second level walls and cathedral ceilings.
  • The main floor gives you parking for 3 cars, each with their own garage door.
  • The roof has a 12:12 pitch.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

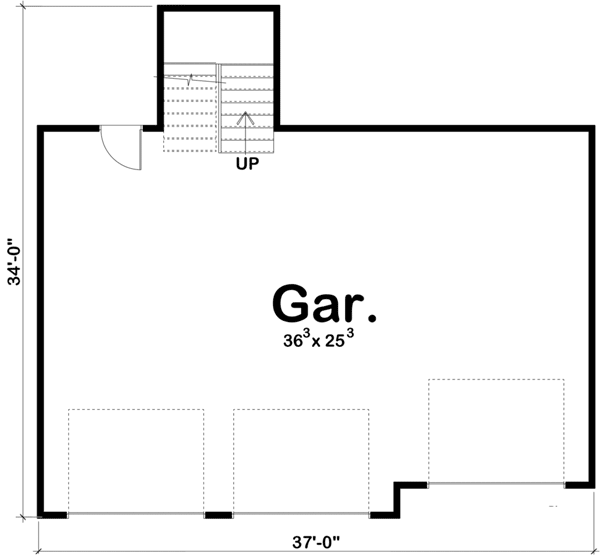

Carriage House with Vaulted Ceilings - 62592DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

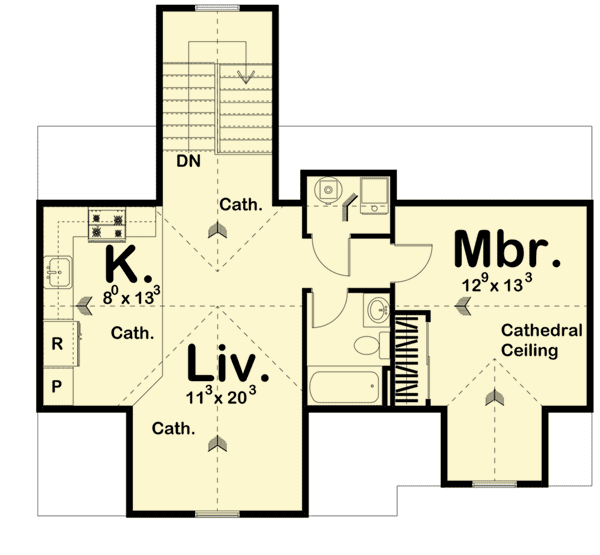

Carriage House with Vaulted Ceilings - 62592DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 638 sq. ft.
  • 2nd Floor: 638 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 34' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Detached
  • Area: 1000 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Carriage House with Vaulted Ceilings

  • 638

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets + PDF $1,050
  • CAD + PDF - Single-Build $1,300
  • PDF - Unlimited Build $1,300
  • CAD Unlimited + PDF $1,800
  • View all purchase option online

About This Plan

  • This carriage house plan gives you an apartment-style loft with full-height 8' second level walls and cathedral ceilings.
  • The main floor gives you parking for 3 cars, each with their own garage door.
  • The roof has a 12:12 pitch.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 638 sq. ft.
  • 2nd Floor: 638 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 0"
  • Depth: 34' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Detached
  • Area: 1000 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 62592DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62592DJ
|
