Plan 61489UT

Casita with 2-Car Garage and Finished Flex Space - 1159 Sq Ft

Heated S.F.
1,159
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 61489UT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 61489UT

M-F 9am-5pm EST |

1-203-761-8500

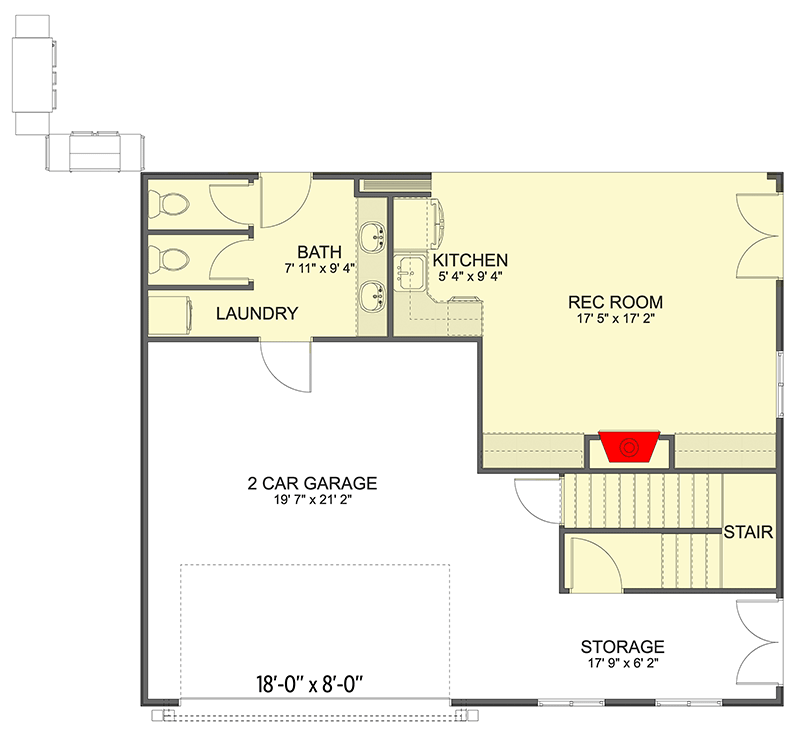

Main Level

Plan 61489UT: Casita with 2-Car Garage and Finished Flex Space - 1159 Sq Ft - Floor Plan - Main Level - Contemporary, Vacation

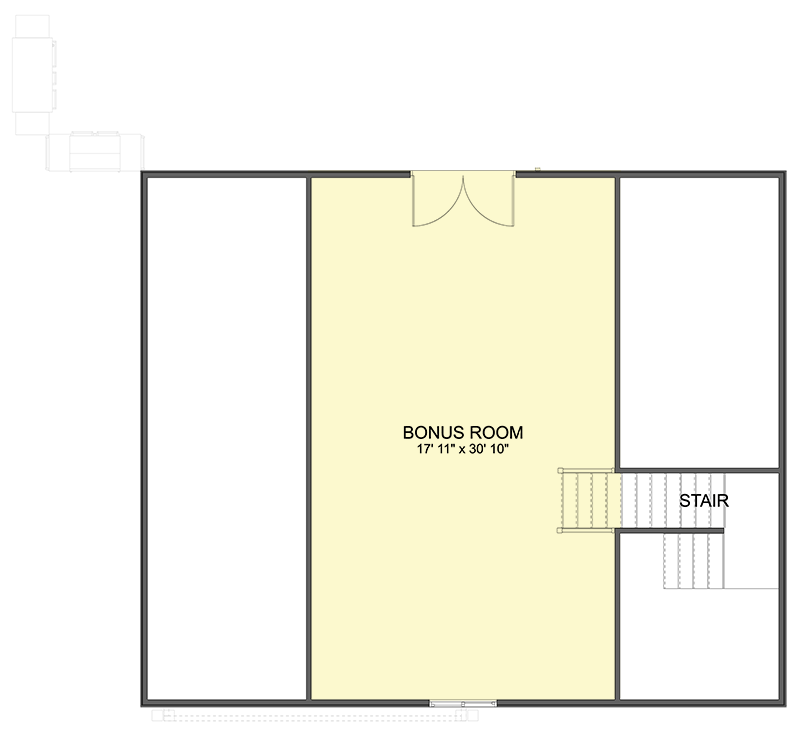

2nd Floor

Plan 61489UT: Casita with 2-Car Garage and Finished Flex Space - 1159 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Vacation

Plan Details

  • This casita gives you 1,159 square feet of living space with a kitchenette and rec space on the ground floor and a large flex space on the second floor.

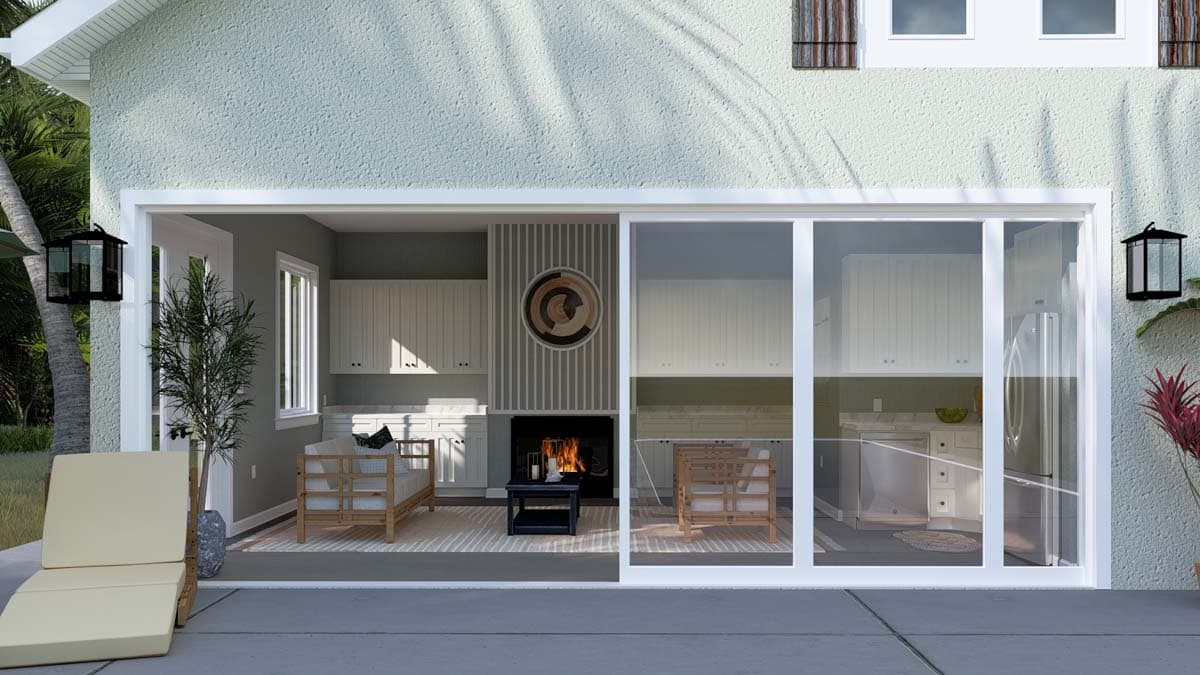

  • Sliding doors open to the outside giving you indoor-outdoor living.
  • There is a large storage area and room for 2 cars set behind a single 18' by 8' overhead door.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

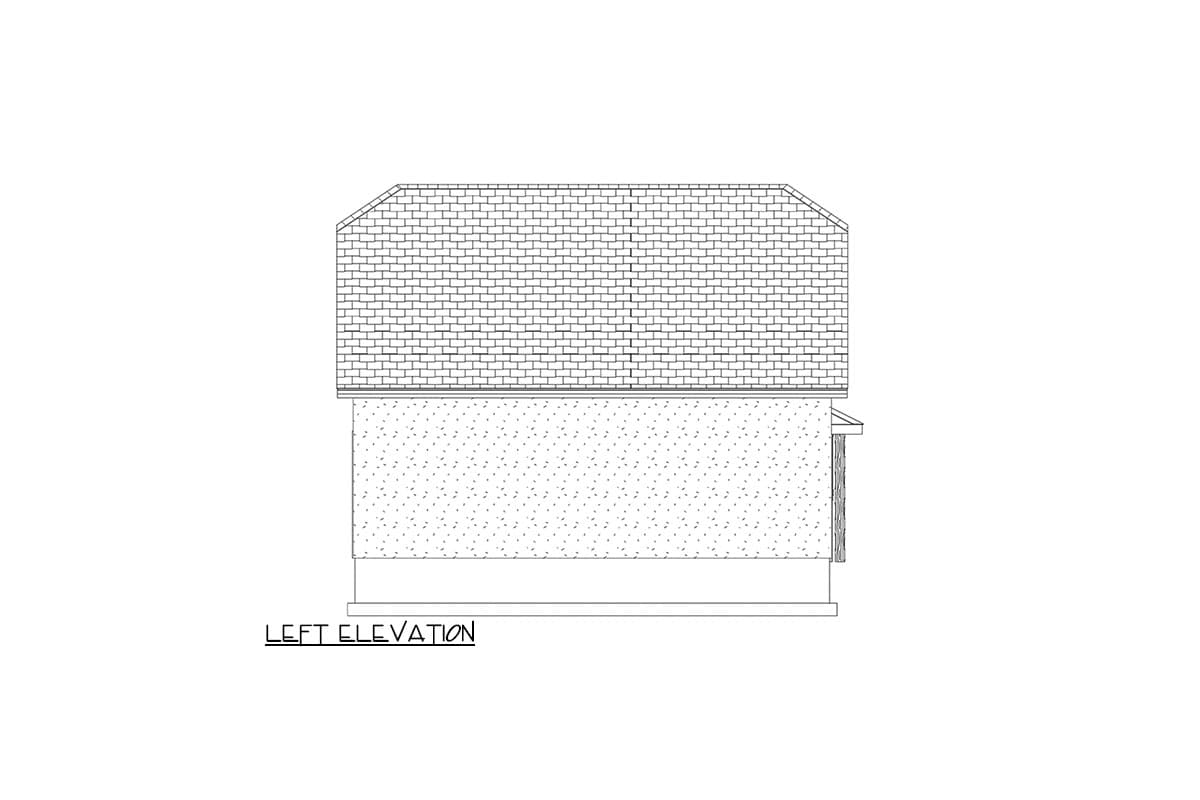

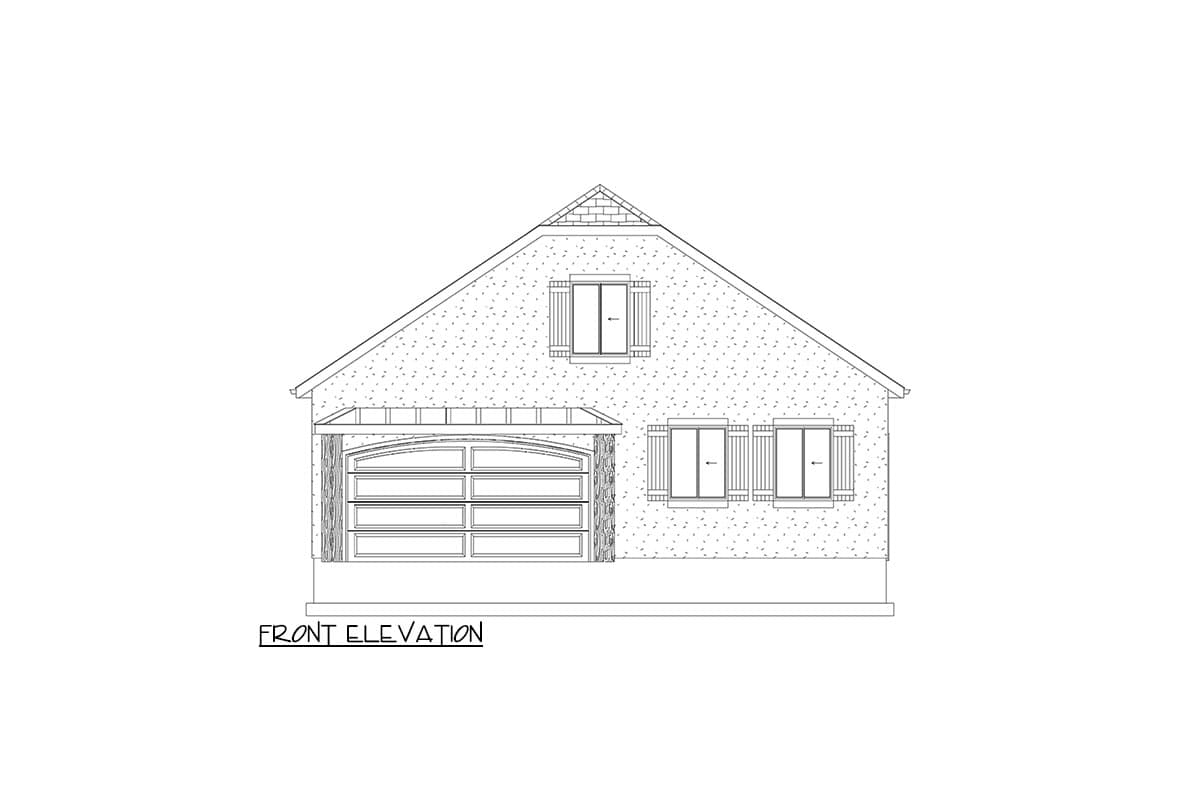

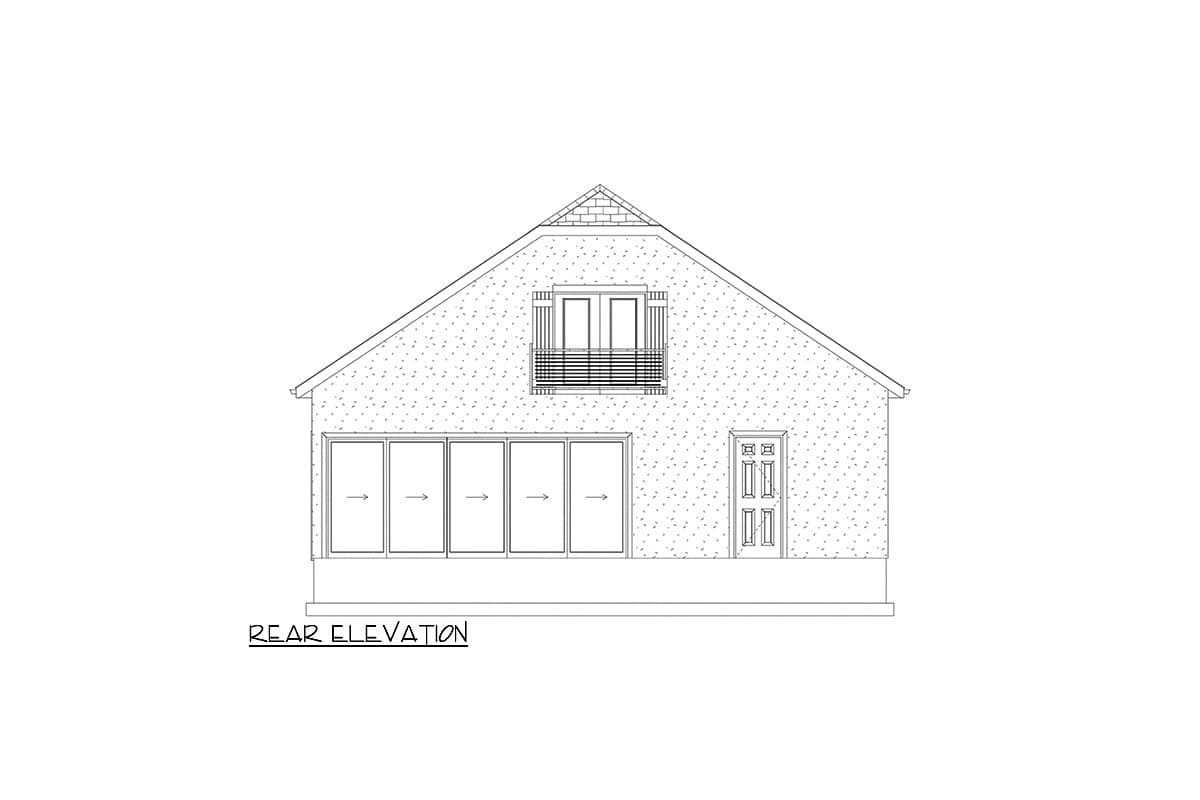

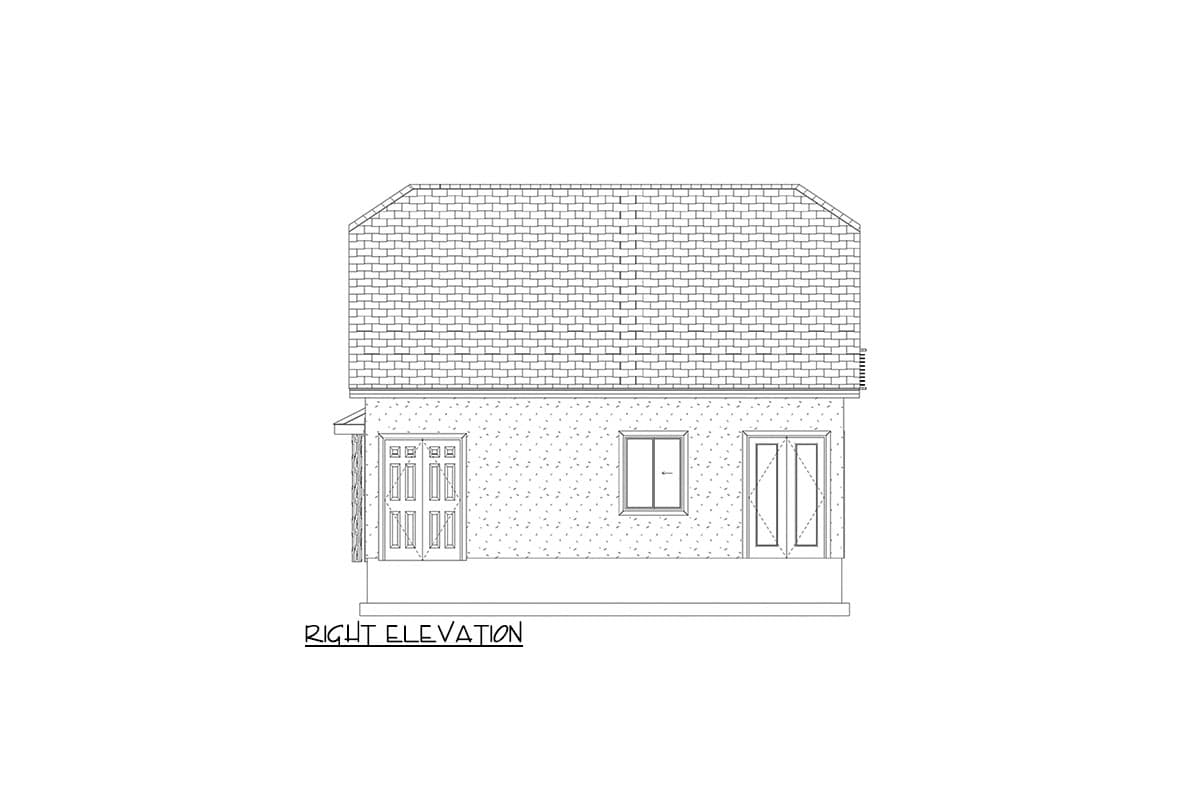

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,159 sq. ft.

1st Floor

592 sq. ft.

2nd Floor

567 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

31' 6"

Max Ridge Height

24' 9"

Garage

Type

Detached

Area

605 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

Vacation

Special Features

Game/Rec Room

Laundry - Main Level

Optionally Finished Bonus Room

Plan Collections

ADU

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,159 sq. ft.

1st Floor

592 sq. ft.

2nd Floor

567 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

31' 6"

Max Ridge Height

24' 9"

Garage

Type

Detached

Area

605 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

Vacation

Special Features

Game/Rec Room

Laundry - Main Level

Optionally Finished Bonus Room

Plan Collections

ADU

Photo Gallery
