Plan 39104ST

Charm and Beauty

Heated S.F.
2,027
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 39104ST

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 39104ST

M-F 9am-5pm EST |

1-203-761-8500

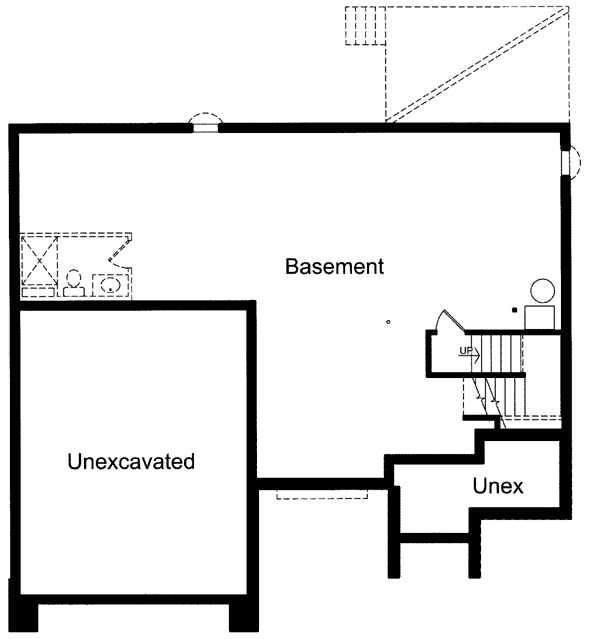

Basement

Plan 39104ST: Charm and Beauty - Floor Plan - Basement - Traditional

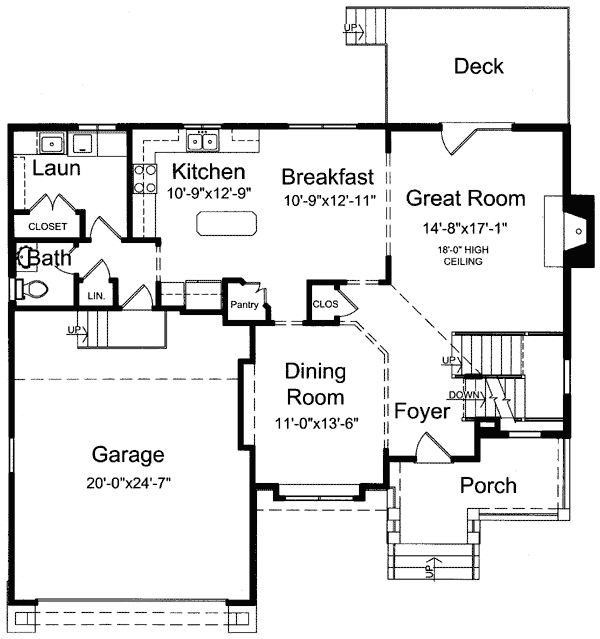

Main Level

Plan 39104ST: Charm and Beauty - Floor Plan - Main Level - Traditional

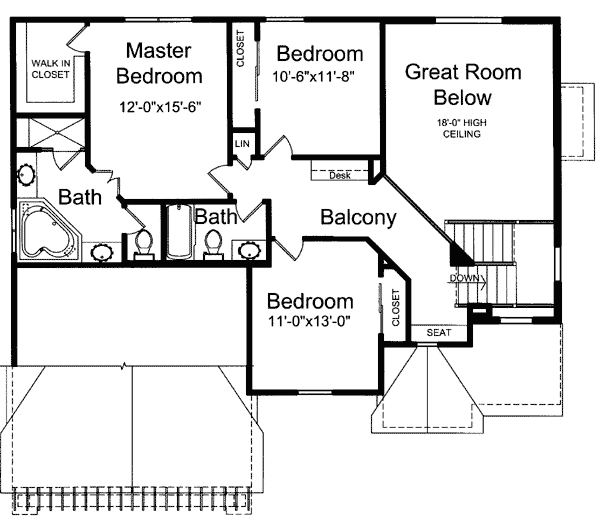

2nd Floor

Plan 39104ST: Charm and Beauty - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Charm and beauty are two words that come to mind when you see this wonderful two-story home plan for the first time. When entering the foyer, enjoy the views to the formal dining room, great room and "U" shaped staircase with 9' ceiling height.
  • The spacious breakfast room and kitchen with an island and corner pantry will remind you of the most lovely of homes.
  • Conveniently located to the garage, the laundry room and half bath create an orderly family entry. A second floor balcony that overlooks the great room will delight your senses and the master bedroom suite will pamper the homeowner with the whirlpool tub, dual vanities, shower enclosure and large walk-in closet.
  • Two additional bedrooms complete this charming house plan.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,027 sq. ft.

1st Floor

1,117 sq. ft.

2nd Floor

910 sq. ft.

Basement Unfinished

1,117 sq. ft.

Deck

153 sq. ft.

Porch, Front

106 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

49' 6"

Depth

43' 0"

Max Ridge Height

31' 9"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Formal Dining

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,027 sq. ft.

1st Floor

1,117 sq. ft.

2nd Floor

910 sq. ft.

Basement Unfinished

1,117 sq. ft.

Deck

153 sq. ft.

Porch, Front

106 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

49' 6"

Depth

43' 0"

Max Ridge Height

31' 9"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Formal Dining

Master Suite - Upstairs
