Plan 95362RW

Charming 1 Bed 1 Bath Garage Apartment House Plan with 660 Sq Ft

Heated S.F.
660
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 95362RW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 95362RW

M-F 9am-5pm EST |

1-203-761-8500

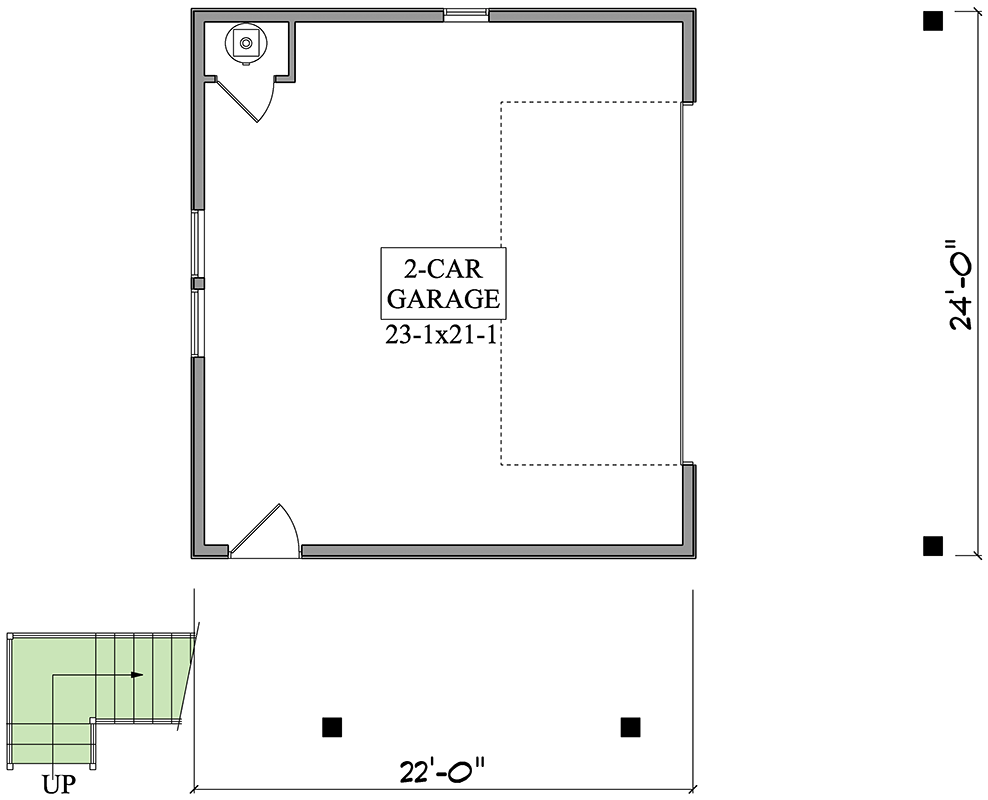

Main Level

Plan 95362RW: Charming 1 Bed 1 Bath Garage Apartment House Plan with 660 Sq Ft - Floor Plan - Main Level - Craftsman, Traditional

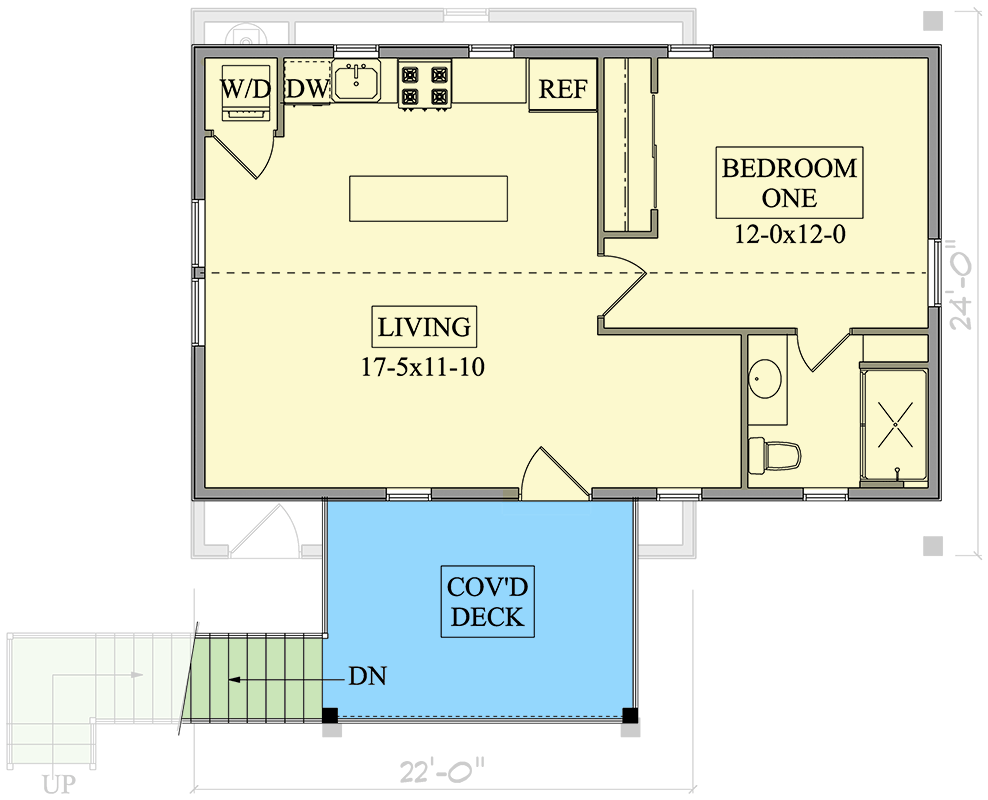

2nd Floor

Plan 95362RW: Charming 1 Bed 1 Bath Garage Apartment House Plan with 660 Sq Ft - Floor Plan - 2nd Floor - Craftsman, Traditional

Plan Details

  • This charming 1-bedroom, 1-bathroom dwelling offers 660 sq. ft. of heated living space, complemented by a 2-car garage, all within a classic Craftsman exterior style.
  • The main living area flows effortlessly into the dining space and kitchen, creating an ideal environment for both everyday living and intimate gatherings, with a comfortable flow throughout.
  • The private primary bedroom offers a tranquil retreat with its own private bathroom.
  • Enjoy the outdoors from the expansive covered deck, perfect for morning coffee or evening relaxation, extending your living space into the fresh air.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

660 sq. ft.

2nd Floor

660 sq. ft.

Deck & Porch

140 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

33' 0"

Max Ridge Height

21' 6"

Garage

Area

528 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Architectural Style

Craftsman

Traditional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Attached Apartments

Square Footage Breakdown

Total Heated Area

660 sq. ft.

2nd Floor

660 sq. ft.

Deck & Porch

140 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

33' 0"

Max Ridge Height

21' 6"

Garage

Area

528 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Architectural Style

Craftsman

Traditional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Attached Apartments
