Plan 56429SM Charming 3-Bed Acadian Home Plan with Optional Bonus Room

2,702 3-4 2.5 - 3.5 1-2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Charming 3-Bed Acadian Home Plan with Optional Bonus Room

Plan 56429SM

  • 2,702

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This Acadian-Louisiana style house plan has a porch across the front supported by six columns. French doors are centered on the porch and open to the foyer.
  • The kitchen has a window over the sink, a huge walk-in pantry, a large island and decorative pine beams on the 11' ceiling.
  • The large family room has great views to the rear of the property and is open to the dining room and kitchen. A door opens to the back porch where thee are accommodations for a future outdoor kitchen.
  • A fabulous modern master suite has a tray ceiling. The bath has a huge walk-in shower behind the free-standing tub and huge master closet with island.
  • The 2-car side-entry garage opens to the rear porch and the mud room with a drop-off area. A barn door opens to reveal the laundry room with storage.
  • Stairs by the mud room lead to the bonus room with bath over the garage which giving you expansion possibilities.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

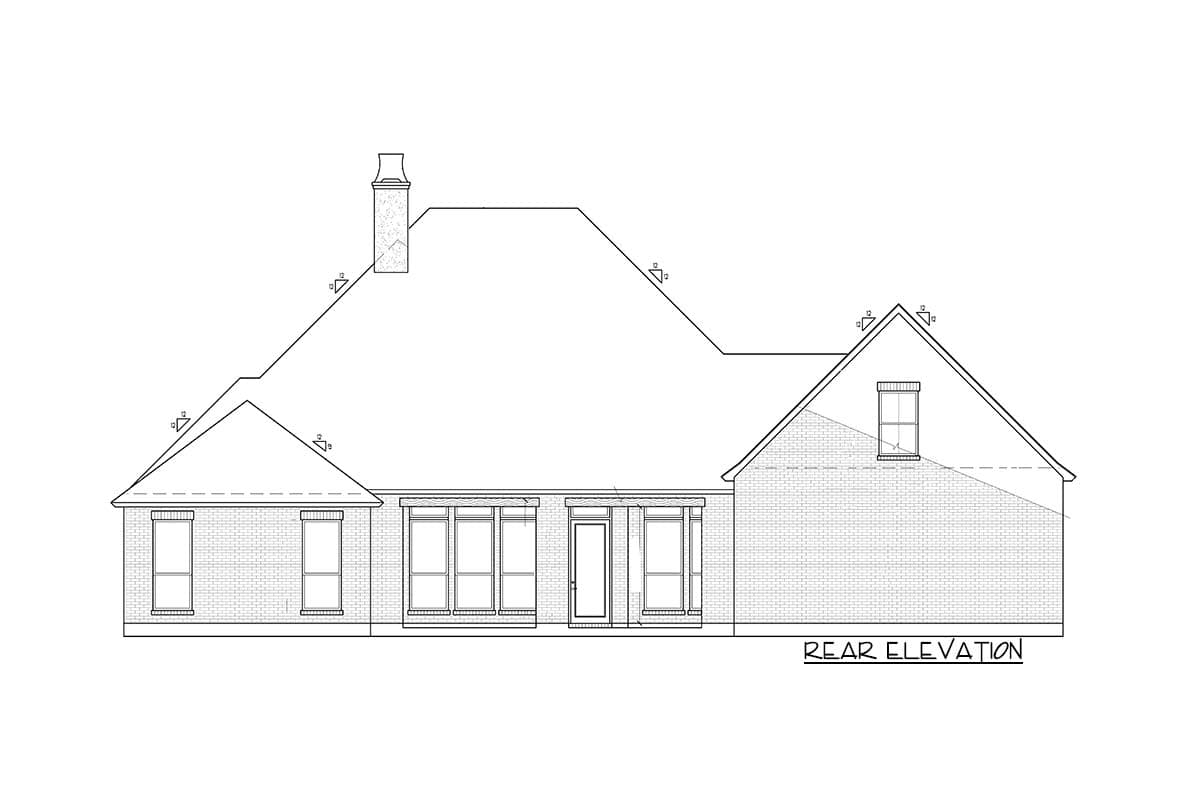

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

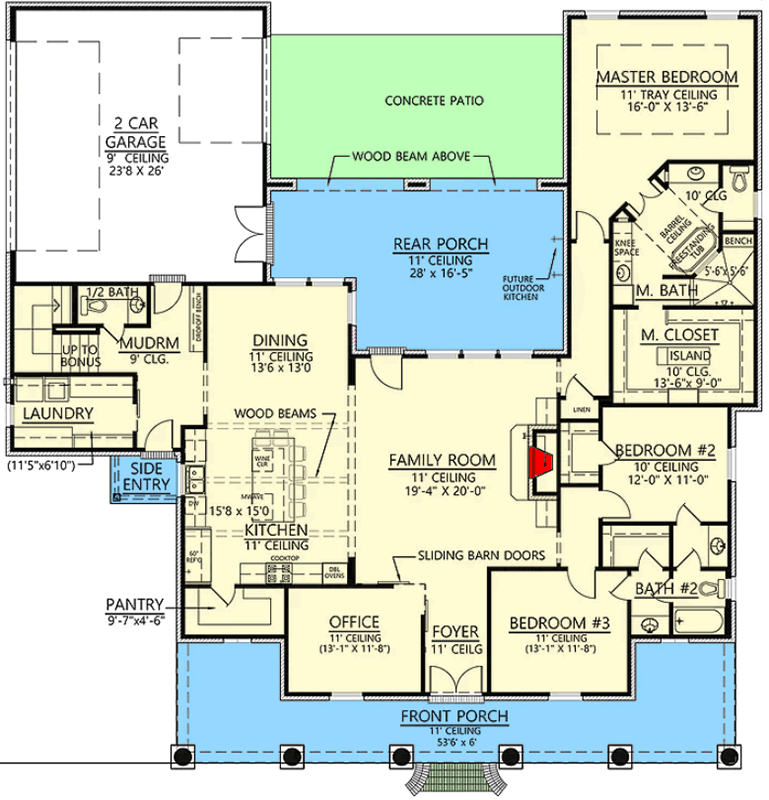

Charming 3-Bed Acadian Home Plan with Optional Bonus Room - 56429SM floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

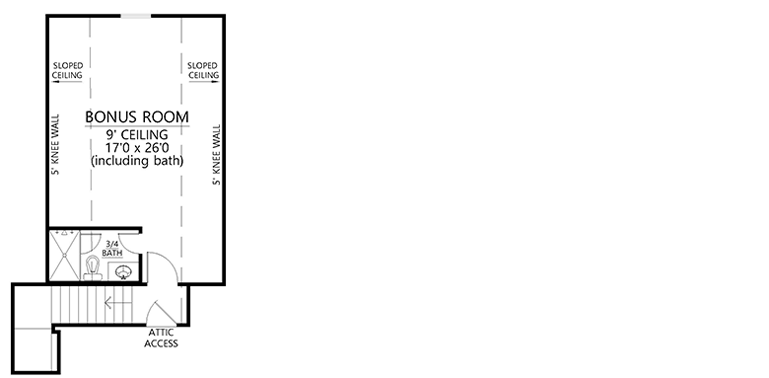

Charming 3-Bed Acadian Home Plan with Optional Bonus Room - 56429SM floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,702 sq. ft.
  • 1st Floor: 2,702 sq. ft.
  • Bonus: 494 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 72' 9"

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Charming 3-Bed Acadian Home Plan with Optional Bonus Room

  • 2,702

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,702 sq. ft.
  • 1st Floor: 2,702 sq. ft.

Dimensions

  • Width: 72' 4"
  • Depth: 72' 9"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"
