Charming 3-Bed Craftsman Home Plan with Second-Level Master

Plan 360023DK

  • 2,122

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This charming, 3-bedroom house plan features classic, craftsman design elements with tapered columns, timber frame gables, shake siding, and stone accents.
  • Bordering the foyer, sits your formal dining room and a coat closet across from a powder bath.
  • The open floor plan encourages entertaining and seating for three at the kitchen island provides a space for casual meals. An octagonal-shaped breakfast nook has access to the back patio, and a fireplace in the great room sits beneath a vaulted ceiling.
  • Retreat to your master bedroom upstairs which features a 5-fixture master bathroom and separate his and her closets. Down the hall, two bedrooms share a full bathroom and a second-level, laundry room adds convenience.
  • An arbor sits above the 2-car garage for an added element of design.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

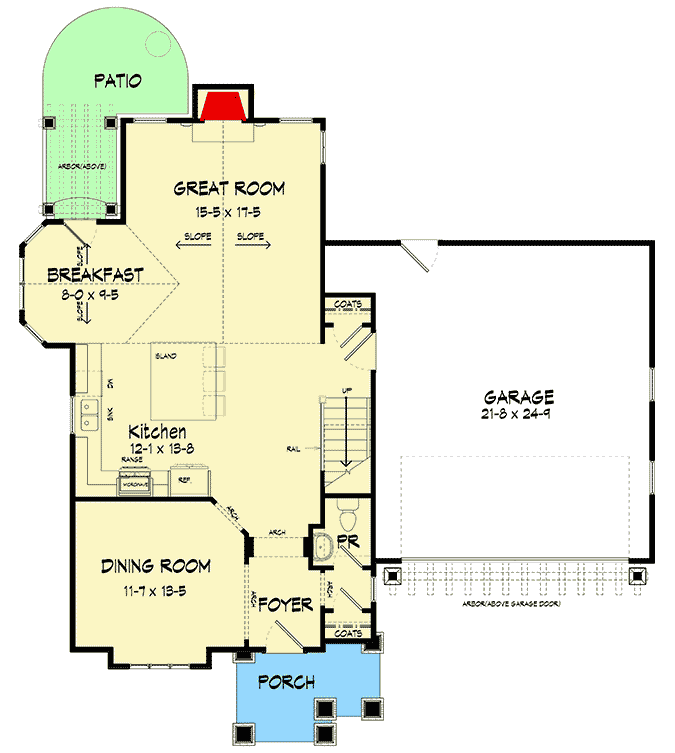

Charming 3-Bed Craftsman Home Plan with Second-Level Master - 360023DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

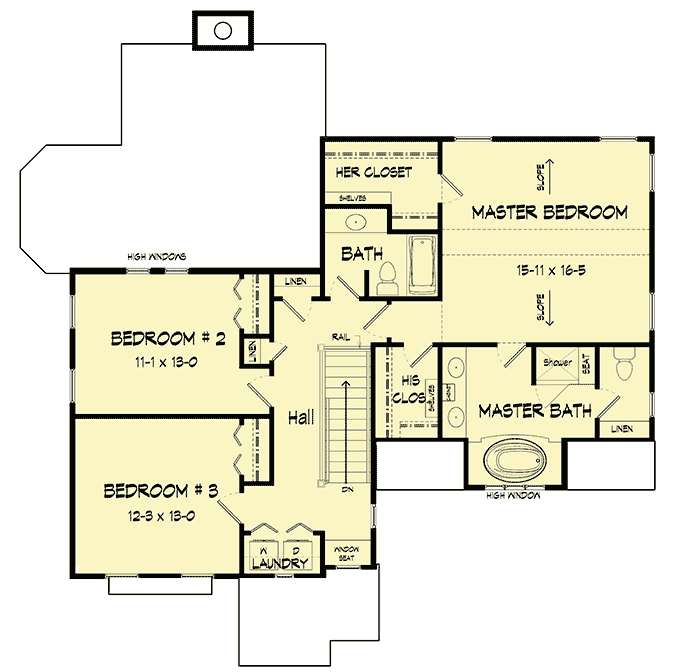

Charming 3-Bed Craftsman Home Plan with Second-Level Master - 360023DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,122 sq. ft.
  • 1st Floor: 977 sq. ft.
  • 2nd Floor: 1,145 sq. ft.
  • Porch, Rear: 129 sq. ft.
  • Porch, Front: 76 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 10"
  • Depth: 52' 2"
  • Max ridge height: 31' 5"

Garage

  • Type: Attached
  • Area: 574 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Charming 3-Bed Craftsman Home Plan with Second-Level Master

  • 2,122

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,122 sq. ft.
  • 1st Floor: 977 sq. ft.
  • 2nd Floor: 1,145 sq. ft.

Dimensions

  • Width: 50' 10"
  • Depth: 52' 2"
  • Max ridge height: 31' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 574 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
