Plan 51383MM

Charming 3-Bedroom Craftsman Farmhouse House Plan with Split Layout

Heated S.F.
1,800
Beds
3
Baths
2
Stories
1
Cars
2

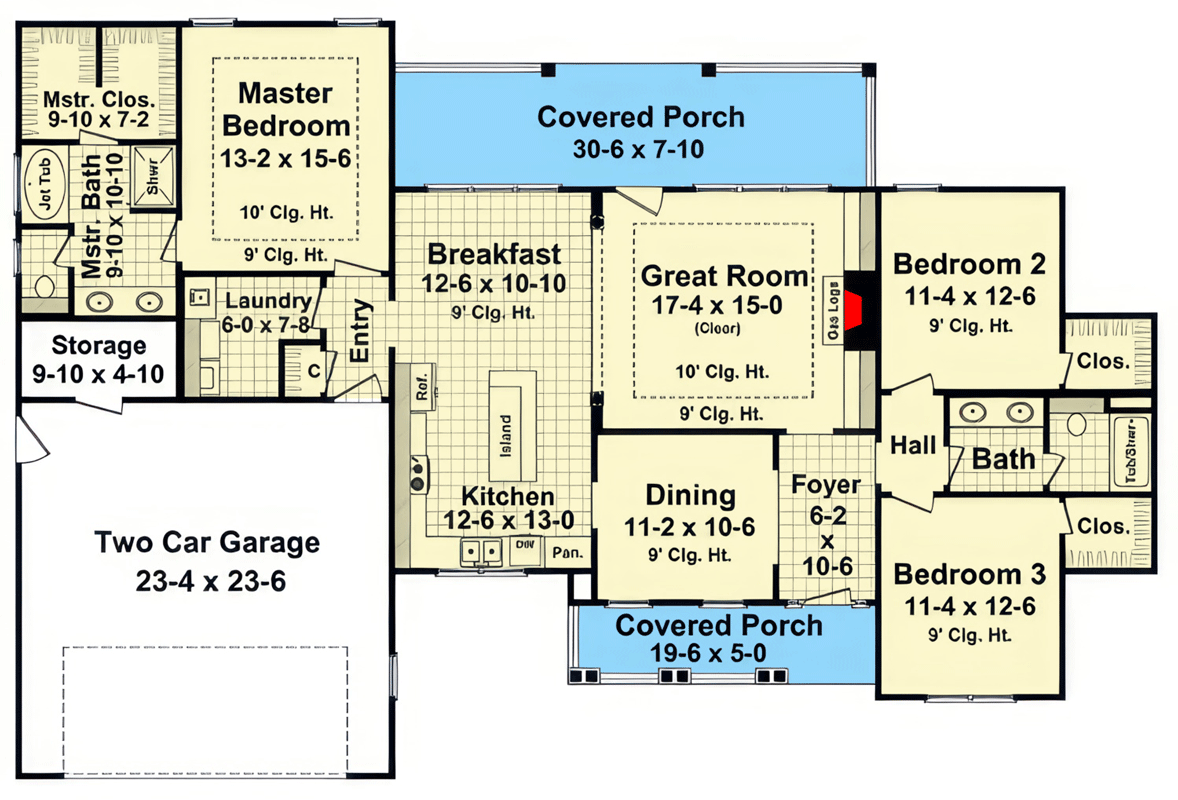

Floor Plan

Plan 51383MM

Floor Plan 1

Plan 51383MM

M-F 9am-5pm EST |

1-203-761-8500

Plan 51383MM: Charming 3-Bedroom Craftsman Farmhouse House Plan with Split Layout - Floor Plan - - Craftsman, Modern Farmhouse, Ranch

Plan Details

  • Boasting 1,800 finished sq ft, 3 bedrooms, 2 baths, and a 2-car garage, this charming Craftsman Modern Farmhouse house plan features a welcoming facade.
  • A welcoming front porch, adorned with stone accents and sturdy columns, leads into a thoughtfully designed layout featuring a formal dining area and a convenient mudroom.
  • The main living areas flow effortlessly, with a bright breakfast nook perfect for casual meals, complementing a dedicated formal dining space for entertaining.
  • The private primary bedroom suite is conveniently located, offering a tranquil retreat, while secondary bedrooms are thoughtfully split for enhanced privacy.
  • Enjoy outdoor living with both a generous 239 sq ft rear porch, ideal for al fresco dining, and an inviting 101 sq ft front porch for morning coffee.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

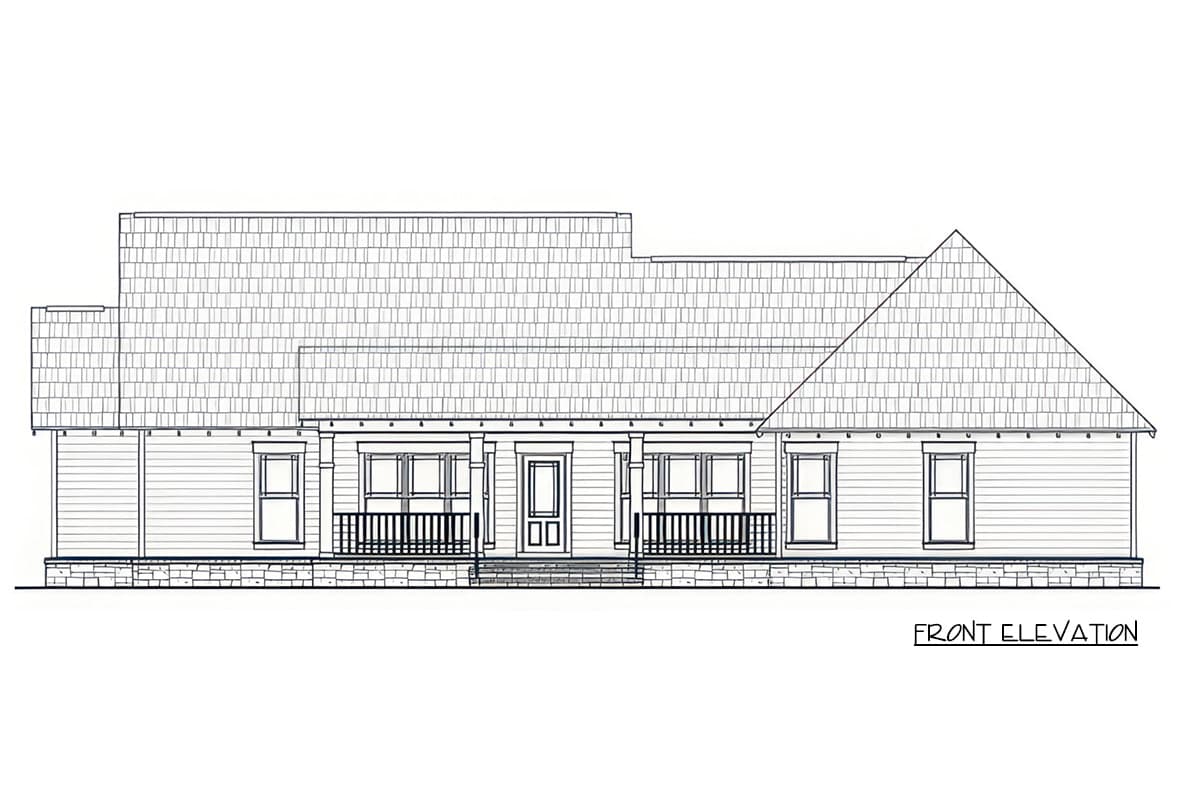

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,800 sq. ft.

Porch, Rear

239 sq. ft.

Porch, Front

101 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 4"

Depth

48' 0"

Max Ridge Height

22' 7"

Garage

Type

Standard

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,800 sq. ft.

Porch, Rear

239 sq. ft.

Porch, Front

101 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 4"

Depth

48' 0"

Max Ridge Height

22' 7"

Garage

Type

Standard

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
