Charming 3-Bedroom Southern Charmer House Plan with Split Beds
Heated S.F.
1,693
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This 3-bedroom house plan gives homeowners a smart layout provided in a cozy footprint, keeping budget in mind. The charming front elevation completes the design.
  • A hallway, just off the foyer, leads to two bedrooms separated by a full bath.
  • The eat-in kitchen and living room are open to one another, and the adjacent covered porch extends the living space to the out-of-doors.
  • Retreat to the rear-facing, master bedroom, which includes a spacious bathroom with a pass-through closet that provides access to the laundry room.
  • The forward-facing, double garage includes a storage room, and opens to a mudroom with a coat closet.
  • Related Plan: Save money with house plan 860021MCD which has a more rectangular footprint.
What's Included
  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming 3-Bedroom Southern Charmer House Plan with Split Beds

  • 1,693

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

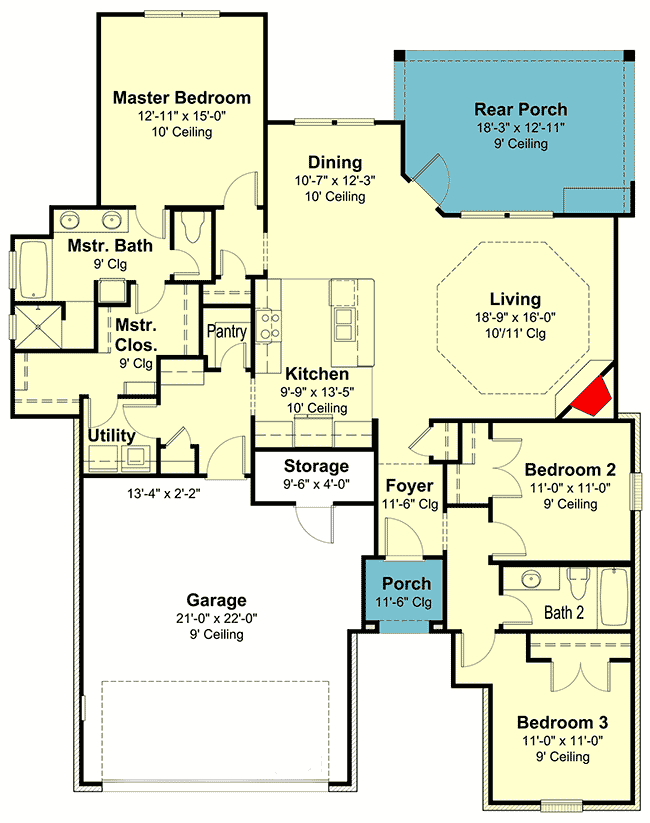

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,693 sq. ft.
  • 1st Floor: 1,693 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 63' 5"
  • Max ridge height: 26' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 594 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
