Plan 350143GH

Charming A-Frame Retreat with Vaulted Great Room

Name: Plan 350143GH: Charming A-Frame Retreat with Vaulted Great Room
Brand: Architectural Designs
SKU: 350143GH
Price: 1370.0 USD
Availability: InStock

Heated S.F.

1,611

Beds

Baths

2.5

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

Efficient 1,611 sq. ft. layout featuring 2 bedrooms, 2.5 baths, and an attached 2-car garage with 484 sq. ft. space in a rustic A-frame design.
Inviting open-concept entry leading to a cozy living room with stunning views, seamlessly connecting to the dining area and kitchen.
Functional and flowing main floor plan with a well-appointed kitchen adjacent to the dining room and a comfortable living area perfect for relaxation.
Main floor master suite offers privacy and convenience, with easy access to living spaces; an additional bedroom is thoughtfully placed on the upper level.

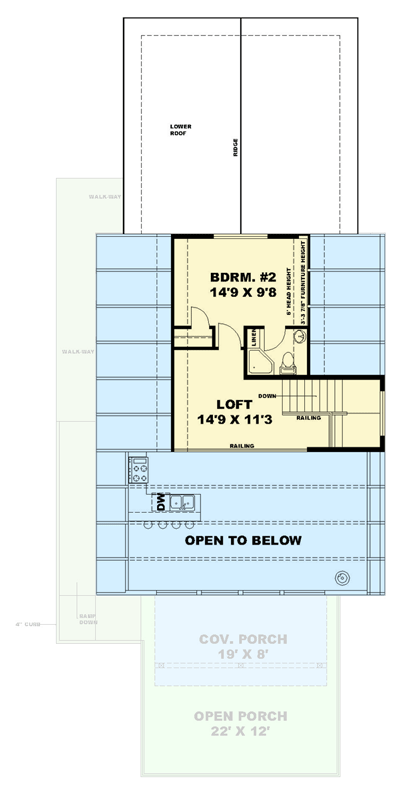

Loft area on the second floor creates versatile space for a home office or additional relaxation area with open views below.
Expansive front porch ideal for enjoying the outdoors, complete with covered and open sections for year-round use.
Additional features include a mudroom and main-level laundry for convenience and functionality.

What's Included

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.

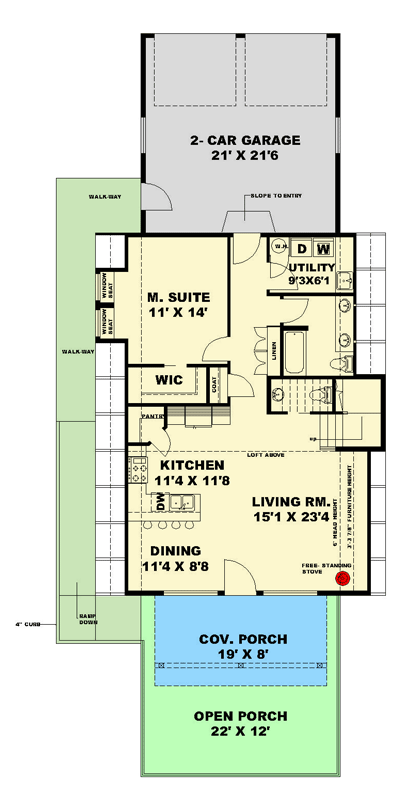

Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
