Plan 72875DA
Charming Bungalow with Three Bedrooms
Heated S.F.
1,489
Beds
2-3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

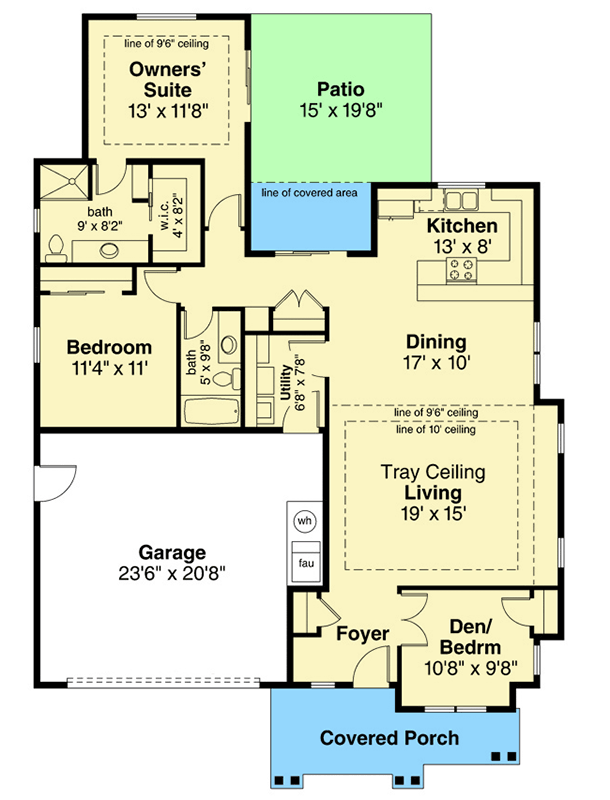

  • Charming good looks and a big, open layout enhance this Bungalow ranch home.
  • To the right of the entry is a set of double doors that open to a den which could also be used as a bedroom if needed.
  • Walking past the den, you enter the huge living room with a tray ceiling.
  • Living room, dining room and kitchen flow together seamlessly with the only separation coming from the peninsular eating bar in the kitchen.
  • Along the back of the house is a hall that provides access through the sliding door to a covered area on the patio.
  • On the end of the hall is another bedroom and the owners' suite that features a step-in closet and private bathroom.

What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

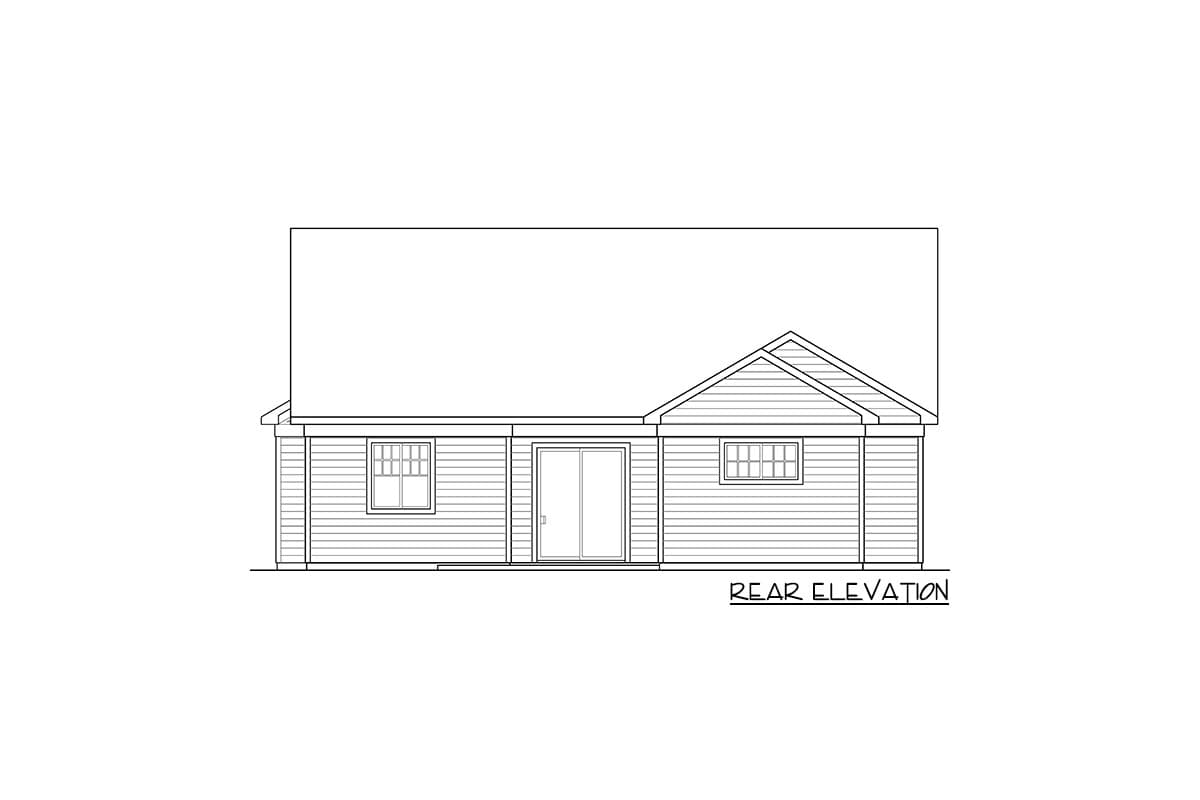

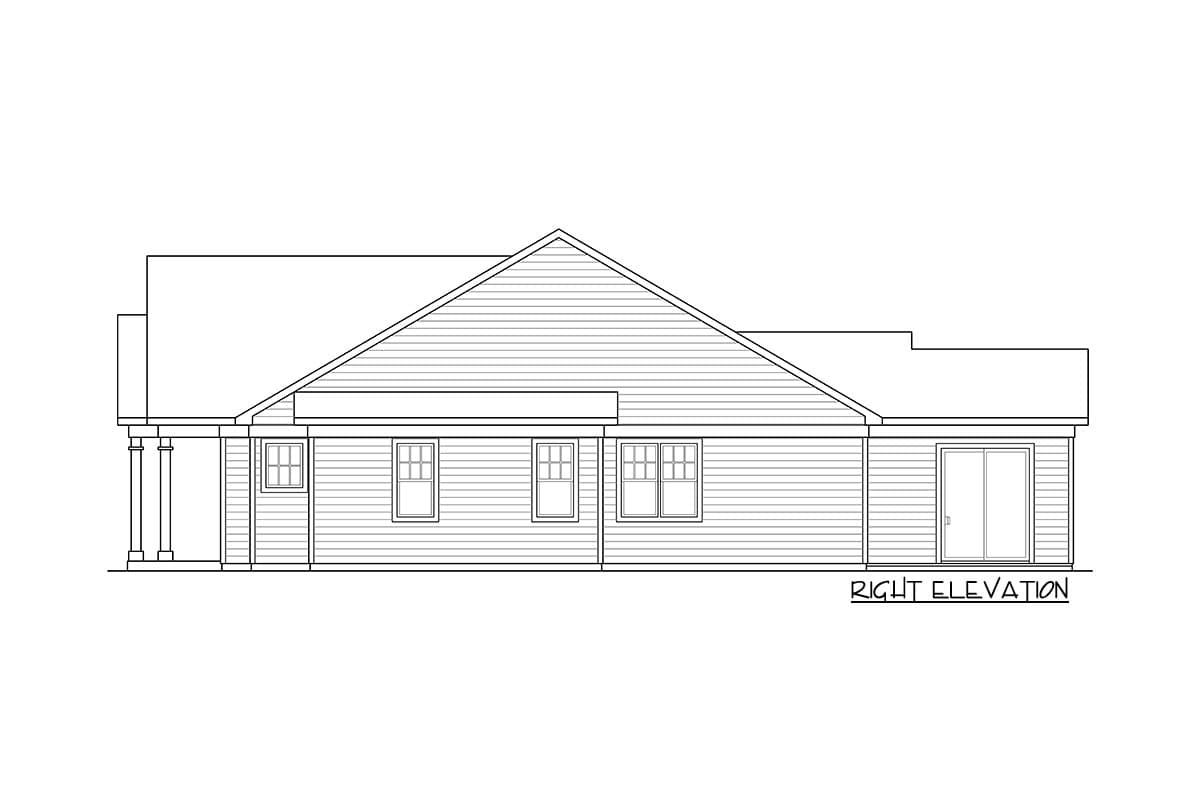

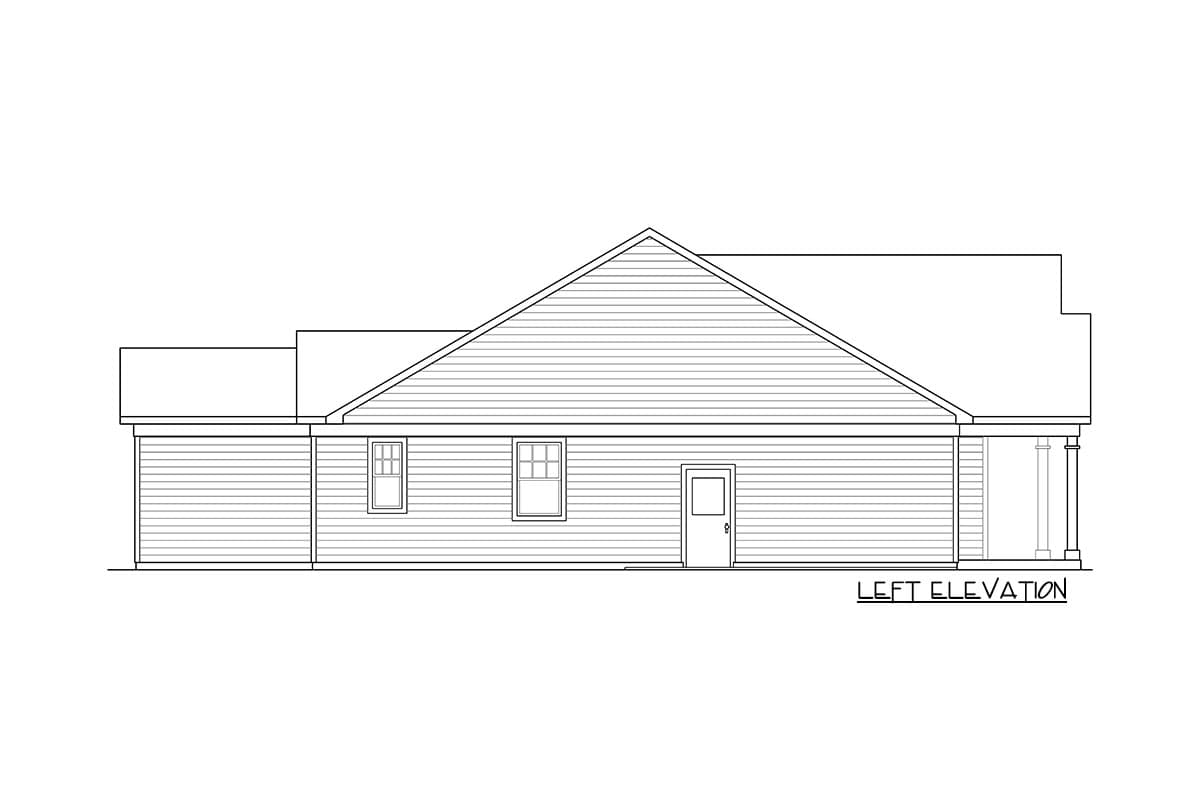

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming Bungalow with Three Bedrooms

  • 1,489

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,489 sq. ft.
  • 1st Floor: 1,489 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 64' 0"
  • Max ridge height: 23' 4"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 482 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick And Truss
