Plan 5788HA Charming Carriage Design

929 2 1 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Charming Carriage Design

Plan 5788HA

  • 929

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Stories

  • 3

    Cars

  • Spacious living room with dining area has access to 8' x 12' deck through glass sliding doors.
  • Splendid U-shaped kitchen features a breakfast bar, oval window above sink and impressive cabinet storage.
  • Master bedroom enjoys a walk-in closet and large elliptical feature window.
  • Laundry, storage closet and mechanical space are located off first floor garage.

  • ·         Front Cover Sheet
  • ·         Detailed Floor Plans
  • ·         Foundation Plan
  • ·         Roof Plan

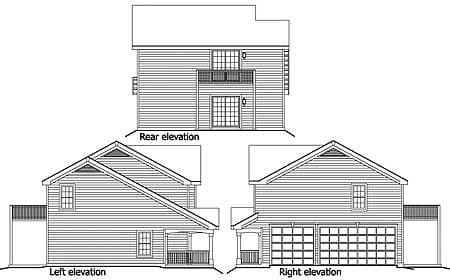

  • ·         Exterior Elevations
  • ·         Interior Elevations
  • ·         Cross Section
  • ·         Mechanical – Shows location of furnace
  • ·         Electrical – Shows location of outlets, switches and fixtures
  • ·         Plumbing – Shows location of fixtures

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Charming Carriage Design - 5788HA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

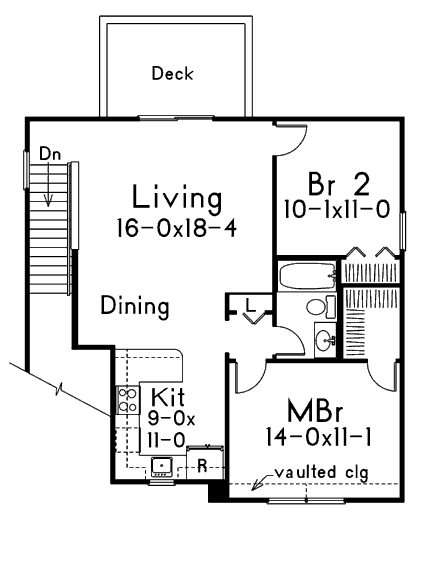

Charming Carriage Design - 5788HA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 929 sq. ft.
  • 1st Floor: 110 sq. ft.
  • 2nd Floor: 819 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 31' 0"
  • Depth: 35' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Detached
  • Area: 684 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Charming Carriage Design

  • 929

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $650
  • Reproducible Set $650
  • PDF - Single-Build $650
  • 8 Sets $725
  • 5 Sets + PDF $750
  • PDF - Unlimited Build $950
  • CAD - Single-Build $1,100
  • CAD - Unlimited Build $1,400
  • View all purchase option online

About This Plan

  • Spacious living room with dining area has access to 8' x 12' deck through glass sliding doors.
  • Splendid U-shaped kitchen features a breakfast bar, oval window above sink and impressive cabinet storage.
  • Master bedroom enjoys a walk-in closet and large elliptical feature window.
  • Laundry, storage closet and mechanical space are located off first floor garage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 929 sq. ft.
  • 1st Floor: 110 sq. ft.
  • 2nd Floor: 819 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 31' 0"
  • Depth: 35' 0"
  • Max ridge height: 27' 6"

Garage

  • Type: Detached
  • Area: 684 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
Plan 5788HA
View this and more for this plan by visiting www.architechtecturaldesigns.com/5788HA
|
Need Help? 800-854-7852
|
Plan 5788HA
