Plan 22106SL

Charming Carriage House Plan ADU - 2-Car Garage with 1 Bedroom Apartment

Heated S.F.
1,155
Beds
1
Baths
1.5
Stories
2
Cars
2

Floor Plan

Plan 22106SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22106SL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

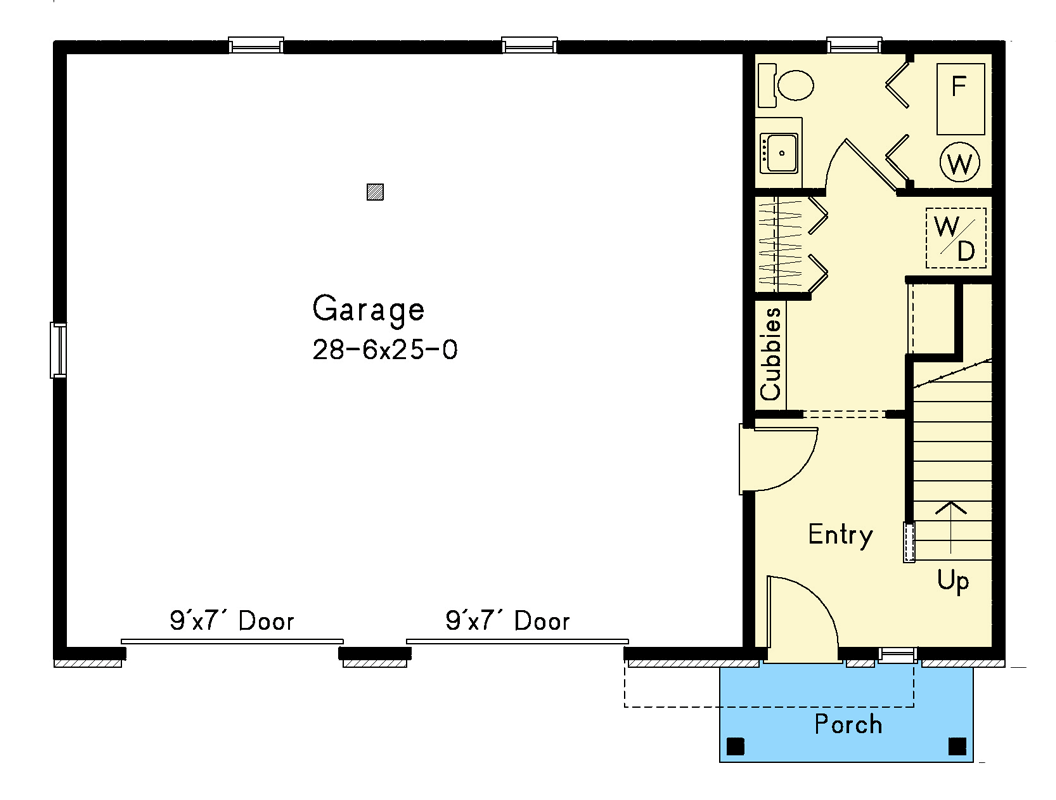

Plan 22106SL: Charming Carriage House Plan ADU - 2-Car Garage with 1 Bedroom Apartment - Floor Plan - Main Level - Carriage, Craftsman, New American

2nd Floor

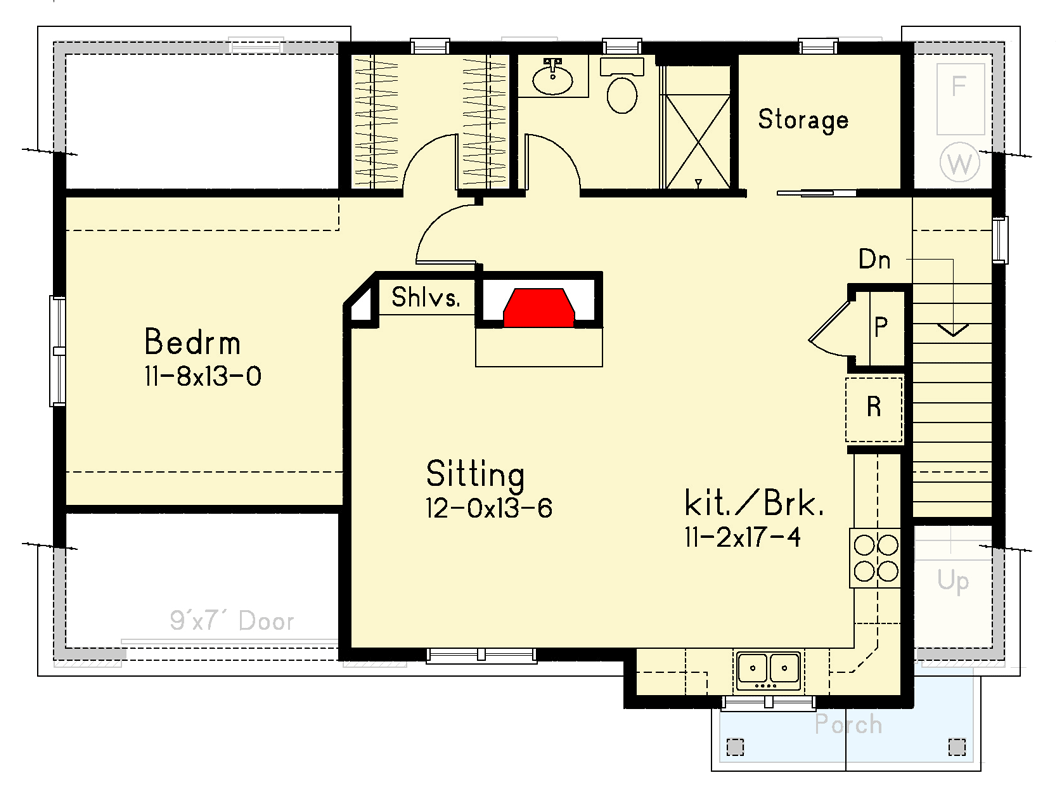

Plan 22106SL: Charming Carriage House Plan ADU - 2-Car Garage with 1 Bedroom Apartment - Floor Plan - 2nd Floor - Carriage, Craftsman, New American

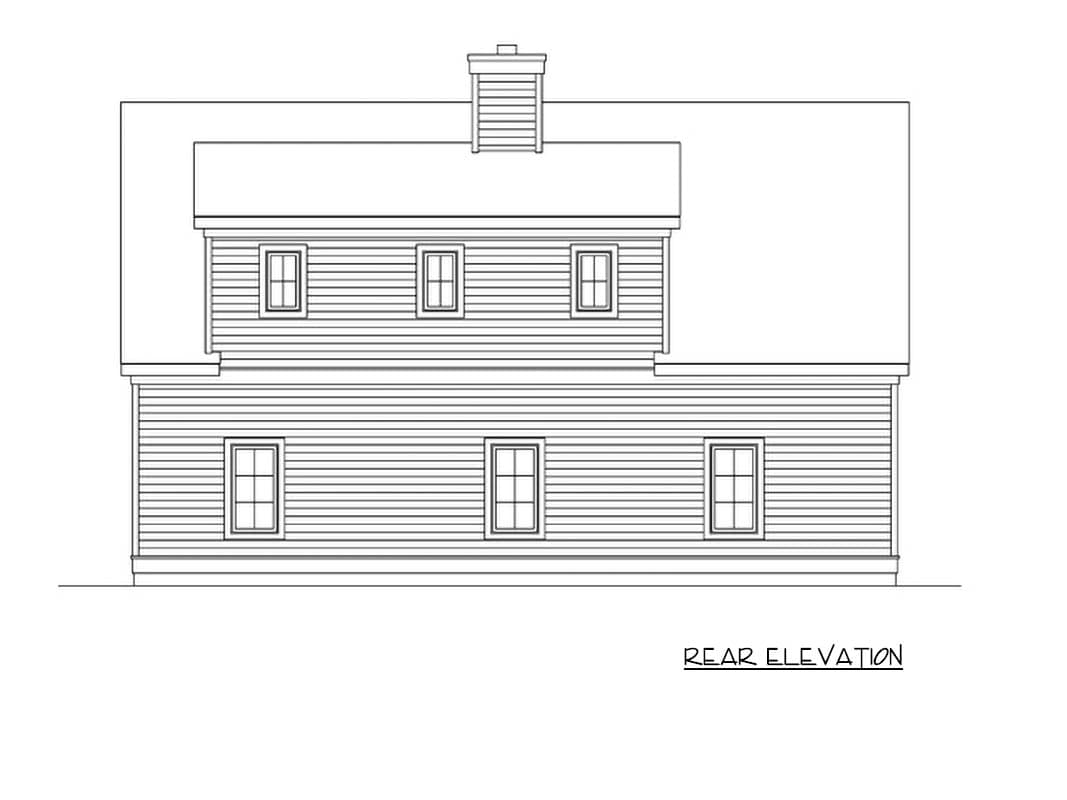

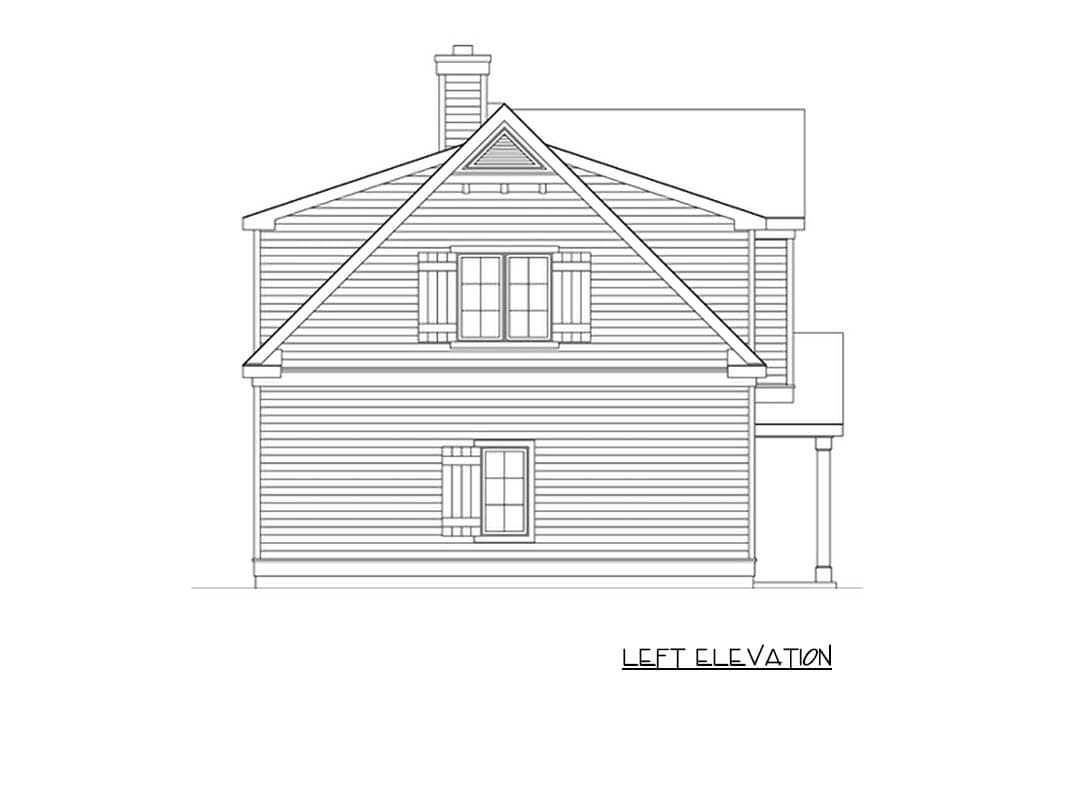

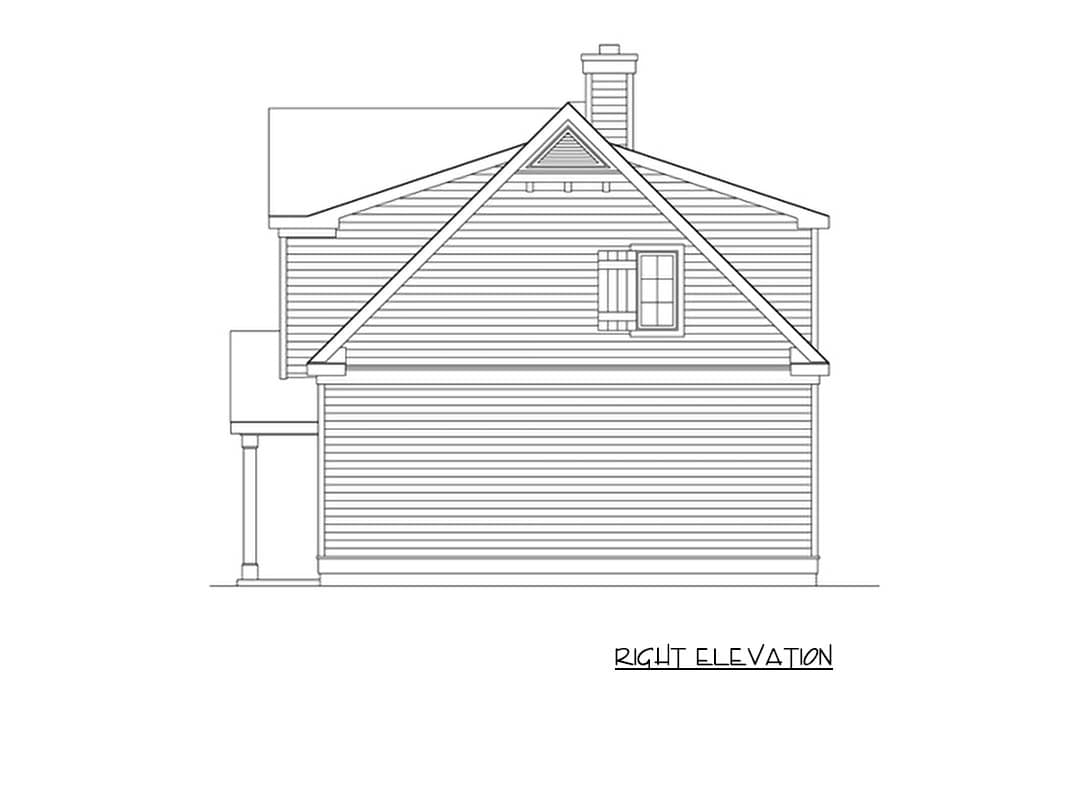

Plan Details

  • Classic features on the exterior of this New American Carriage Home Plan make it a great addition to any style of home. A brick trim and board and batten siding complete the design.
  • Two garage bays can be found on the main level. The attached apartment features a main level entry from the garage, as well as from a covered front porch with a foyer, landing zone, laundry nook, coat closet, and 1/2 bath powder room.
  • Stairs in the foyer lead to the main living area of the apartment, which includes a large open living space with fireplace, an L-shaped kitchen, a generous bedroom with walk-in closet, and a full bath.
  • A large closet with pocket door increases storage options for tenants.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,155 sq. ft.

1st Floor

286 sq. ft.

2nd Floor

869 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

30' 4"

Max Ridge Height

25' 6"

Garage

Area

754 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

New American

Special Features

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,155 sq. ft.

1st Floor

286 sq. ft.

2nd Floor

869 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

30' 4"

Max Ridge Height

25' 6"

Garage

Area

754 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Carriage

Craftsman

New American

Special Features

Master Suite - Upstairs

Plan Collections

ADU
