Charming Country Traditional Duplex House Plan with Main-Level Master Suites

Heated S.F.
3,286
Units
2
Width
Depth

Floor Plan

Plan 52494WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52494WM

M-F 9am-5pm EST |

1-203-761-8500

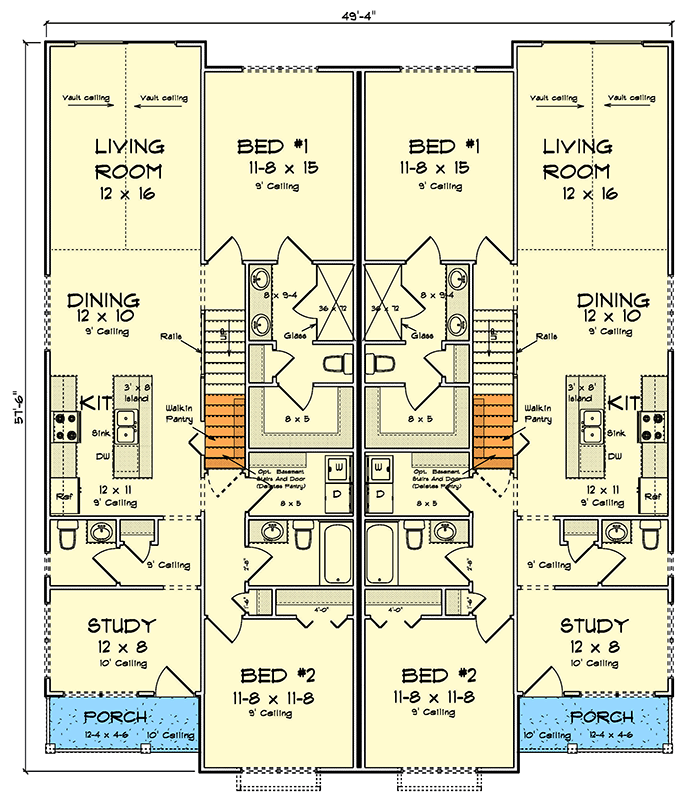

Main Level

Plan 52494WM: Charming Country Traditional Duplex House Plan with Main-Level Master Suites - Floor Plan - Main Level - Country, Traditional

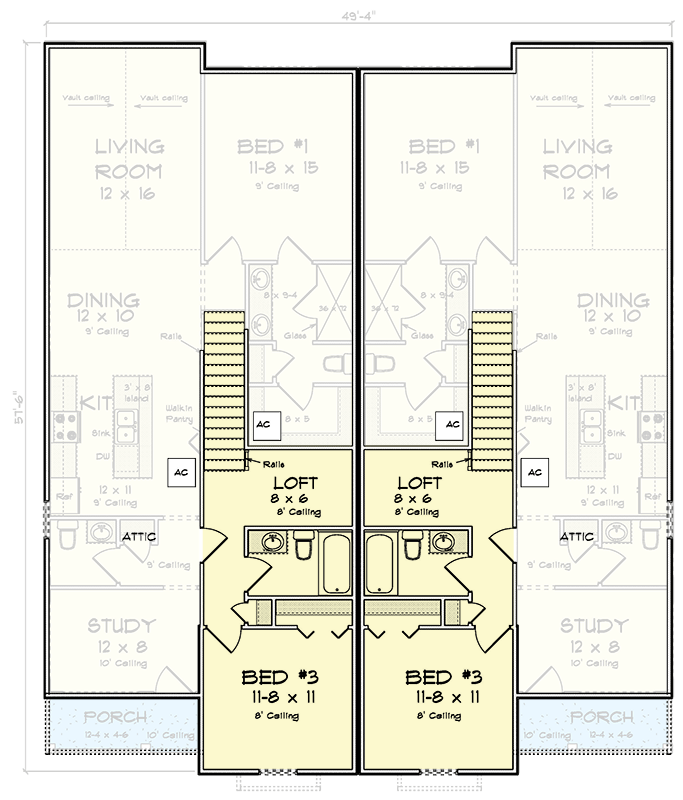

2nd Floor

Plan 52494WM: Charming Country Traditional Duplex House Plan with Main-Level Master Suites - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • This impressive 3,286 sq. ft. Country Traditional duplex house plan presents a harmonious blend of classic charm and modern functionality, offering a total of 6 bedrooms, 4 full bathrooms, and 2 half bathrooms across two distinct, mirror-image units.
  • Each inviting dwelling unit greets residents with its own picturesque front porch, leading into an intelligently designed interior. Upon entry, the layout unfolds into an open-concept living area, perfect for daily routines and fostering connection, complemented by a secluded main-level laundry room for ultimate convenience.
  • The heart of each home features an integrated kitchen and dining area, flowing effortlessly into the main living space, ideal for culinary exploration and shared meals. A dedicated library or study on the main floor offers a tranquil escape, perfect for focused work or quiet contemplation.
  • Each unit boasts a private, expansive master suite strategically placed on the first floor, providing a serene sanctuary. Upstairs, two additional split bedrooms, along with a versatile loft area, offer flexible accommodations for family, guests, or creative pursuits, ensuring privacy and comfort for all.
  • Savor moments of tranquility or greet neighbors from the charming 55 sq. ft. covered front porch of each unit, designed for enjoying the outdoors and enhancing the home's welcoming curb appeal.
Unit A & B
Heated Area
1,643Sq. Ft.
2642 Sq. Ft. 1st
644 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
24'width
57'depth
Unfinished Areas
55 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,286 sq. ft.

1st Floor

2,642 sq. ft.

2nd Floor

644 sq. ft.

Porch, Front

110 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

57' 6"

Max Ridge Height

28' 2"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,286 sq. ft.

1st Floor

2,642 sq. ft.

2nd Floor

644 sq. ft.

Porch, Front

110 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

57' 6"

Max Ridge Height

28' 2"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Architectural Style

Country

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
