Plan 340158STR

Charming Craftsman Farmhouse Plan with Three Bedrooms and Vaulted Great Room

Heated S.F.
2,392
Beds
3
Baths
3
Stories
2

Floor Plan

Plan 340158STR

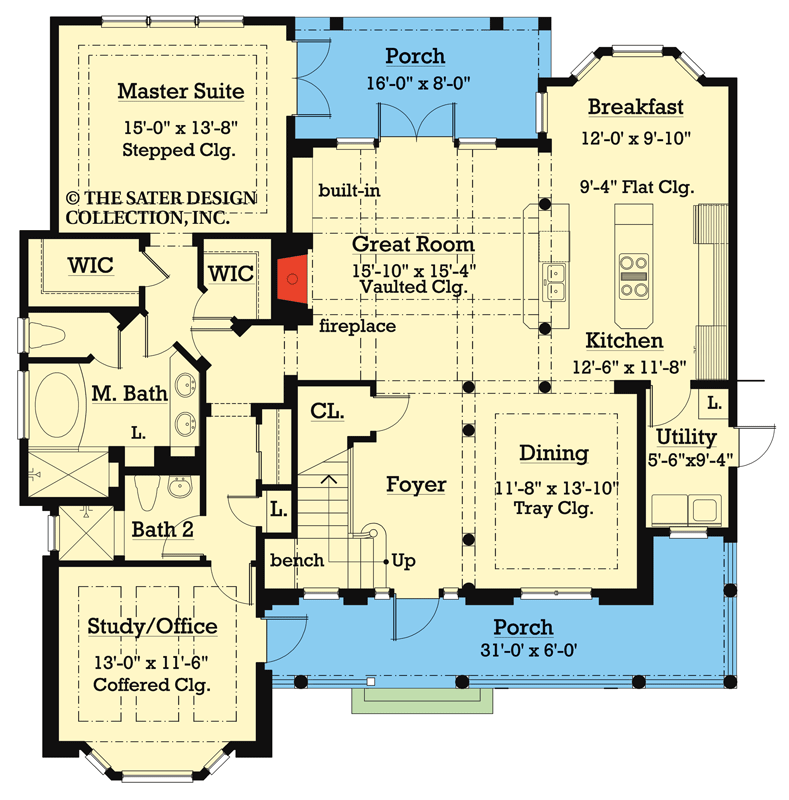

Main Level
Main Level

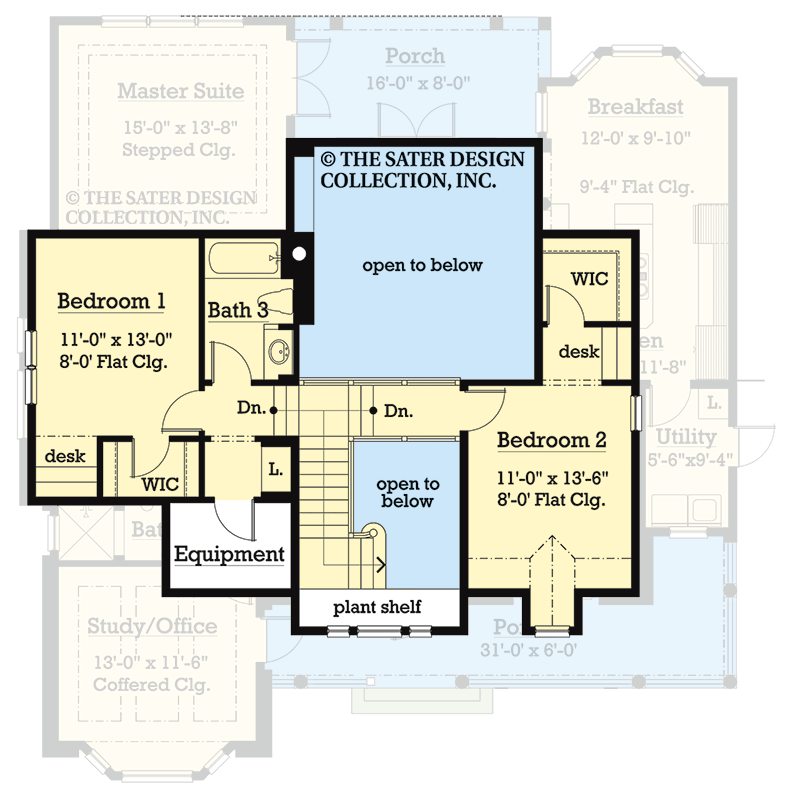

Floor Plan 2

Plan 340158STR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 340158STR: Charming Craftsman Farmhouse Plan with Three Bedrooms and Vaulted Great Room - Floor Plan - Main Level - Cottage, Country, Craftsman, Farmhouse, Southern

Plan 340158STR: Charming Craftsman Farmhouse Plan with Three Bedrooms and Vaulted Great Room - Floor Plan - - Cottage, Country, Craftsman, Farmhouse, Southern

Plan Details

  • This inviting 2,392 square foot home blends Craftsman and Farmhouse elements with stone accents, shake siding, and a classic wrap-around front porch.
  • The entry opens into a light-filled interior where a sophisticated study with a coffered ceiling offers a quiet space for working from home.
  • The heart of the residence features a dramatic two-story vaulted great room that flows effortlessly into a functional kitchen equipped with dual islands and a sunny breakfast nook.
  • A formal dining room with a refined tray ceiling provides an elegant setting for hosting meals, while the main-level primary bedroom suite ensures restful privacy with its stepped ceiling design.
  • Two additional bedrooms are thoughtfully positioned to offer comfort and convenience, supported by three full bathrooms located throughout the home.
  • High-quality finishes like 2x6 exterior wall construction and a steep roof pitch emphasize the enduring architectural character and structural integrity of this comfortable family design.

What's Included

  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,392 sq. ft.

1st Floor

1,714 sq. ft.

2nd Floor

678 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

50' 0"

Max Ridge Height

30' 2"

Ceiling Heights

First Floor

9' 4"

Second Floor

8'

Room

Ceiling Type

Height

Dining Room

Tray

9' 4''

Master Bedroom

Step

9' 4''

Study

Coffered

10' 8''

Great Room

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Architectural Style

Cottage

Country

Craftsman

Farmhouse

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Kitchen Islands

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,392 sq. ft.

1st Floor

1,714 sq. ft.

2nd Floor

678 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

47' 0"

Depth

50' 0"

Max Ridge Height

30' 2"

Ceiling Heights

First Floor

9' 4"

Second Floor

8'

Room

Ceiling Type

Height

Dining Room

Tray

9' 4''

Master Bedroom

Step

9' 4''

Study

Coffered

10' 8''

Great Room

Vaulted

0' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Architectural Style

Cottage

Country

Craftsman

Farmhouse

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Kitchen Islands

Two Story Great Room
