Plan 66382WE Charming Low Country House Plan

Charming Low Country House Plan

Plan 66382WE

  • 2,284

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Two charming dormers and a handsome metal roof top this Low Country house plan.
  • The ground floor is for the garages and a foyer with an elevator to whisk you up to the second floor.
  • You also get a huge storage room that leads to  a covered patio.
  • The outdoor space adds up to a whopping 1,884 square feet across both floors.
  • Elegant touches on the main living floor include vaulted, beamed and tray ceilings that create a designer look.
  • A huge wall of sliding glass doors in the great room brings in the light and the views.
  • Notice the handy pool bath designed to keep wet feet away from the main living area.
  • An open layout combines the kitchen, dining area and great room into one beautiful space.
  • Split bedrooms separate the master suite to allow for privacy

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Charming Low Country House Plan - 66382WE floor plan - 1st Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

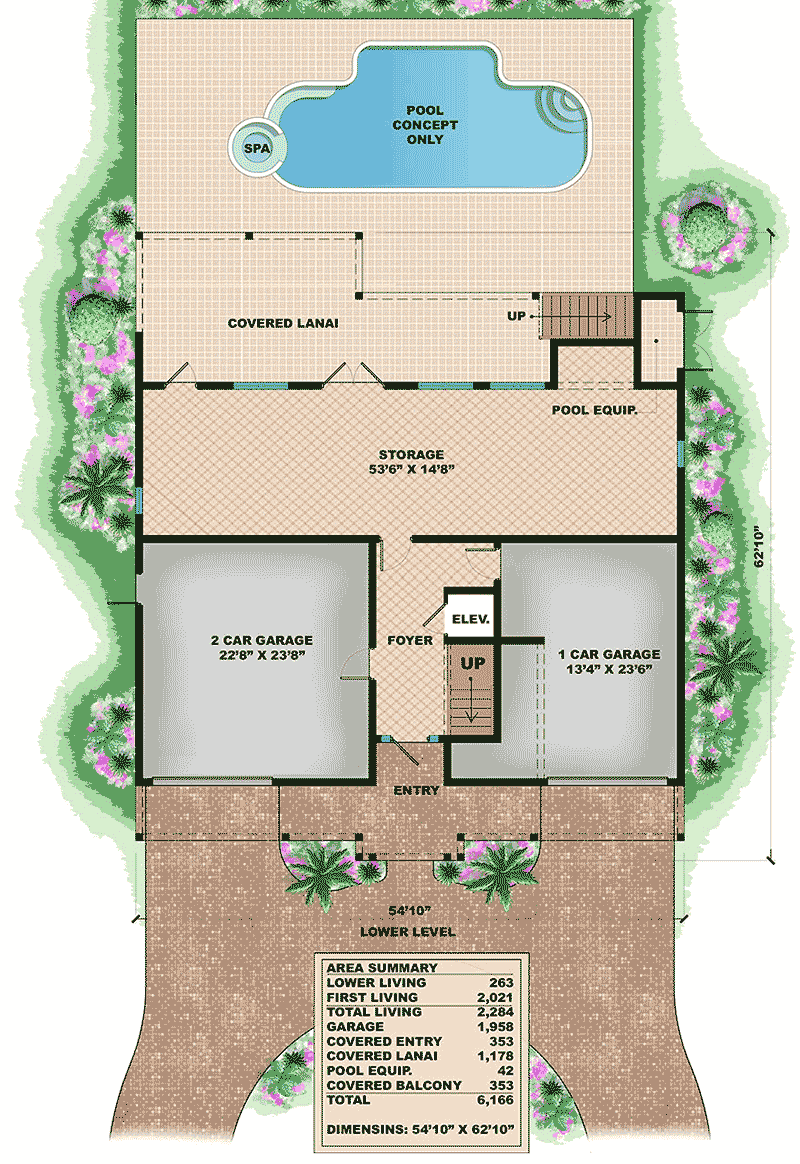

Charming Low Country House Plan - 66382WE floor plan - Ground Level

Plan details

Charming Low Country House Plan

  • 2,284

    Heated s.f.

  • 2 - 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $1,300
  • PDF - Single-Build $1,300
  • CAD - Single-Build $1,300
  • View all purchase option online

About This Plan

  • Two charming dormers and a handsome metal roof top this Low Country house plan.
  • The ground floor is for the garages and a foyer with an elevator to whisk you up to the second floor.
  • You also get a huge storage room that leads to  a covered patio.
  • The outdoor space adds up to a whopping 1,884 square feet across both floors.
  • Elegant touches on the main living floor include vaulted, beamed and tray ceilings that create a designer look.
  • A huge wall of sliding glass doors in the great room brings in the light and the views.
  • Notice the handy pool bath designed to keep wet feet away from the main living area.
  • An open layout combines the kitchen, dining area and great room into one beautiful space.
  • Split bedrooms separate the master suite to allow for privacy

Floor Plans

  • 1st Floor

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,284 sq. ft.
  • Lower Level: 263 sq. ft.
  • 1st Floor: 2,021 sq. ft.
  • Lanai: 1,178 sq. ft.
  • Balcony / Veranda: 353 sq. ft.
  • Entry: 353 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 10"
  • Depth: 62' 10"
  • Max ridge height: 37' 0"

Garage

  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 6" First Floor / 11' 4"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
