Plan 623528DJ

Charming Modern Ranch House with Optionally Finished Lower Level

Heated S.F.
1,613
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 623528DJ

Main Level
Main Level
Lower Level Layout Option ($ Paid Option)
Lower Level Layout Option ($ Paid Option)

Plan 623528DJ

M-F 9am-5pm EST |

1-203-761-8500

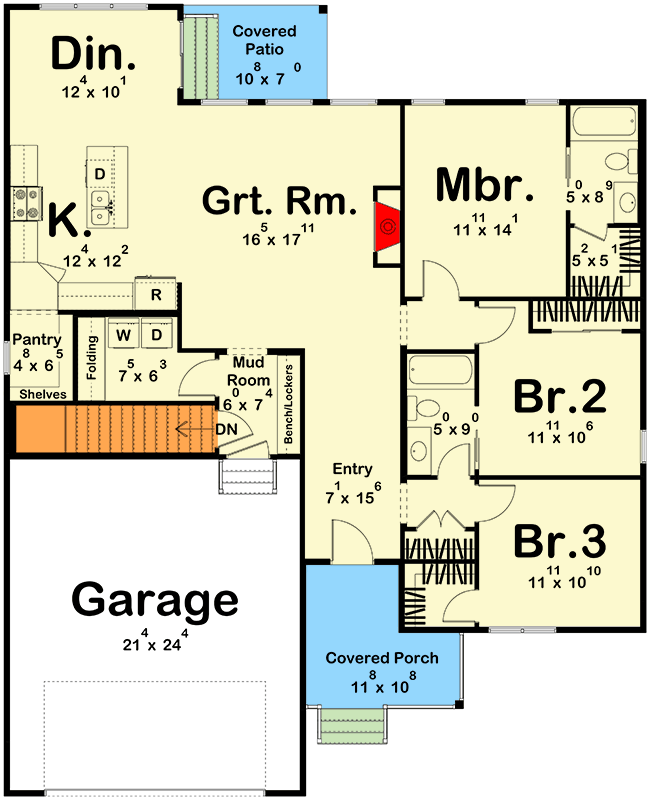

Main Level

Plan 623528DJ: Charming Modern Ranch House with Optionally Finished Lower Level - Floor Plan - Main Level - Cottage, Country, Ranch, Traditional

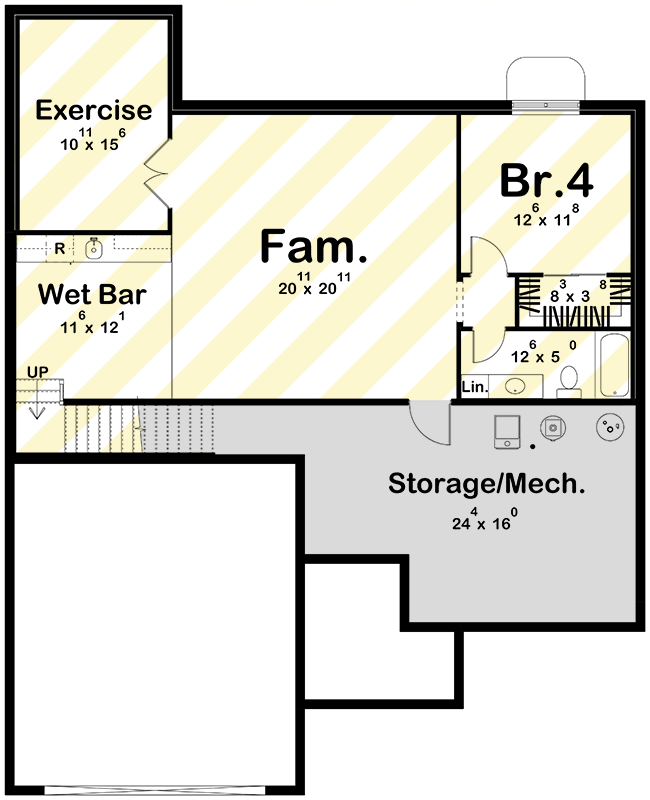

Lower Level Layout Option ($ Paid Option)

Plan 623528DJ: Charming Modern Ranch House with Optionally Finished Lower Level - Floor Plan - Lower Level Layout Option ($ Paid Option) - Cottage, Country, Ranch, Traditional

Plan Details

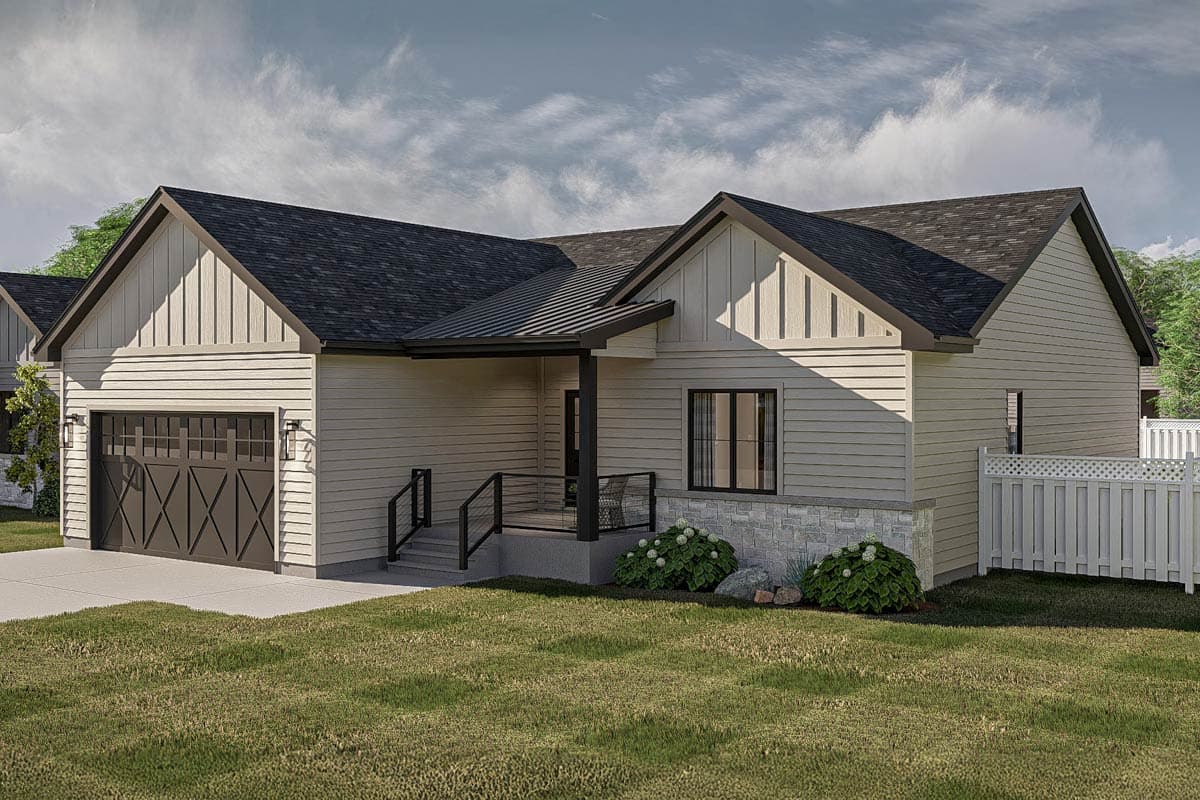

  • This 1,613 sq. ft. modern ranch house features 3 bedrooms, 2 bathrooms, an attached 2-car garage of 540 sq. ft., and a 176 sq. ft. combined porch area, all with a stylish exterior.

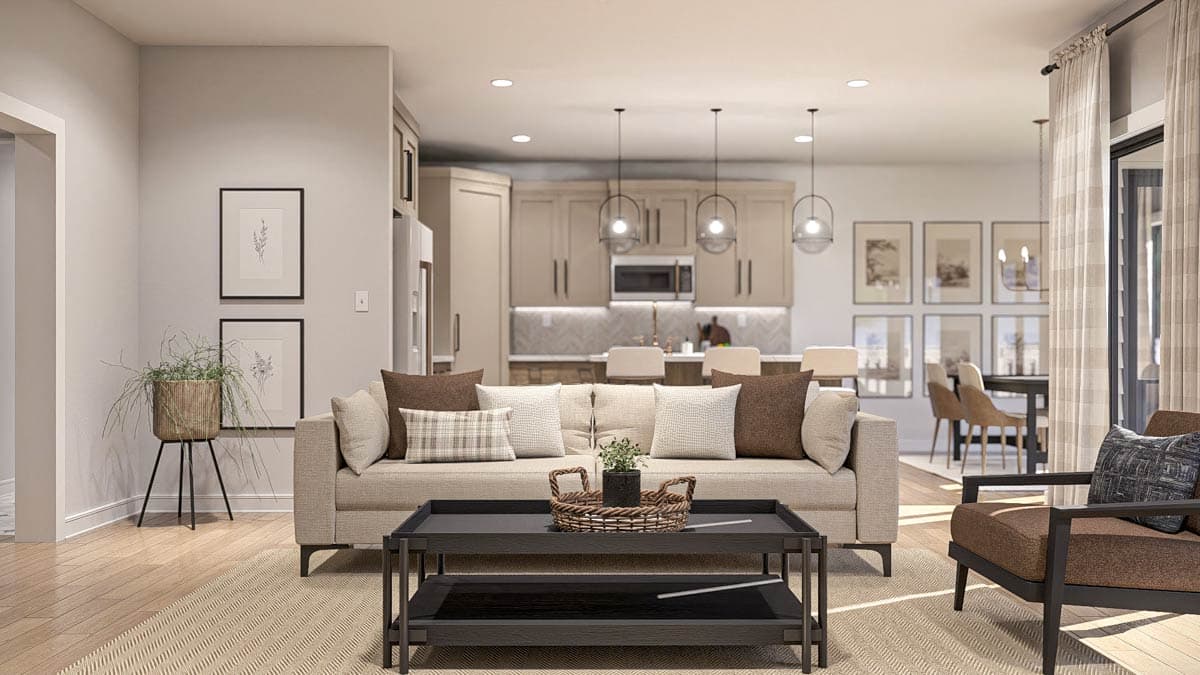

  • Upon entering, you're welcomed by an open-concept layout. The great room flows seamlessly into the dining area and kitchen, making it ideal for everyday living and gatherings.
  • The well-designed kitchen includes a spacious butler walk-in pantry, perfect for additional storage. The adjacent mudroom offers convenient access from the garage.

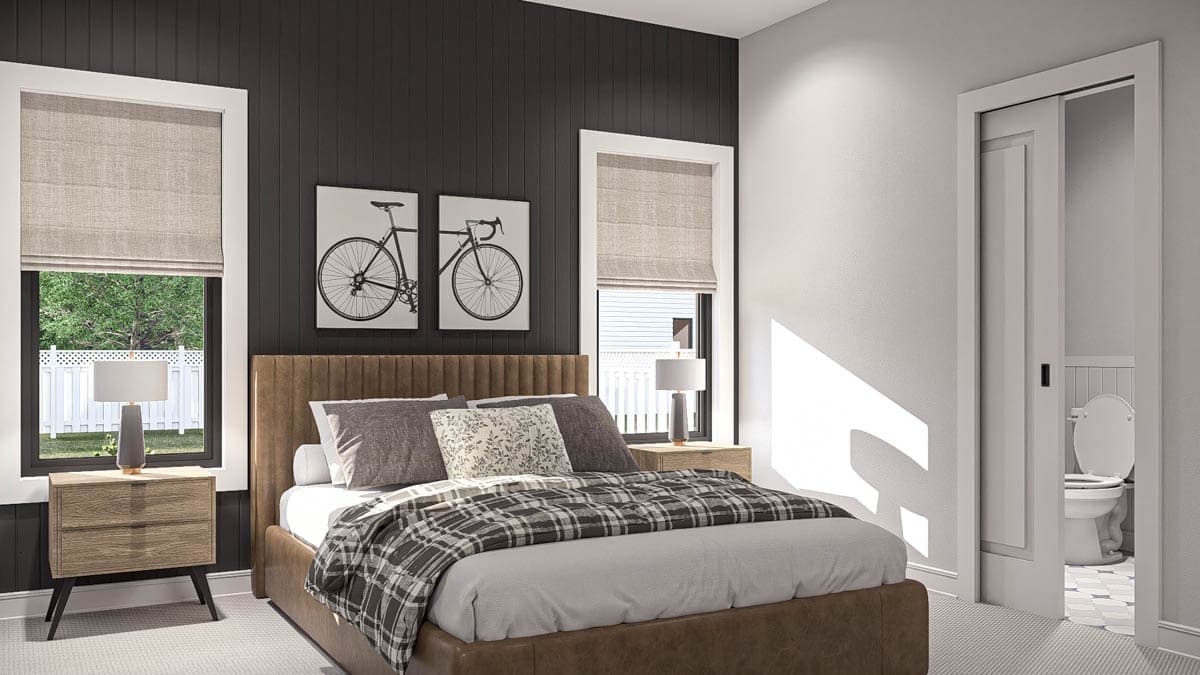

  • The master suite is conveniently located on the first floor, providing privacy from the two additional clustered bedrooms, which share a spacious bathroom.

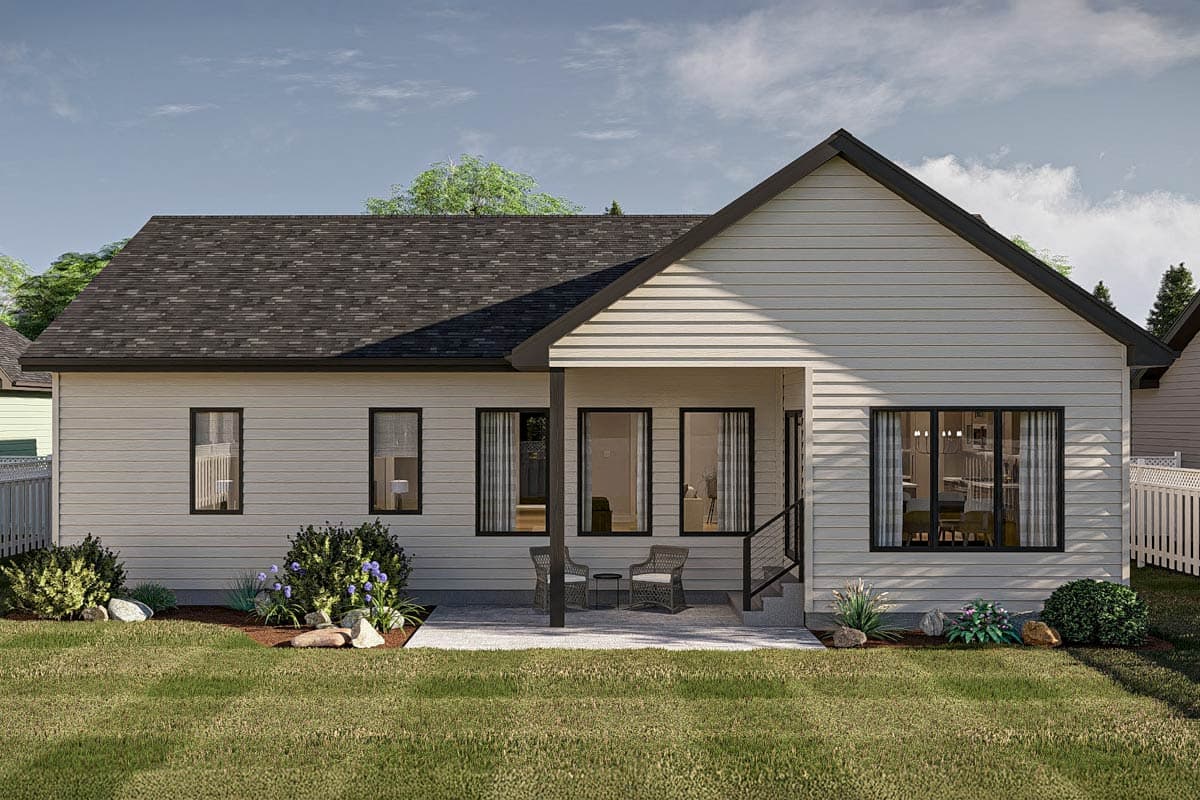

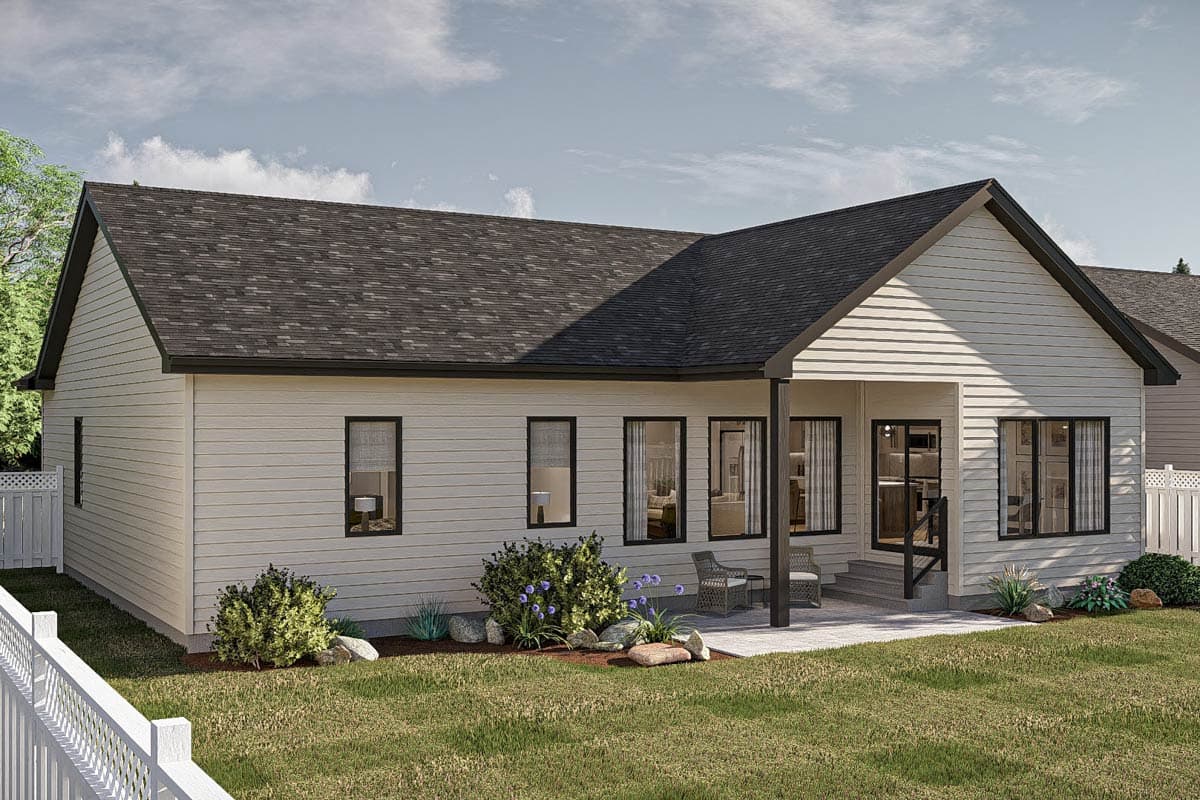

  • Outdoor living is enriched with a covered patio, perfect for enjoying morning coffee or evening relaxation.
  • The optional 1,066 sq. ft. lower level provides expandability, featuring an additional bedroom and recreational spaces, making it adaptable to your needs.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,613 sq. ft.

1st Floor

1,613 sq. ft.

Optional Lower Level

1,066 sq. ft.

Porch, Combined

176 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 0"

Depth

58' 0"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

540 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Cottage

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar
