Plan 623530DJ

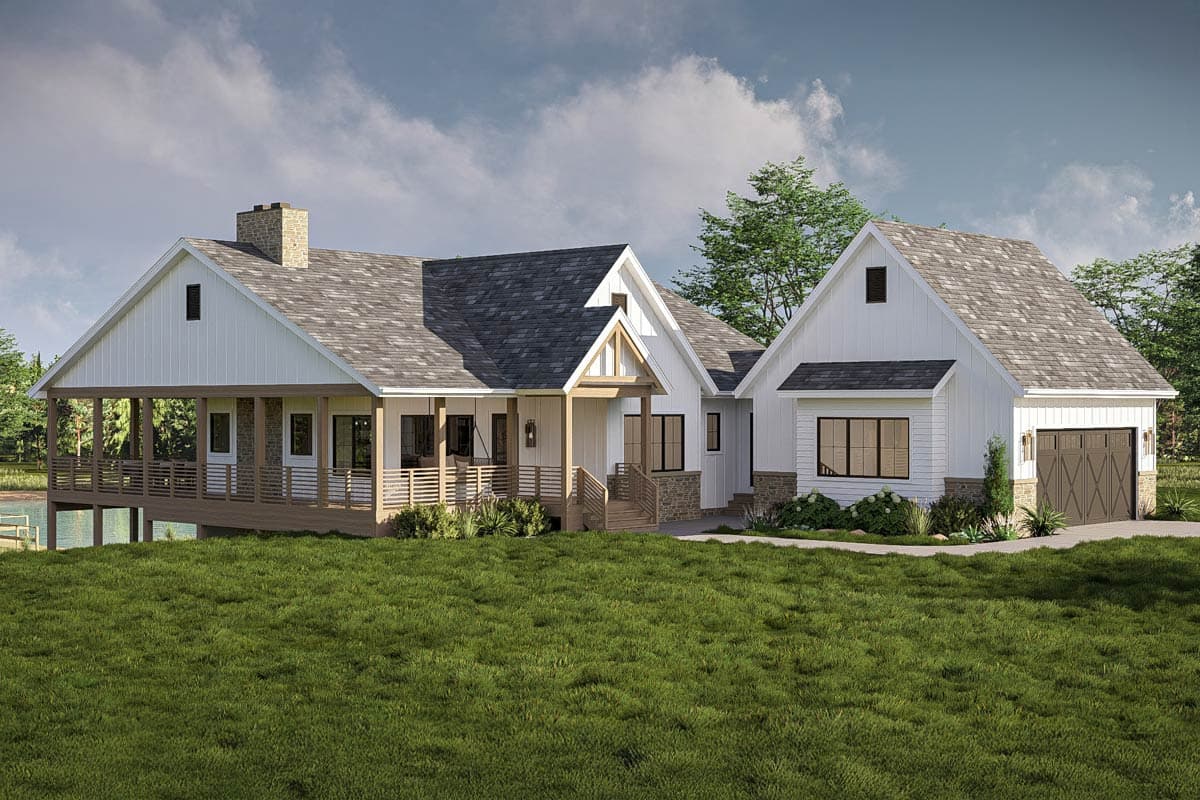

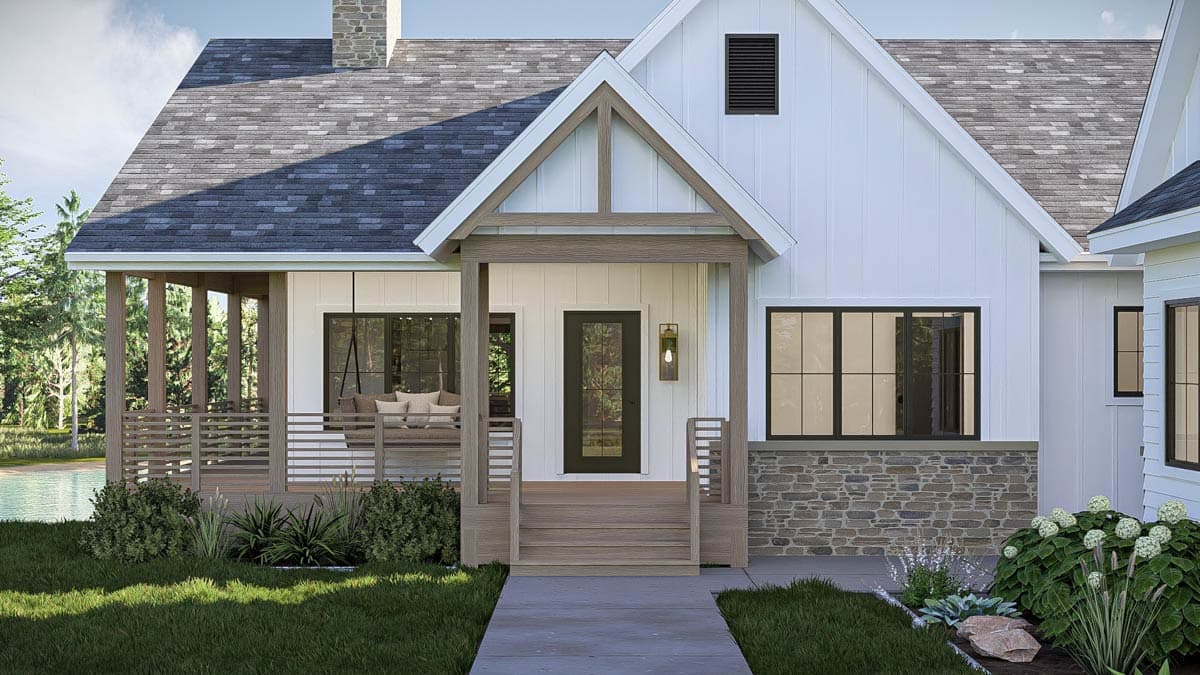

Charming Mountain Home with Wrap Around Porch and Optional Lower Level**

Heated S.F.
1,856
Beds
1 - 3
Baths
2.5 - 3.5
Stories
1
Cars
2
Tour

Floor Plan

Plan 623530DJ

Main Level
Main Level
Lower Level Layout Option ($ Paid Option)
Lower Level Layout Option ($ Paid Option)

Plan 623530DJ

M-F 9am-5pm EST |

1-203-761-8500

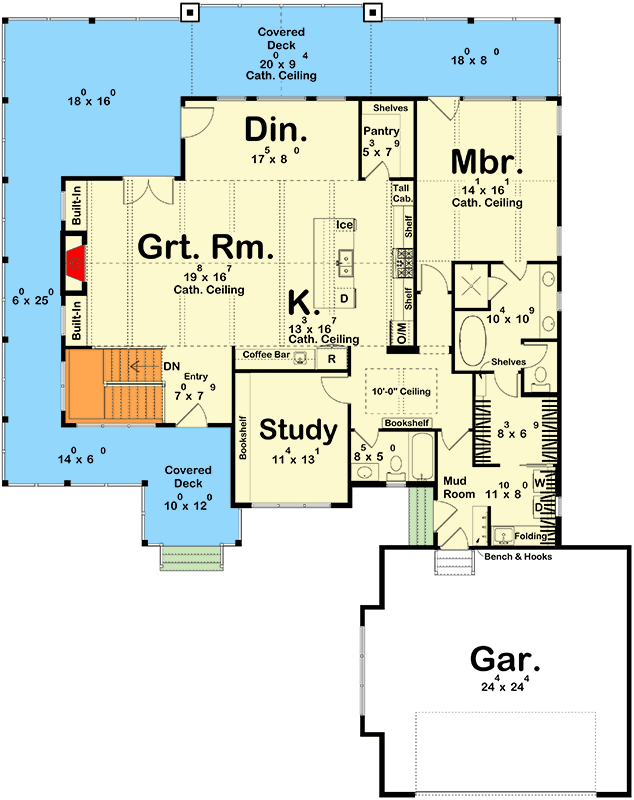

Main Level

Plan 623530DJ: Charming Mountain Home with Wrap Around Porch and Optional Lower Level** - Floor Plan - Main Level - Mountain

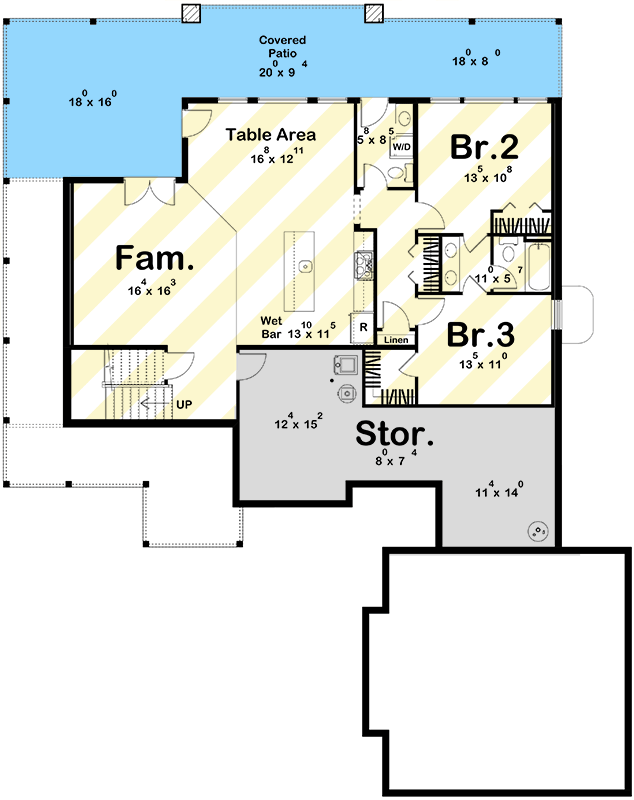

Lower Level Layout Option ($ Paid Option)

Plan 623530DJ: Charming Mountain Home with Wrap Around Porch and Optional Lower Level** - Floor Plan - Lower Level Layout Option ($ Paid Option) - Mountain

Plan Details

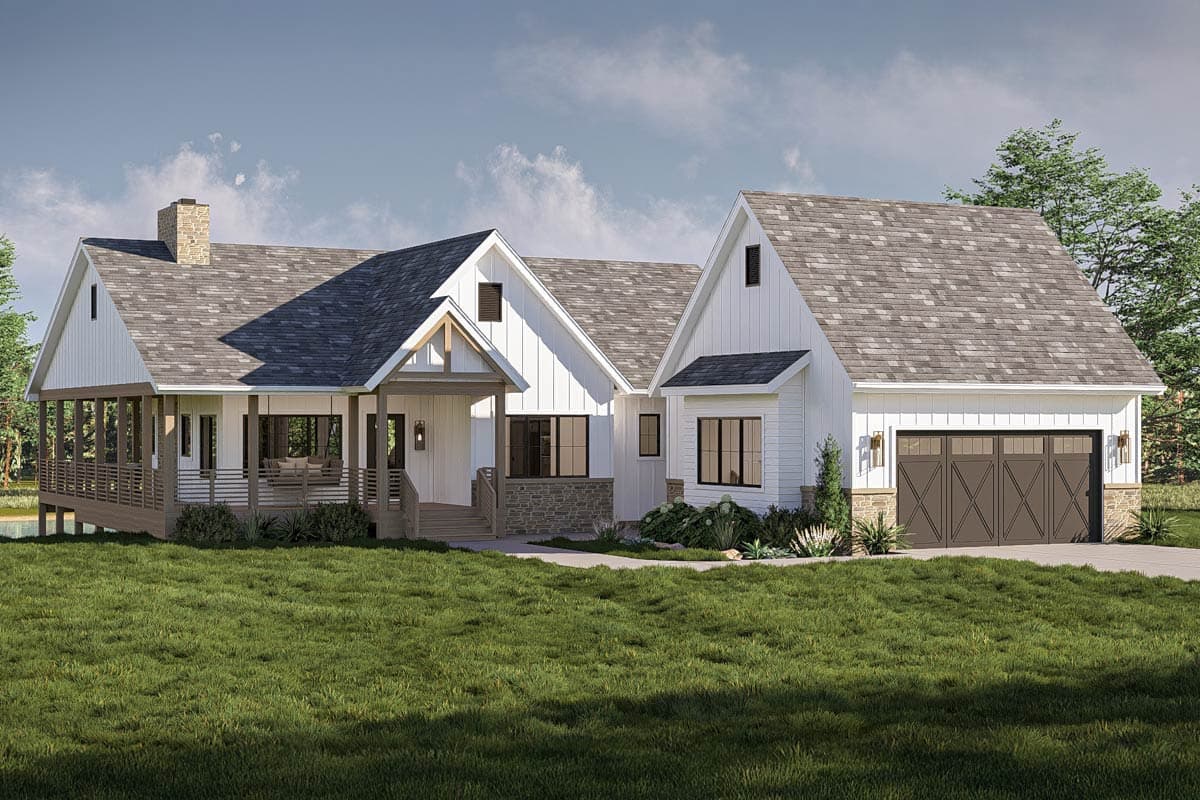

  • This mountain-style home offers a cozy 1,856 sq. ft. of heated space with options for 1, 2 or 3 bedrooms and up to 3 bathrooms. It includes a 2-car attached garage spanning 647 sq. ft.

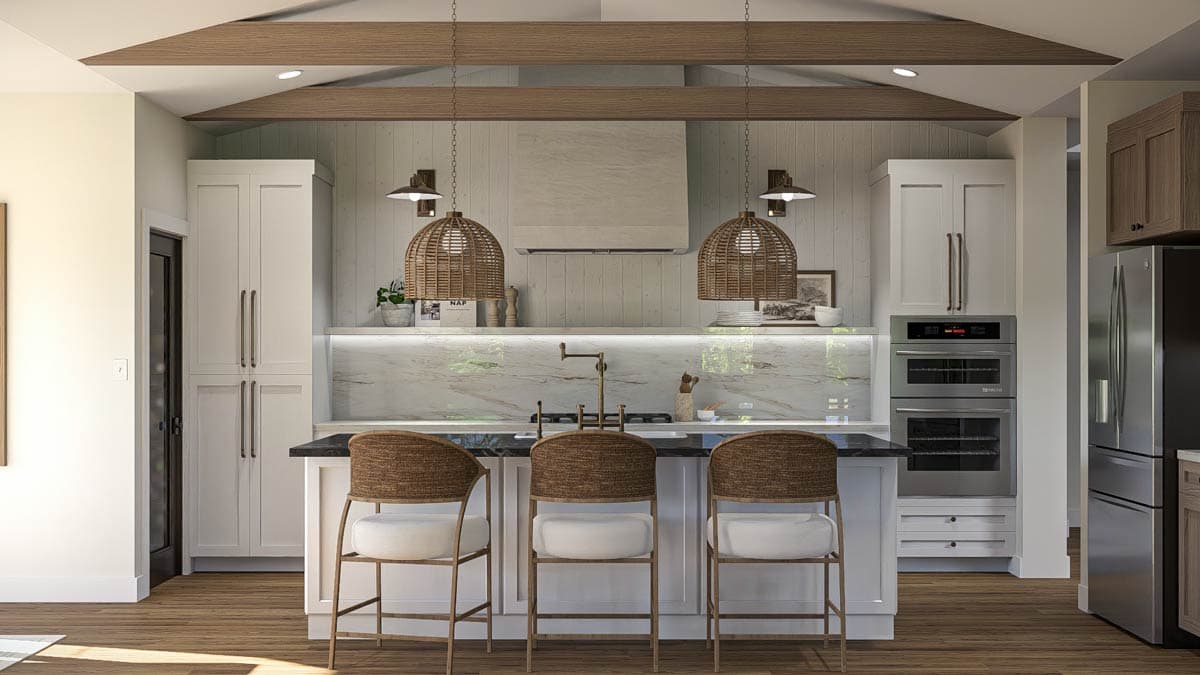

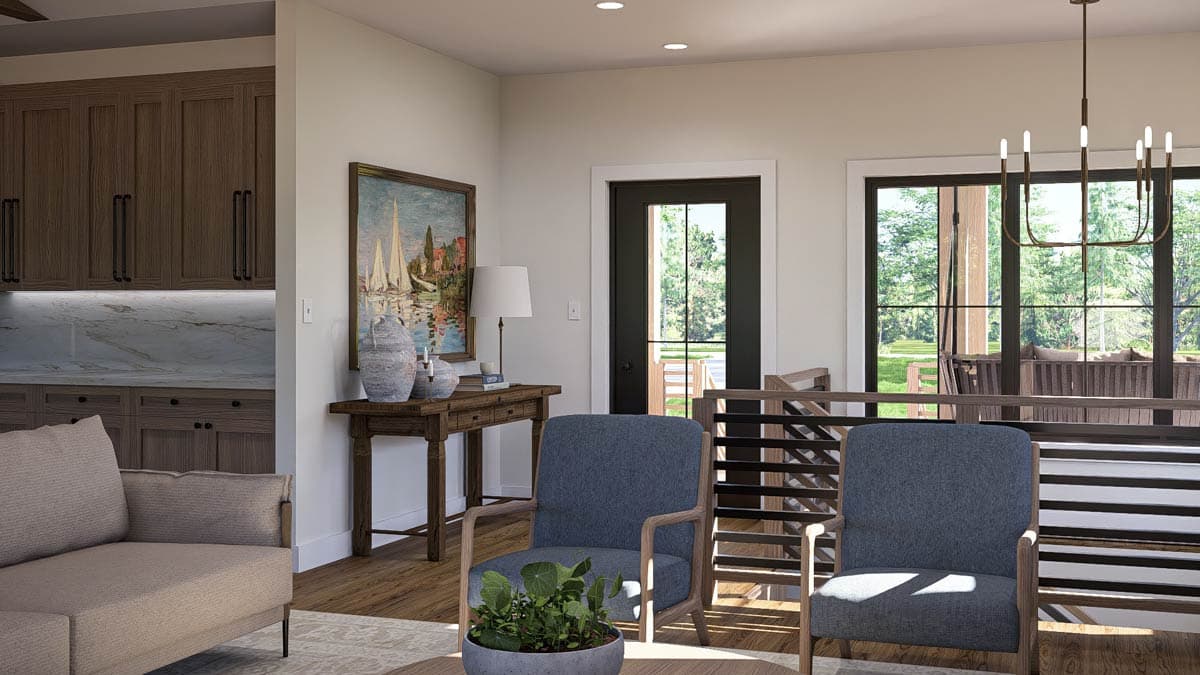

  • Enter to find a welcoming layout featuring a Great Room with cathedral ceilings, seamlessly flowing into the dining area and kitchen, complete with a butler walk-in pantry.
  • The main level includes a dedicated study, mudroom, and a well-arranged kitchen centered around a coffee bar, encouraging an inviting, open-concept living space.
  • The master bedroom on the first floor is conveniently separated from other potential bedrooms, providing privacy with its adjacent master suite bath and direct laundry access.
  • The optional lower level boasts a spacious family room with a wet bar, additional bedrooms, and ample storage space, perfect for entertainment or guests.

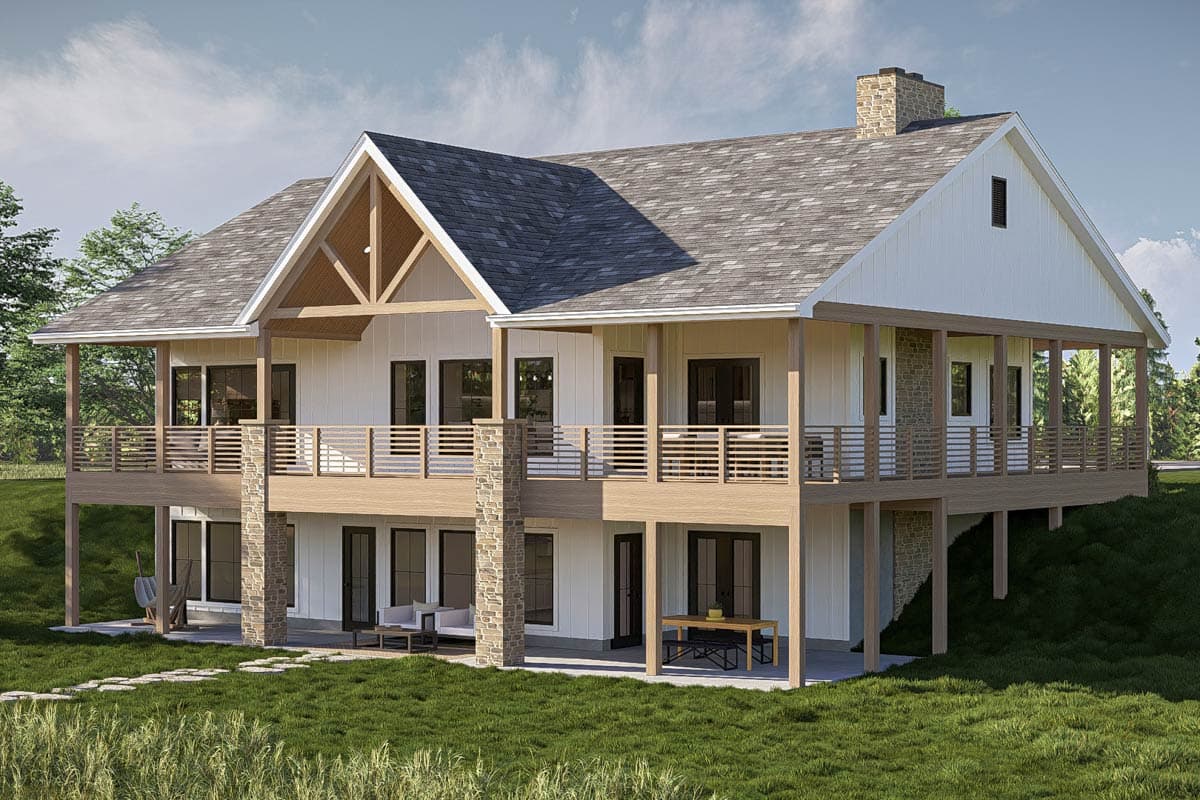

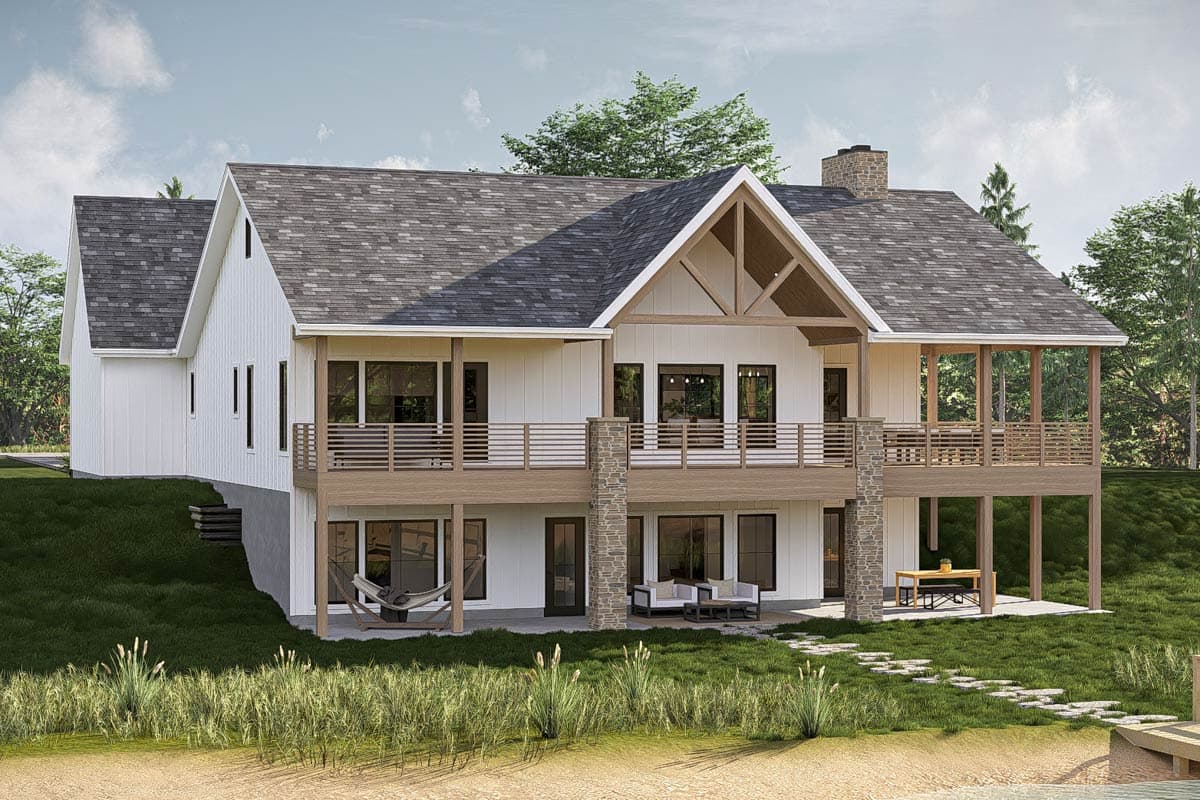

  • Expansive wrap-around porch and decks provide generous outdoor living opportunities, ideal for relaxation in a serene setting.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,856 sq. ft.

1st Floor

1,856 sq. ft.

Optional Lower Level

1,301 sq. ft.

Porch, Combined

965 sq. ft.

Beds/Baths

Bedrooms

1, 2, or 3

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

63' 0"

Depth

79' 4"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

647 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Mountain

Special Features

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Wraparound Porch

Plan Collections

Lake House Plans
