Plan 405014FDC

Charming Narrow Lot Contemporary House Plan wwith Vaulted Family Room and Split Bedrooms

Heated S.F.
1,275
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 405014FDC

Main Level
Main Level

Plan 405014FDC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

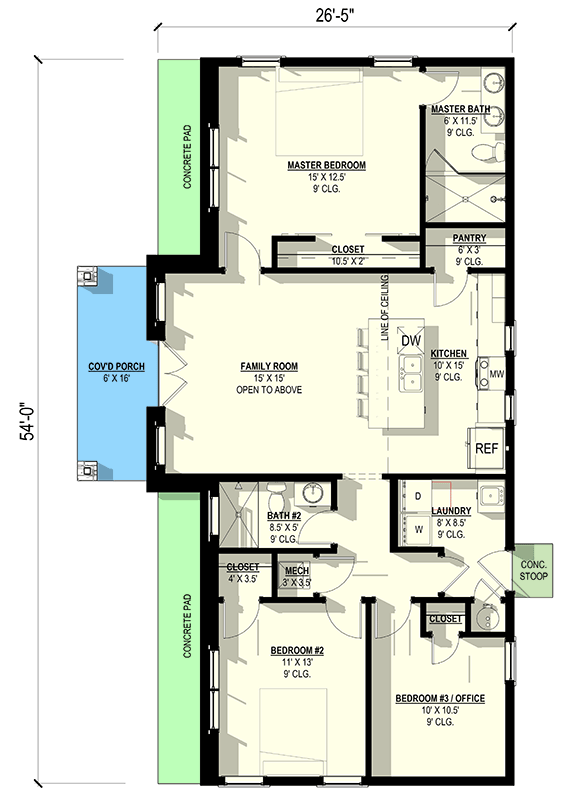

Plan 405014FDC: Charming Narrow Lot Contemporary House Plan wwith Vaulted Family Room and Split Bedrooms - Floor Plan - Main Level - Contemporary

Plan Details

  • This 1,275 square foot house plan gives you 3 bedrooms and 2 bathrooms, and features a narrow Contemporary-inspired exterior, ideal for urban or tight lot conditions.
  • Inside, you are greeted by an open-concept vaulted family room with views stretching into the kitchen and casual dining area. The kitchen includes a large island with seating, a walk-in pantry, and plenty of natural light through front-facing windows.
  • In front, the covered porch (6' x 16') offers a perfect spot for relaxing or entertaining, directly accessed from the family room.
  • The master suite is tucked privately at the rear of the home and includes a walk-in closet and an ensuite bath with dual sinks and a standing shower.
  • The split-bedroom layout places two secondary bedrooms at the front of the house, ideal for children, guests, or use as a home office.
  • Practical spaces include a central laundry room, mechanical closet, and direct access from the concrete stoop in back.

What's Included

  • Cover Sheet - General Notes
  • Foundation
  • Floor Plan (s)
  • Electrical
  • Roof
  • Exterior Elevation
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,275 sq. ft.

1st Floor

1,275 sq. ft.

Porch, Front

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 5"

Depth

54' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick Or Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,275 sq. ft.

1st Floor

1,275 sq. ft.

Porch, Front

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

26' 5"

Depth

54' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick Or Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
