Plan 66052WE

Charming One Bedroom Coastal Cottage House Plan with Covered Lanai

Name: Plan 66052WE: Charming One Bedroom Coastal Cottage House Plan with Covered Lanai
Brand: Architectural Designs
SKU: 66052WE
Price: 578.00 USD
Availability: InStock

Heated S.F.

1,030

Beds

Baths

Stories

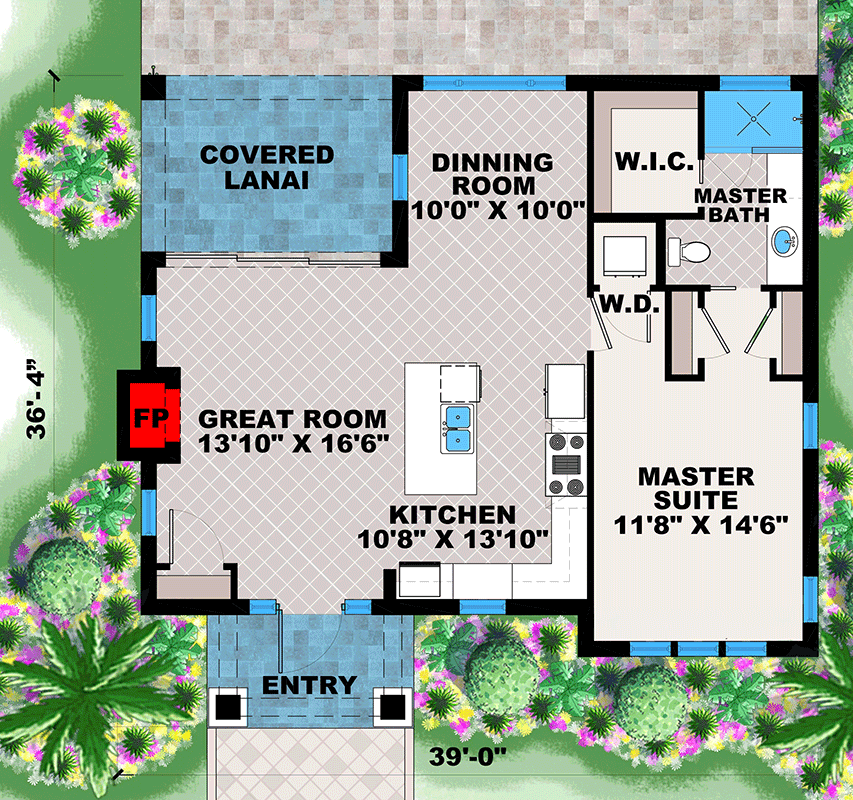

Floor Plan

Plan Details

This 1,030 square foot coastal cottage house plan features one bedroom and one bathroom in a perfectly efficient one-story layout.
Stepping through the inviting front porch, you are greeted by an open floor plan that emphasizes a bright and airy atmosphere.
The central great room centers around a cozy fireplace and flows seamlessly into the island kitchen and dining area for effortless daily living.
A private primary suite occupies its own wing of the home, complete with a generous walk-in closet and direct access to a full bathroom.
Stacking sliding glass doors in the great room connect the interior living space to a rear covered lanai that is ideal for outdoor relaxation.
The covered lanai also features an outdoor shower, adding a practical and refreshing touch for those living near the beach or lake.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
