Charming One Bedroom Modern Farmhouse ADU House Plan

Name: Plan 470322REY: Charming One Bedroom Modern Farmhouse ADU House Plan
Brand: Architectural Designs
SKU: 470322REY
Price: 995.0 USD
Availability: InStock

Heated S.F.

572

Beds

Baths

Stories

Cars

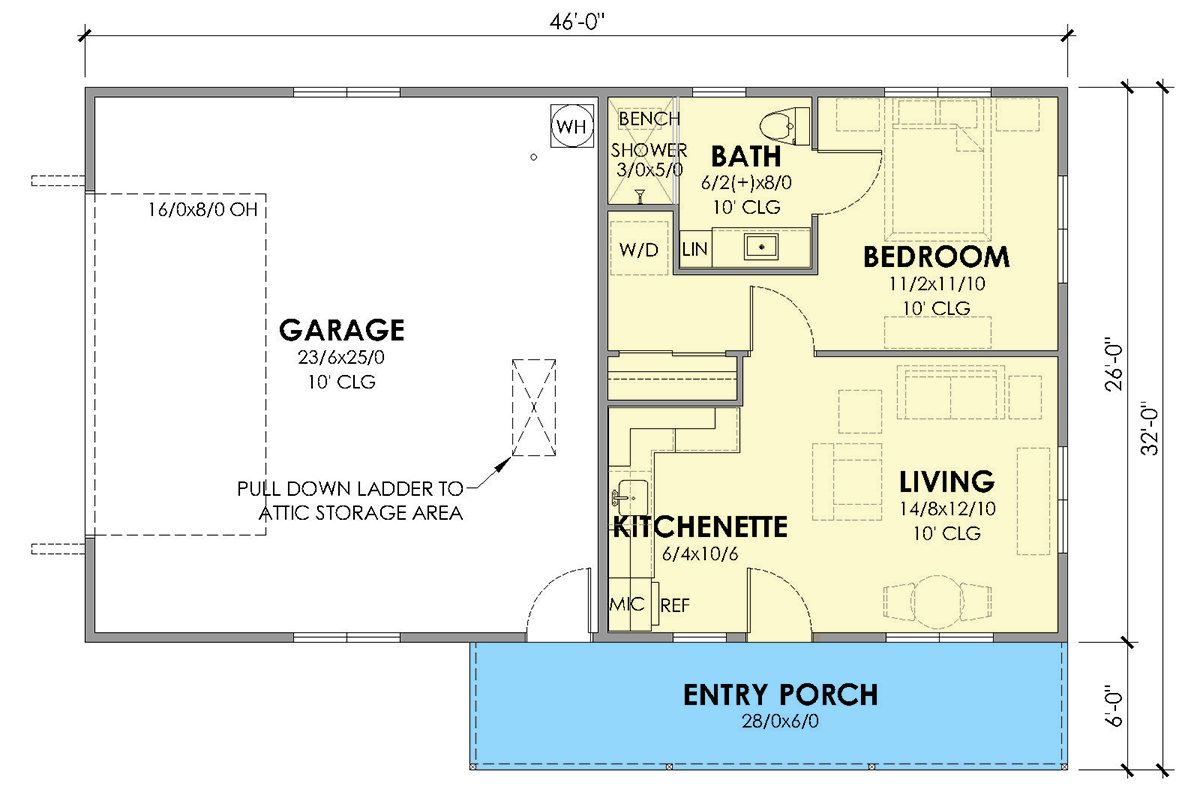

Floor Plan

Plan Details

This efficient 572 square foot cottage blends modern farmhouse aesthetics with a practical layout, featuring one bedroom, one bathroom, and an attached two-car garage.
The side-entry design creates a welcoming transition into a bright home characterized by 10-foot ceilings that enhance the sense of openness throughout the living space.
The thoughtfully planned interior maximizes every square inch, providing a seamless flow between the common living areas and the private quarters.
A comfortable master suite serves as a peaceful retreat, complete with the convenience of integrated main-level laundry access.
The exterior showcases clean lines and a classic roof profile, making it an ideal choice for a guest house, home office, or detached accessory dwelling unit.
A covered porch provides the perfect spot for morning coffee or enjoying the surrounding landscape, adding a touch of rustic charm to this contemporary floor plan.

What's Included

Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.
Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.

This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
