Plan 55207BR
Charming One-Story Traditional Home Plan
Heated S.F.
1,898
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • The living room features cathedral beamed ceilings, a wood burning fireplace, and easy access to the large covered rear porch via an expansive sliding glass door.
  • The cathedral ceiling extends into the kitchen area and the rear entry which features a stop and drop area for coats and keys.  The kitchen is fully appointed and features a quarter round raised bar.  The open design of all the main rooms insures a bright and airy atmosphere and great for entertaining.
  • The adjacent eating area has a wall of built-ins making it easy to serve a crowd for festive occasions.  The formal dining has a raised box ceiling and it can team with the eating area when serving large crowds.
  • The master suite features a 9’-6” raised box ceiling and a great bath which has a tub, separate shower, private toilet, twin vanities and a huge walk-in closet.  Both of the secondary bedrooms are large and roomy and also feature walk-in closets.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details

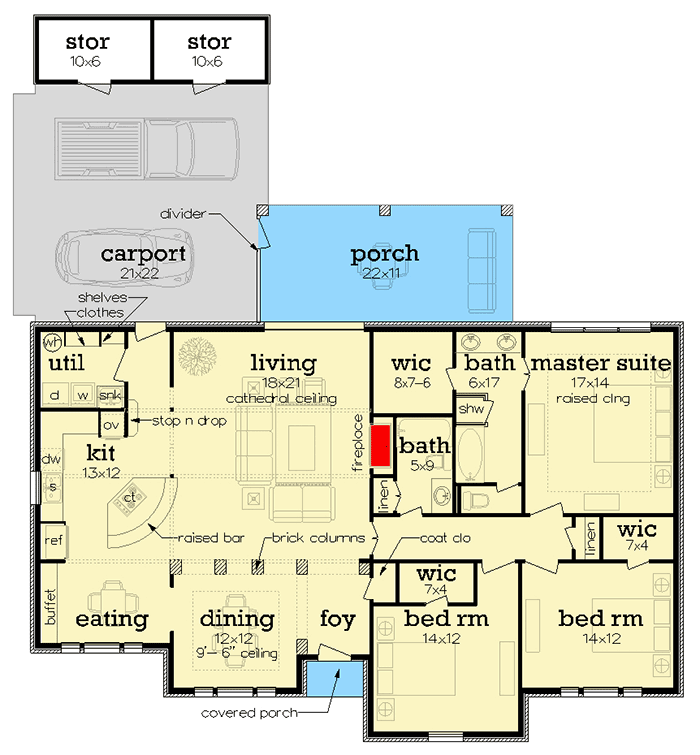

  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

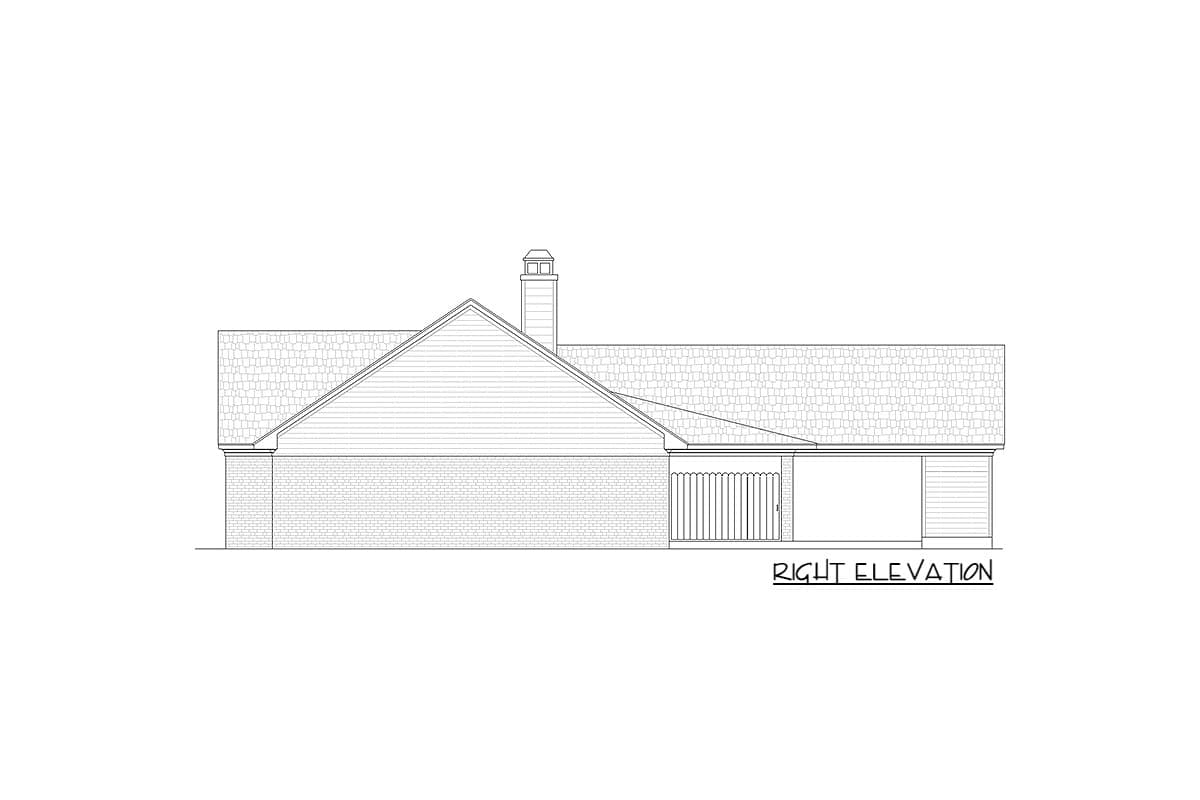

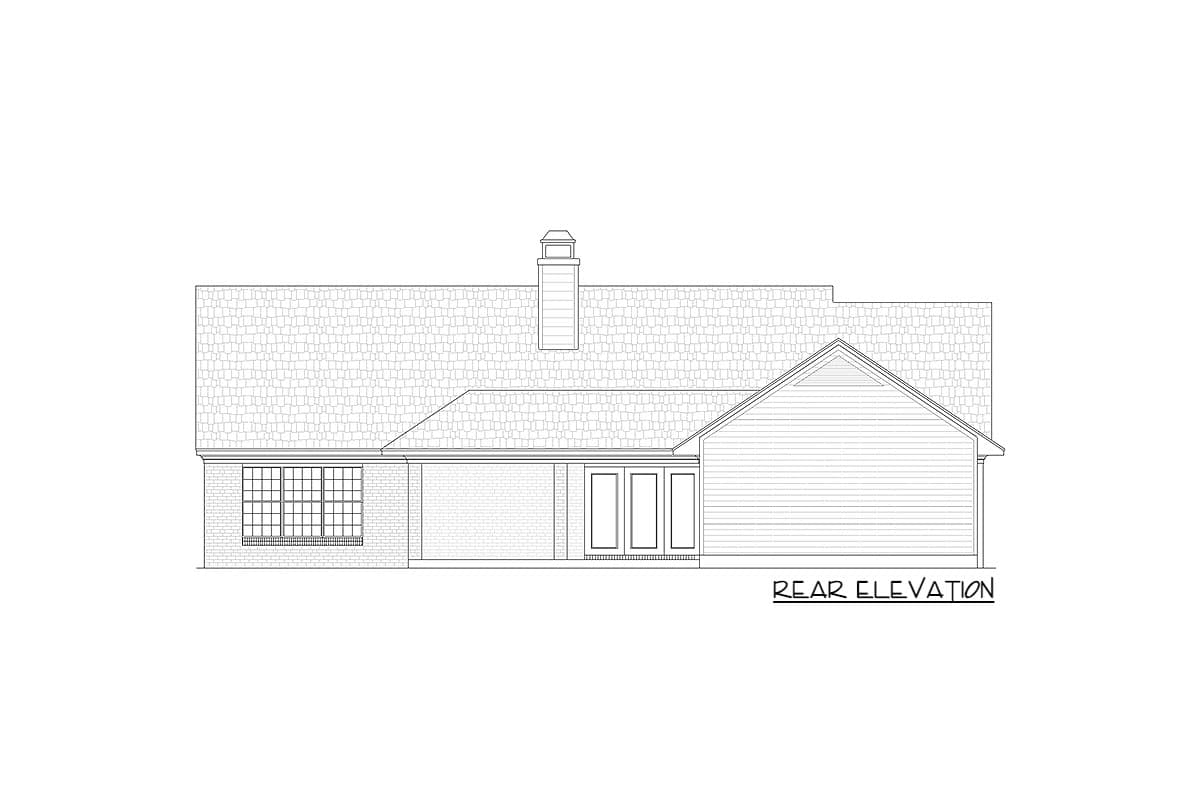

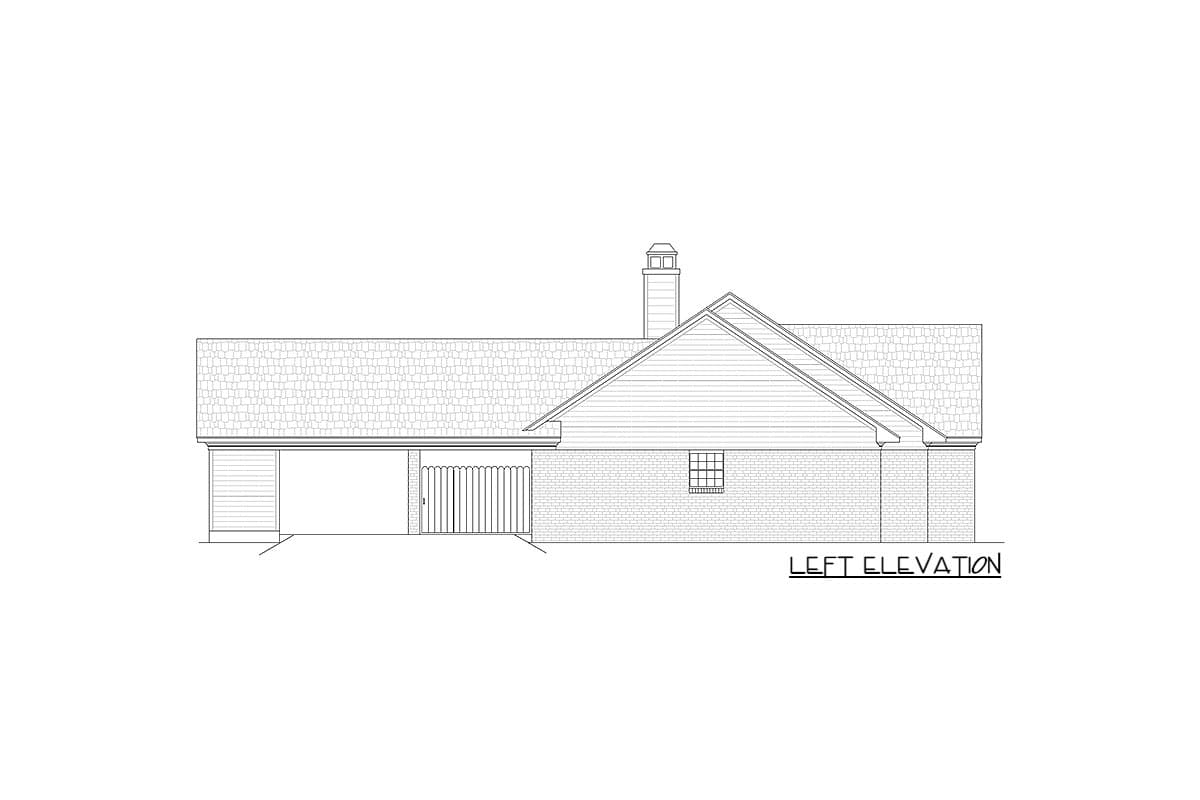

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming One-Story Traditional Home Plan

  • 1,898

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,898 sq. ft.
  • 1st Floor: 1,898 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 65' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Carport
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
