Charming Ranch Duplex House Plan with 4 Beds and 2-Car Garage

Heated S.F.
2,182
Units
2
Width
Depth

Floor Plan

Plan 42490DB

Main Level
Main Level

Plan 42490DB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 42490DB: Charming Ranch Duplex House Plan with 4 Beds and 2-Car Garage - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This traditional ranch-style duplex offers a total of 2,182 finished sq ft, with 4 bedrooms and 4 full bathrooms across two units, each with an attached 2-car garage totaling 618 sq. ft.
  • Each unit features a welcoming front entry that opens into a thoughtfully designed living space.
  • The main living areas provide a comfortable flow, ideal for daily living and casual gatherings.
  • The primary suite in each unit is conveniently located on the first floor, offering privacy and accessibility.
  • A butler's pantry provides a dedicated space for kitchen convenience and storage.
  • Enjoy the convenience of main-level laundry in both units.
  • Each unit includes an unfinished basement area of 309 sq. ft. offering potential for future customization.
Unit A & B
Heated Area
1,091Sq. Ft.
1091 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Standard
154 Sq. Ft.
Dimensions
30'width
50'depth
Unfinished Areas
154 Sq. Ft. Garage
309 Sq. Ft. Basement Unfinished

What's Included

  • General Notes

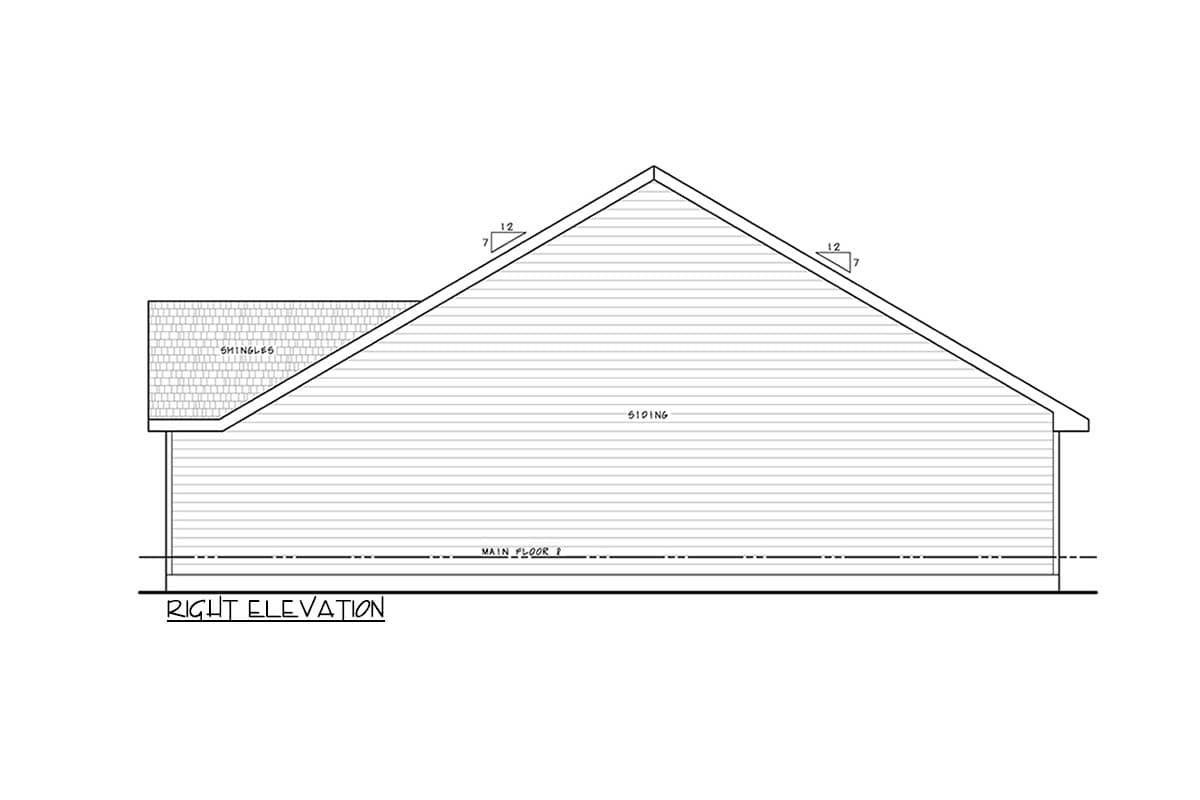

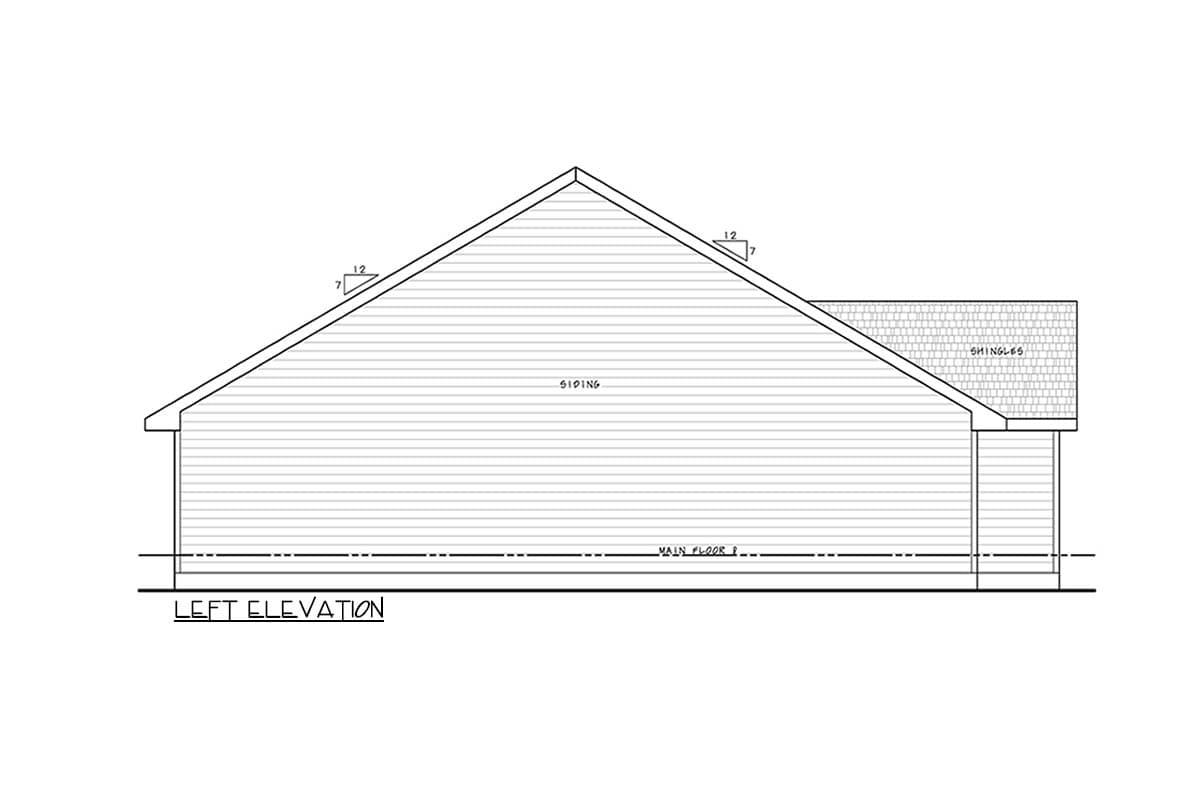

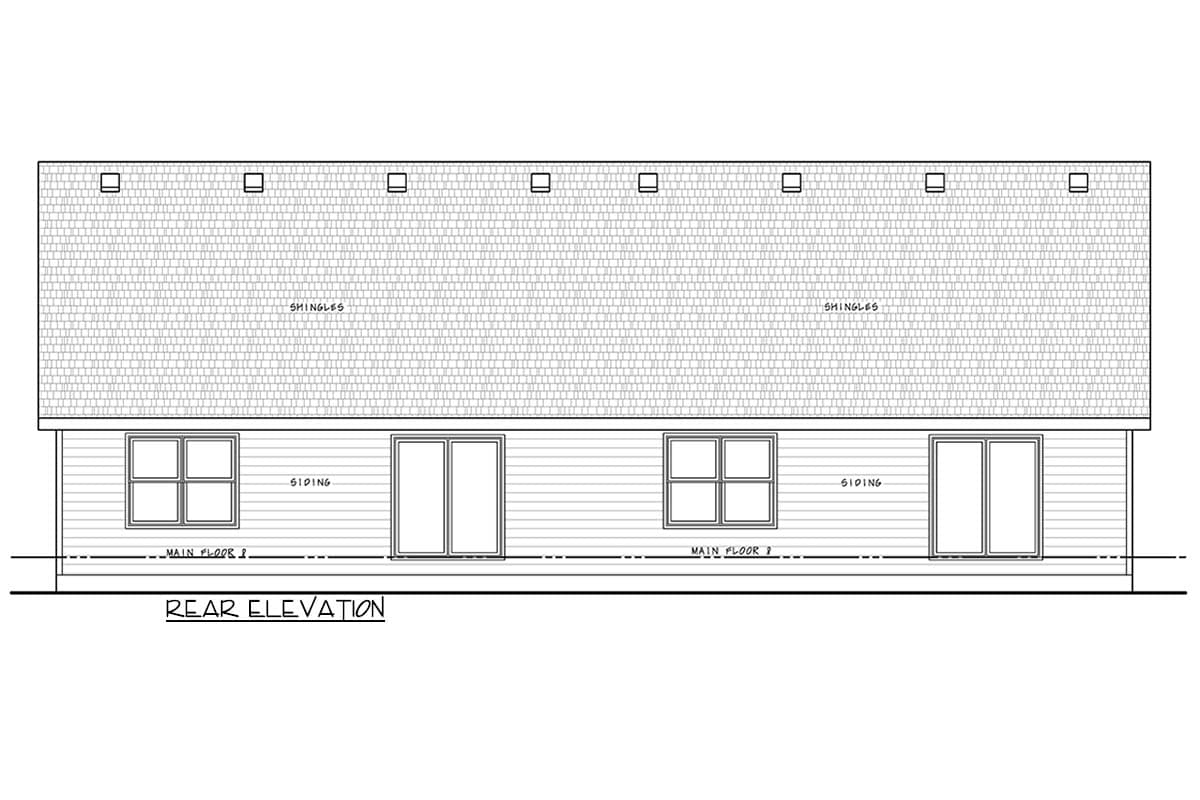

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section

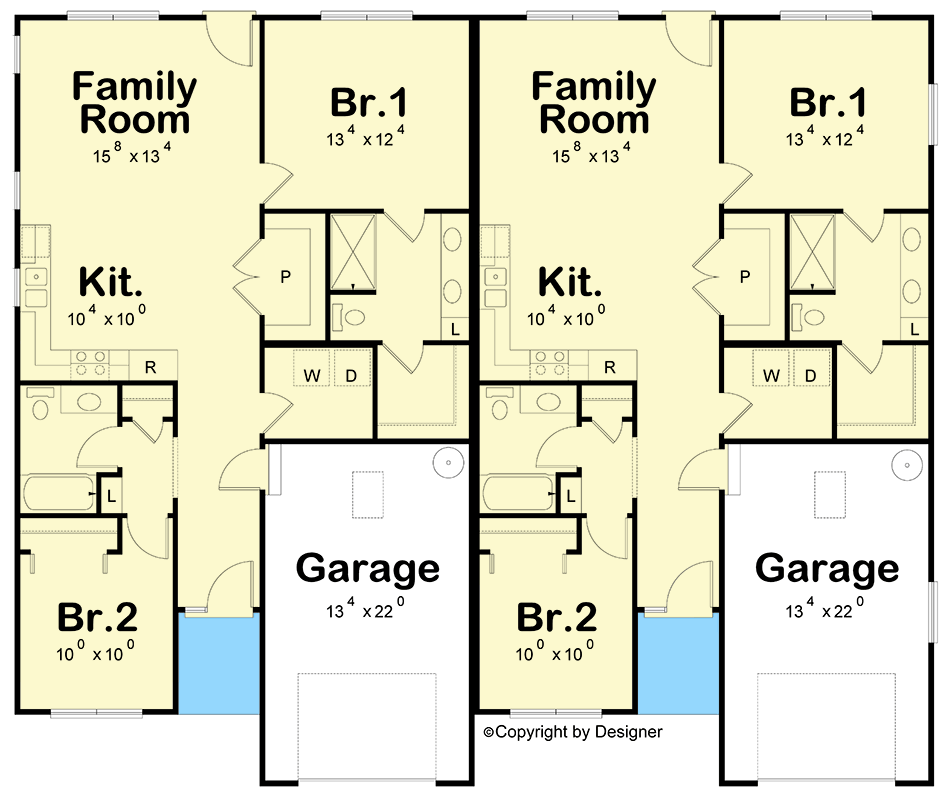

  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,182 sq. ft.

1st Floor

2,182 sq. ft.

Basement Unfinished

309 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

50' 4"

Max Ridge Height

24' 0"

Garage

Type

Standard, Attached

Area

618 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,182 sq. ft.

1st Floor

2,182 sq. ft.

Basement Unfinished

309 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

60' 0"

Depth

50' 4"

Max Ridge Height

24' 0"

Garage

Type

Standard, Attached

Area

618 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
