Plan 750019LDG

Charming Ranch House Plan: 3 Beds, Split Layout, Formal Dining

Heated S.F.
1,460
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 750019LDG

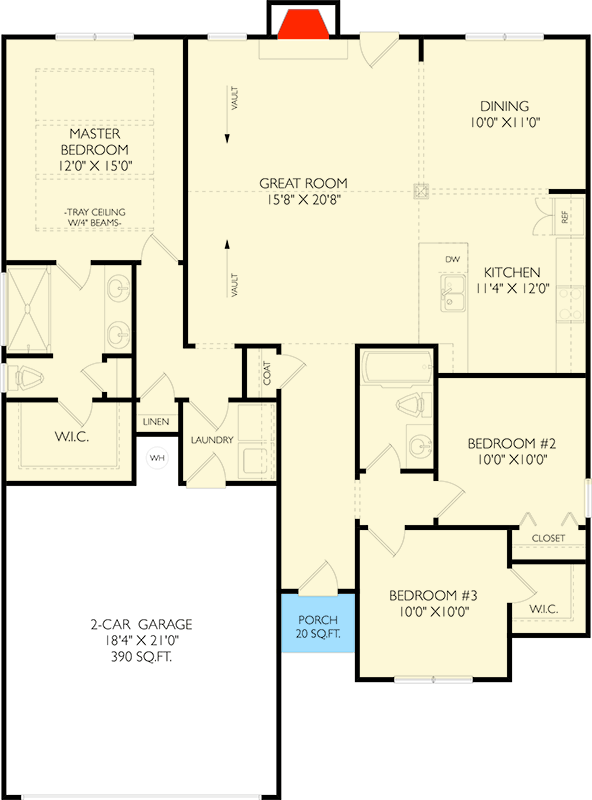

Main Level
Main Level

Plan 750019LDG

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 750019LDG: Charming Ranch House Plan: 3 Beds, Split Layout, Formal Dining - Floor Plan - Main Level - Country, Ranch, Traditional

Plan Details

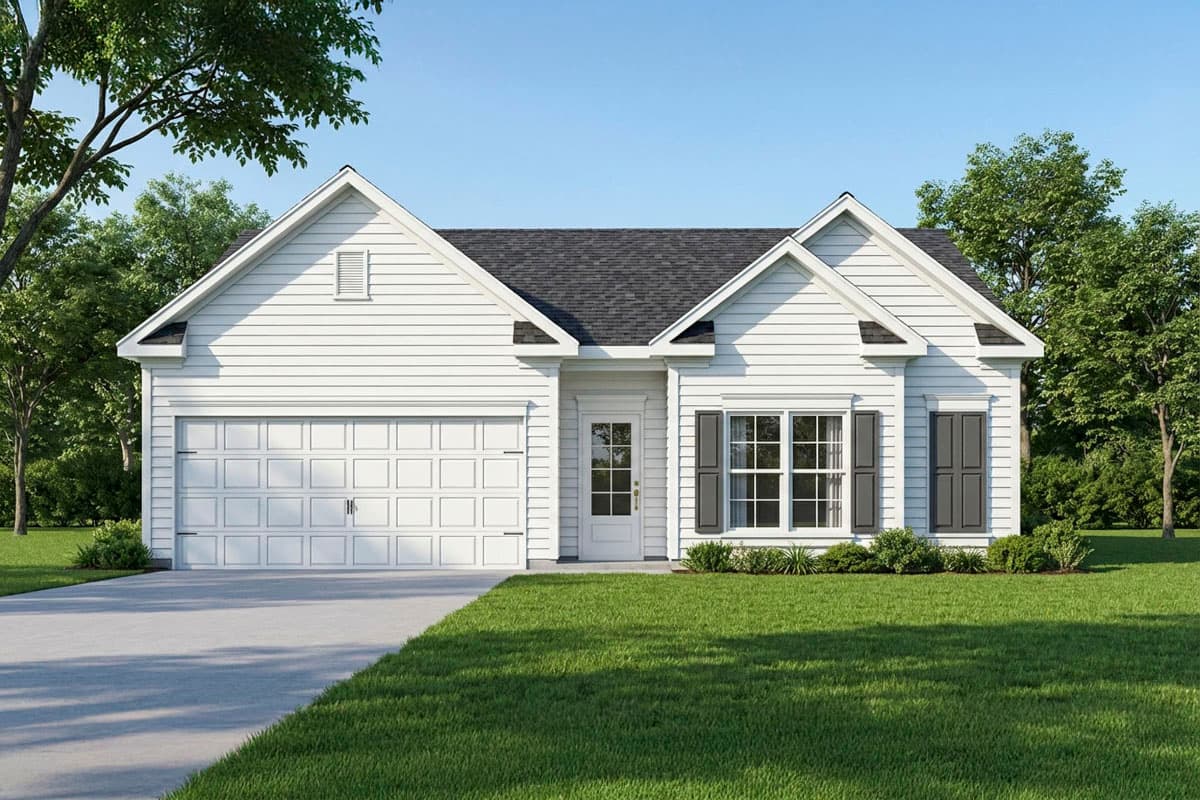

  • This inviting 1,460 sq. ft. Country Ranch House Plan offers 3 bedrooms, 2 full bathrooms, and a spacious 390 sq. ft. two-car garage, all wrapped in a timeless traditional exterior.
  • Step inside to discover a thoughtfully designed layout, where the entry foyer leads directly into the main living spaces, emphasizing an open-concept flow ideal for modern living.
  • The heart of the home features a seamless connection between the kitchen and dining area, creating an effortless flow for daily meals and entertaining. A dedicated formal dining room offers an elegant space for special occasions.
  • The luxurious master suite, located on the first floor, boasts a tray ceiling rising to 10' 1'' for an expansive feel, and is privately situated on one side of the home. Two additional bedrooms are thoughtfully placed on the opposite side, ensuring privacy with a desirable split-bedroom layout.
  • A practical mudroom and a conveniently located main-level laundry room enhance daily functionality and organization.

What's Included

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,460 sq. ft.

1st Floor

1,460 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

52' 0"

Max Ridge Height

20' 7"

Garage

Type

Standard

Area

390 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Room

Ceiling Type

Height

Master Bedroom

Tray

10' 1''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,460 sq. ft.

1st Floor

1,460 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

52' 0"

Max Ridge Height

20' 7"

Garage

Type

Standard

Area

390 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Room

Ceiling Type

Height

Master Bedroom

Tray

10' 1''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
