Plan 1766LV
Charming Shingle Style Cottage
Heated S.F.
2,443
Beds
3
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details
  • Varied roof lines, a courtyard-style garage and arched window detailing contribute to the pleasant ambiance of this shingle-clad cottage.
  • Double doors within an arch open to the foyer, from which one can turn to the formal dining room on one side or proceed to the open living area ahead.
  • From the two-story fireplaced family room, double doors access a spacious patio in back measuring 29'5" at its widest and 12' deep.
  • Completing the living area are a bayed breakfast area and a generously sized kitchen with a pantry closet and both a central work island and an angled island with double sinks and an eating bar.
  • Set in its own wing, the master suite has a tray ceiling and a sitting area in the bedroom. The suite also contains twin walk-in closets and an opulent bath with his and her vanities, a garden tub and a separate shower.
  • Upstairs, you'll find a bonus room and two bedroom suites plus plenty of storage.
  • Related Plan: Gain a rec room upstairs with house plan 17524LV.

























What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming Shingle Style Cottage

  • 2,443

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

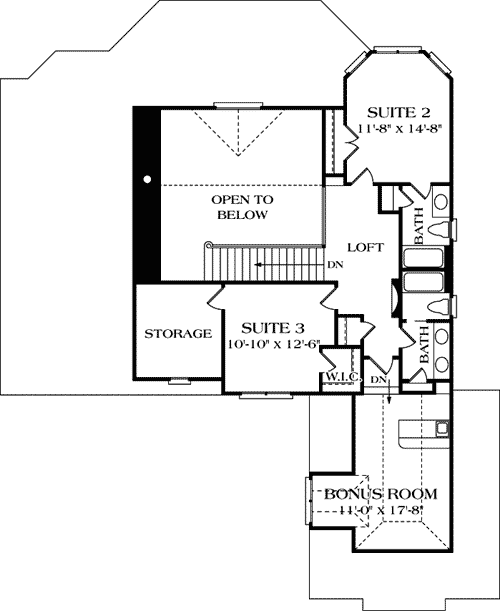

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,443 sq. ft.
  • 1st Floor: 1,758 sq. ft.
  • 2nd Floor: 685 sq. ft.

Dimensions

  • Width: 55' 10"
  • Depth: 63' 6"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 515 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
