Plan 5935ND

Charming Southern Ranch House Plan with Flex Space and Grilling Porch

Heated S.F.
1,601
Beds
2 - 3
Baths
2
Stories
1
Cars
2

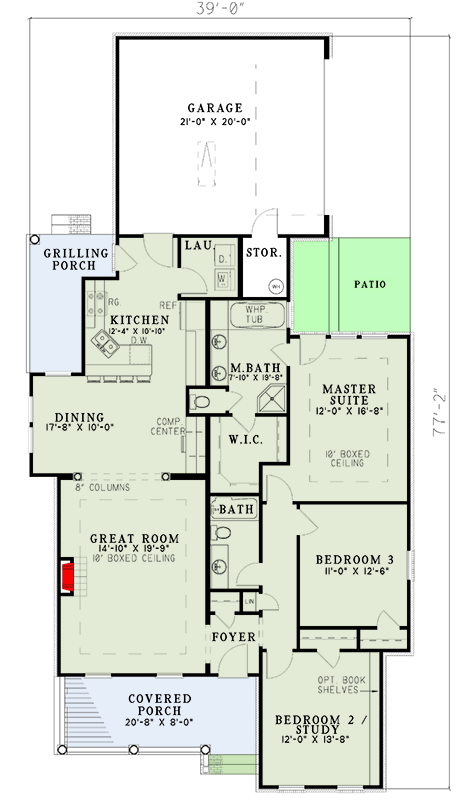

Floor Plan

Plan 5935ND

Main Level
Main Level

Plan 5935ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 5935ND: Charming Southern Ranch House Plan with Flex Space and Grilling Porch - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • This inviting 1,601 sq. ft. Southern Traditional Ranch house plan offers 2 to 3 bedrooms, 2 full bathrooms, and an attached 771 sq. ft. side-entry two-car garage.
  • Step inside from the expansive covered front porch into a welcoming foyer that immediately opens to the spacious Great Room, designed for comfortable everyday living and gathering.
  • The open-concept layout seamlessly connects the Great Room, featuring a 10-foot boxed ceiling, to the elegant dining area and a well-appointed kitchen. The kitchen boasts a convenient breakfast nook and a large walk-in butler's pantry, simplifying meal prep and storage.
  • The private master suite, located on the main level, offers a serene retreat with a 10-foot boxed ceiling, a generous walk-in closet, and a luxurious private bathroom. A secondary bedroom (Bedroom 3) is thoughtfully placed nearby, while the versatile flex room at the front of the home can serve as a quiet study, library, or a comfortable third bedroom.
  • Beyond its primary living spaces, this home features a dedicated laundry room on the main level for convenience, and the butler's walk-in pantry provides ample storage and a dedicated area for culinary organization.
  • Outdoor living is embraced with a welcoming 165 sq. ft. covered front porch, perfect for enjoying a quiet morning coffee, and a 114 sq. ft. grilling porch at the rear, ideal for outdoor dining and entertaining on the adjacent patio.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,601 sq. ft.

1st Floor

1,601 sq. ft.

Porch, Front

165 sq. ft.

Porch, Rear

114 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

77' 2"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

771 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,601 sq. ft.

1st Floor

1,601 sq. ft.

Porch, Front

165 sq. ft.

Porch, Rear

114 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

77' 2"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

771 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry
