Plan 54043LK

Charming Southern Ranch with Spacious Porch and Modern Amenities

Heated S.F.
2,257
Beds
4
Baths
3
Stories
1
Cars
2

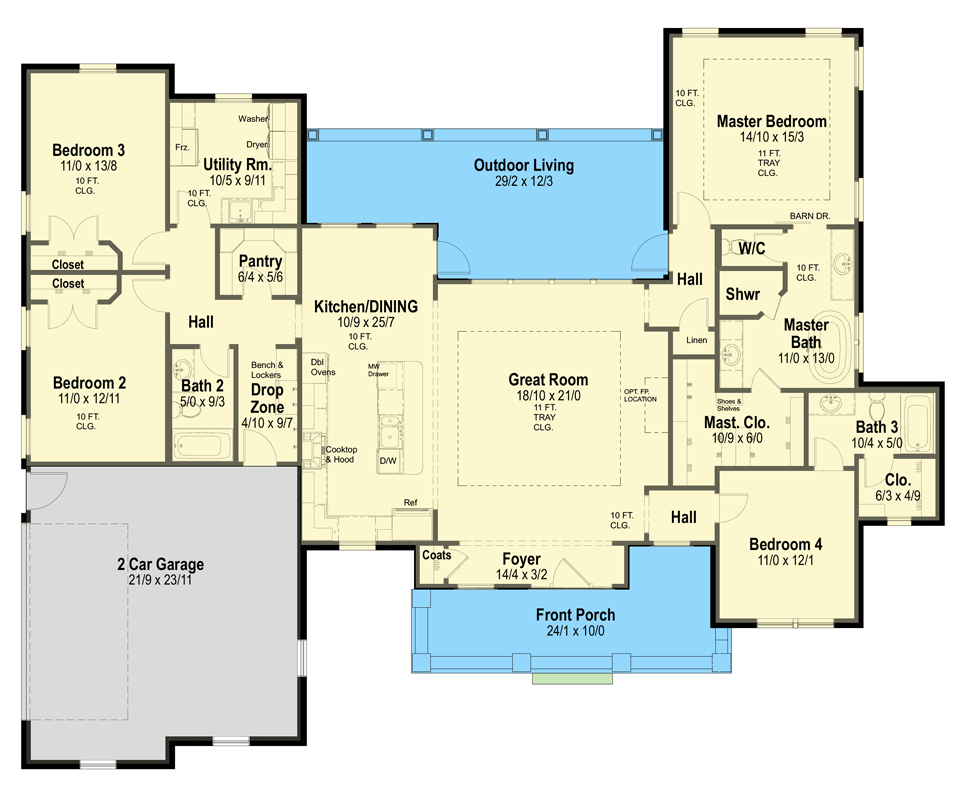

Floor Plan

Plan 54043LK

Main Level
Main Level

Plan 54043LK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 54043LK: Charming Southern Ranch with Spacious Porch and Modern Amenities - Floor Plan - Main Level - Country, Ranch, Southern, Traditional

Plan Details

  • Experience 2,257 sq. ft. of elegant living with 4 bedrooms, 3 baths, and a 525 sq. ft. 2-car garage. This Southern Ranch-style home embodies country charm with traditional flair.
  • As you step into the inviting foyer, the open-concept great room welcomes you with high ceilings and a seamless flow to the kitchen and dining area, perfect for both family time and formal gatherings.
  • The heart of the home features a spacious kitchen complete with a butler walk-in pantry, making meal preparation a delight, and a cozy dining nook overlooking the backyard.
  • The master suite is a private retreat on the main floor, featuring a stylish barn door, dual closets, and a luxurious ensuite bath. The additional bedrooms are thoughtfully clustered for privacy and convenience.
  • Enjoy the expansive outdoor living space, ideal for entertaining or tranquil mornings, with both front and rear porches offering delightful options for relaxing outdoors.

What's Included

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,257 sq. ft.

1st Floor

2,257 sq. ft.

Porch, Front

201 sq. ft.

Porch, Rear

318 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 5"

Depth

60' 6"

Max Ridge Height

23' 7"

Garage

Type

Attached

Area

525 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
