Plan 52580WM

Charming Three Bedroom Cottage House Plan with Attached One-Car Garage

Heated S.F.
1,454
Beds
3
Baths
3
Stories
2
Cars
1
Tour

Floor Plan

Plan 52580WM

Main Level
Main Level
2nd Level
2nd Level

Plan 52580WM

M-F 9am-5pm EST |

1-203-761-8500

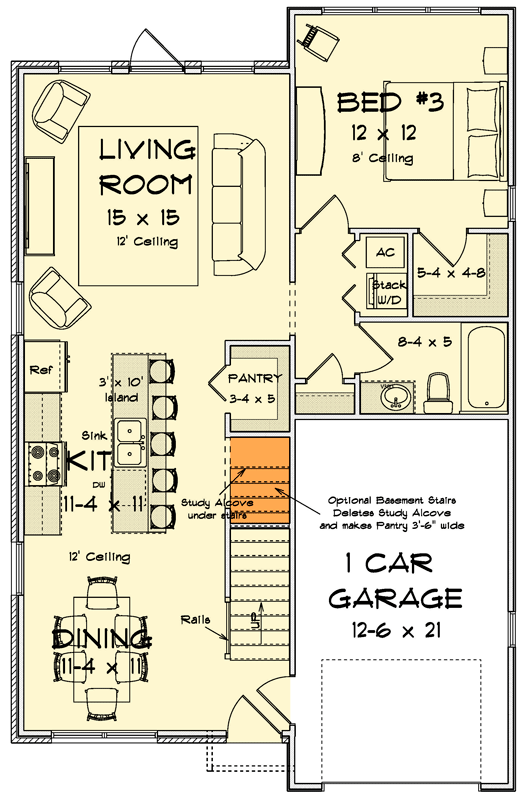

Main Level

Plan 52580WM: Charming Three Bedroom Cottage House Plan with Attached One-Car Garage - Floor Plan - Main Level - Cottage, Traditional

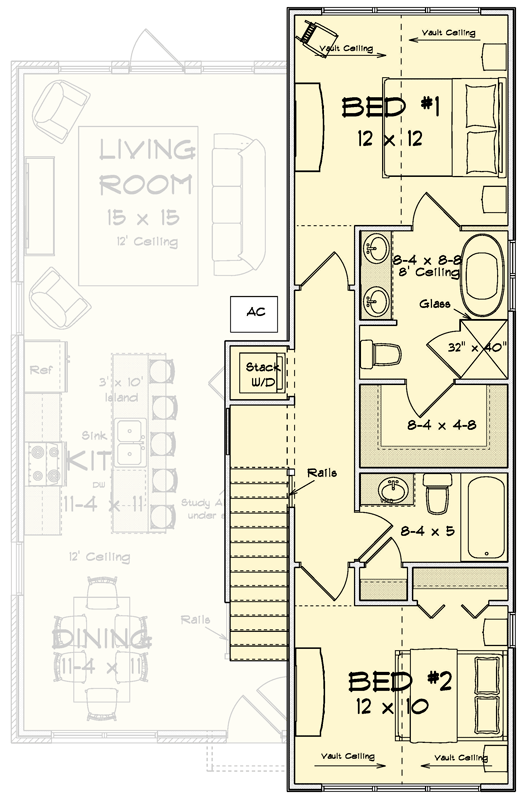

2nd Level

Plan 52580WM: Charming Three Bedroom Cottage House Plan with Attached One-Car Garage - Floor Plan - 2nd Level - Cottage, Traditional

Plan Details

  • This charming cottage house plan offers 1,454 finished square feet, three bedrooms, three full bathrooms, and a convenient one-car attached garage.
  • The welcoming front entrance leads into a thoughtfully designed layout that balances traditional comfort with modern functionality.

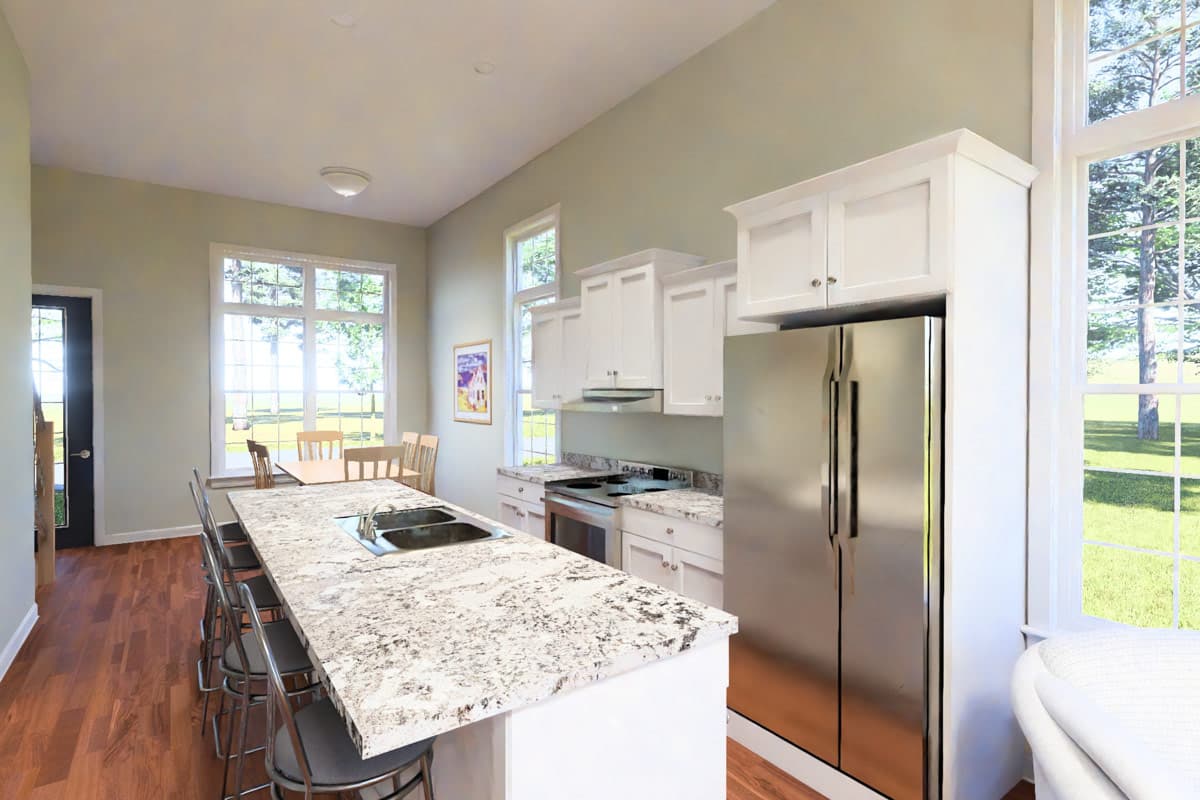

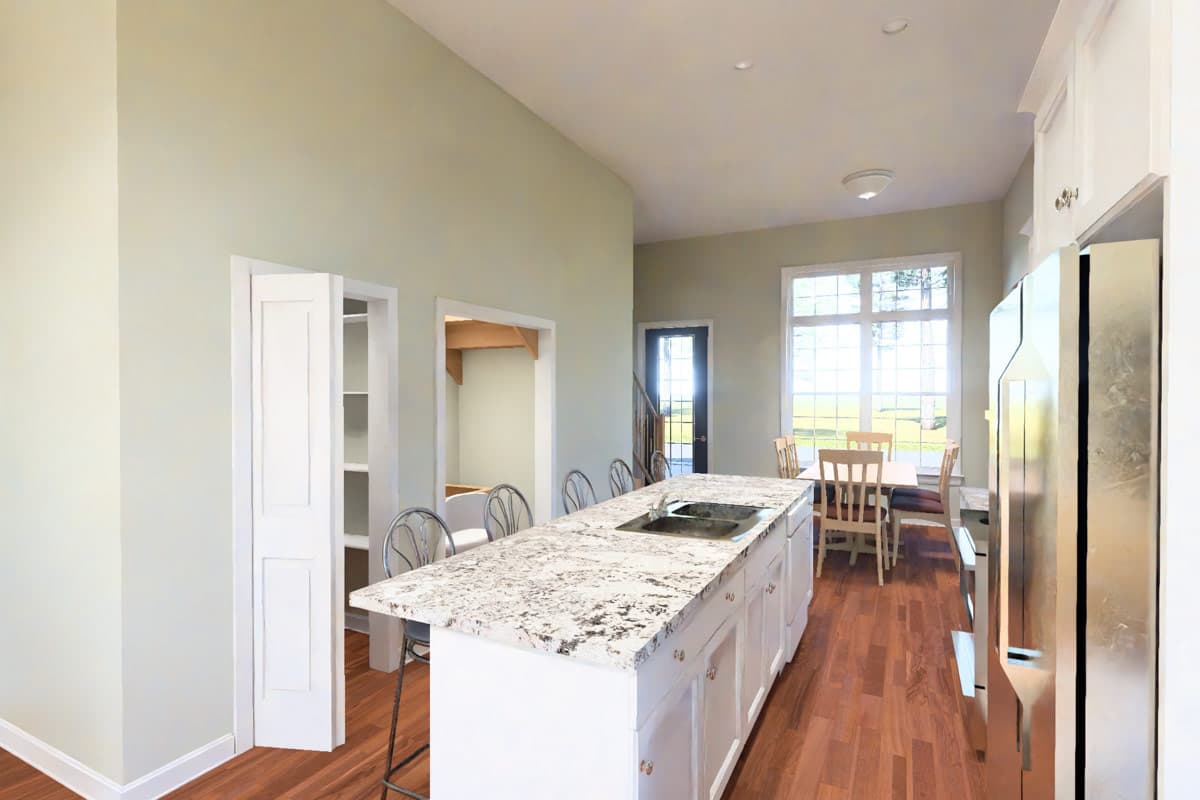

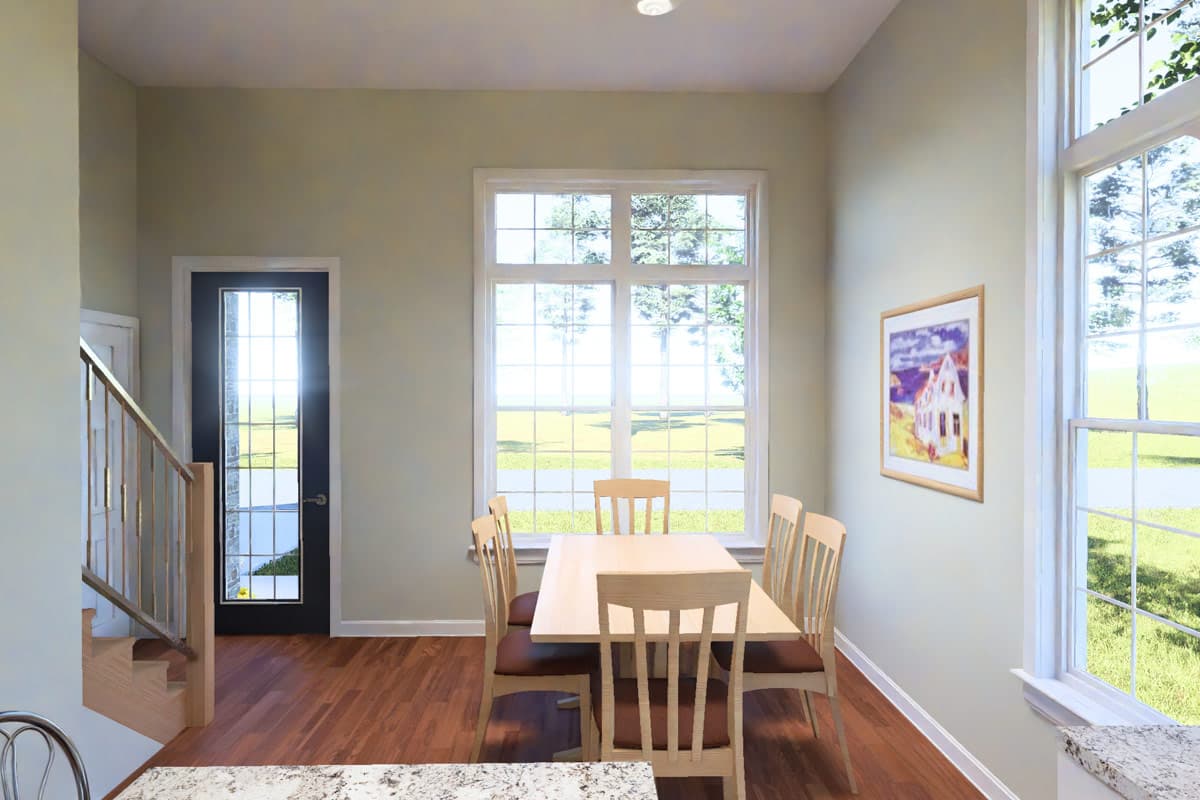

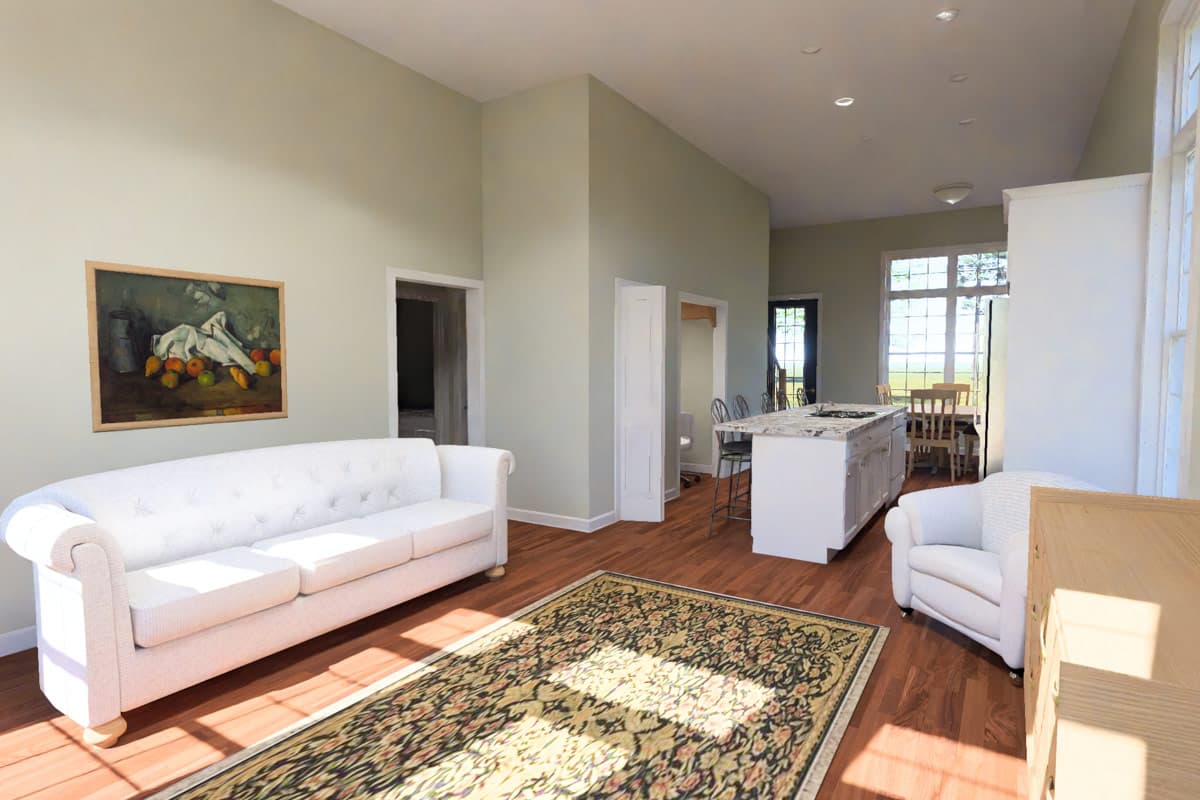

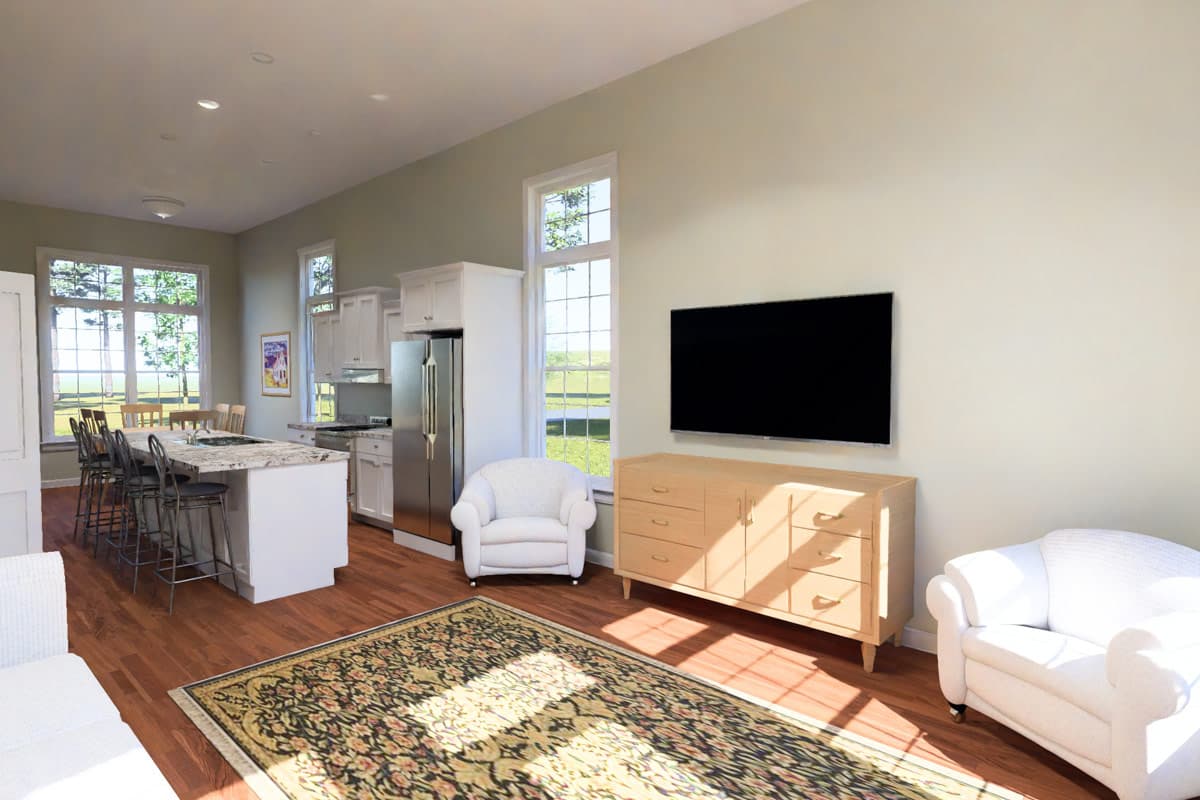

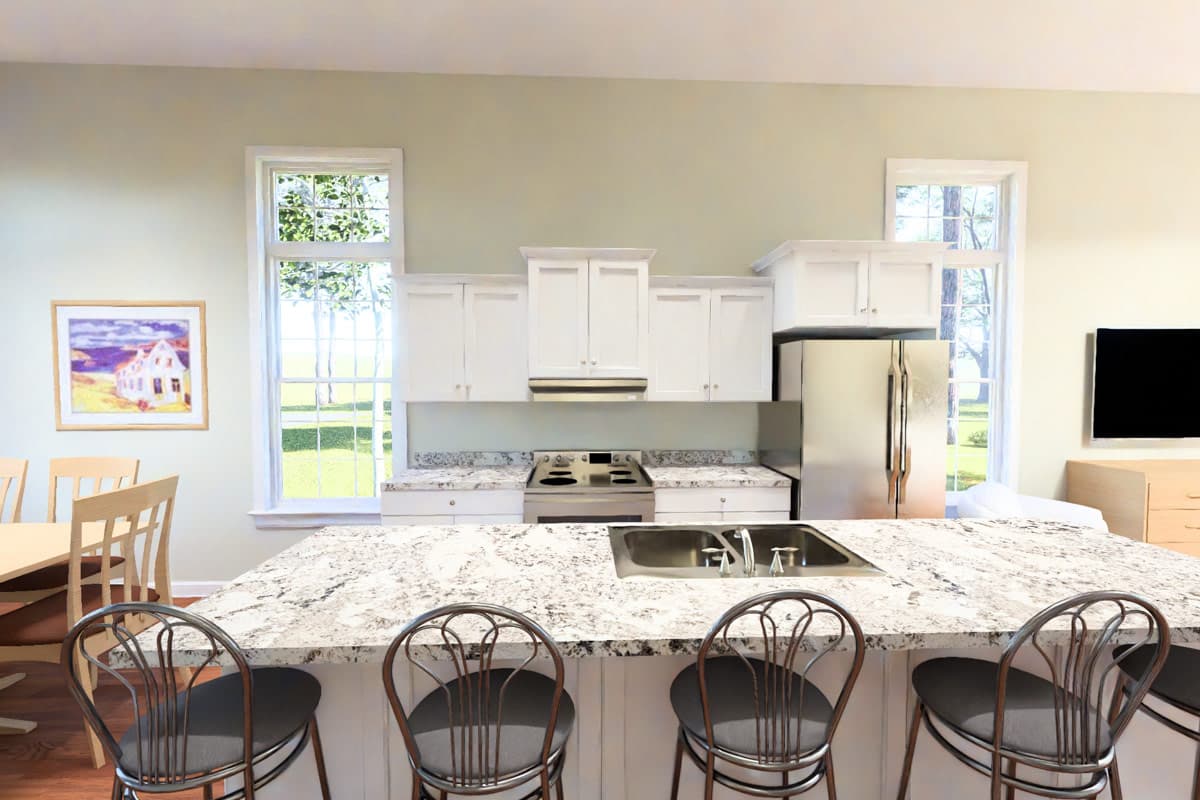

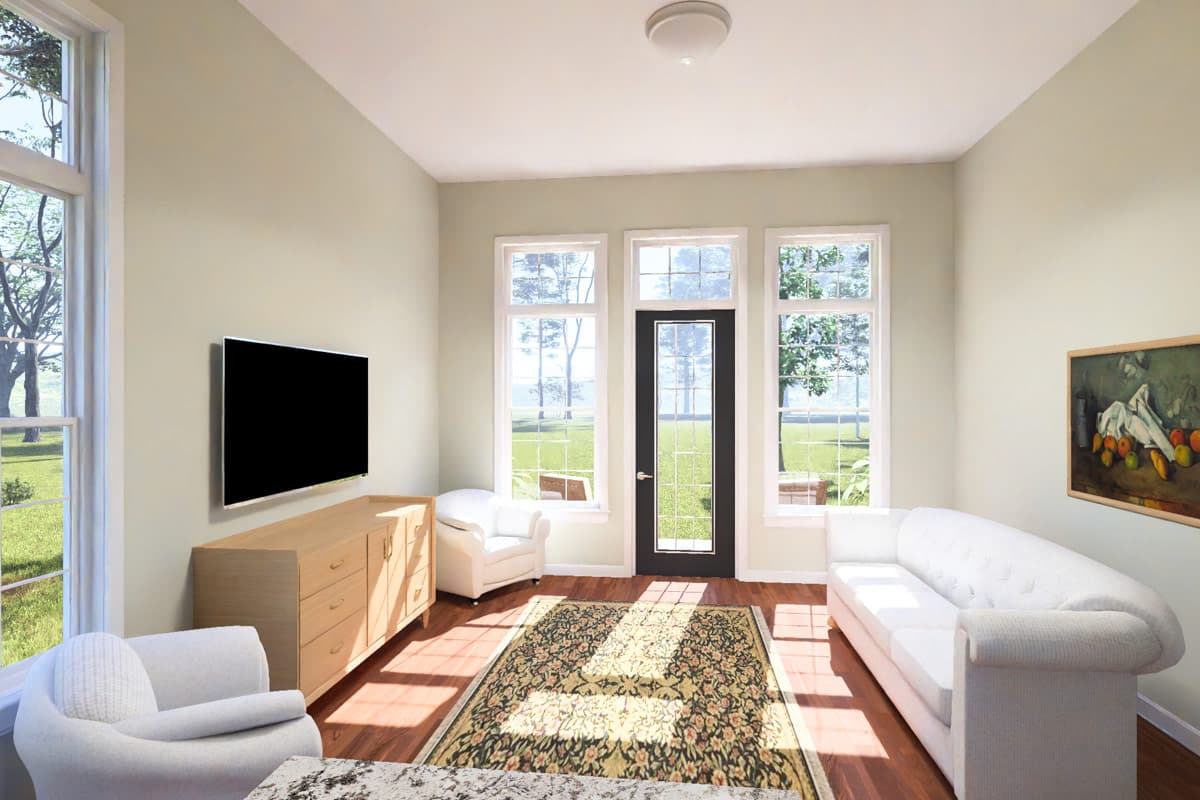

  • The main living area creates a seamless flow, featuring an open-concept space that integrates a bright breakfast nook and a chef-ready kitchen with a walk-in pantry.

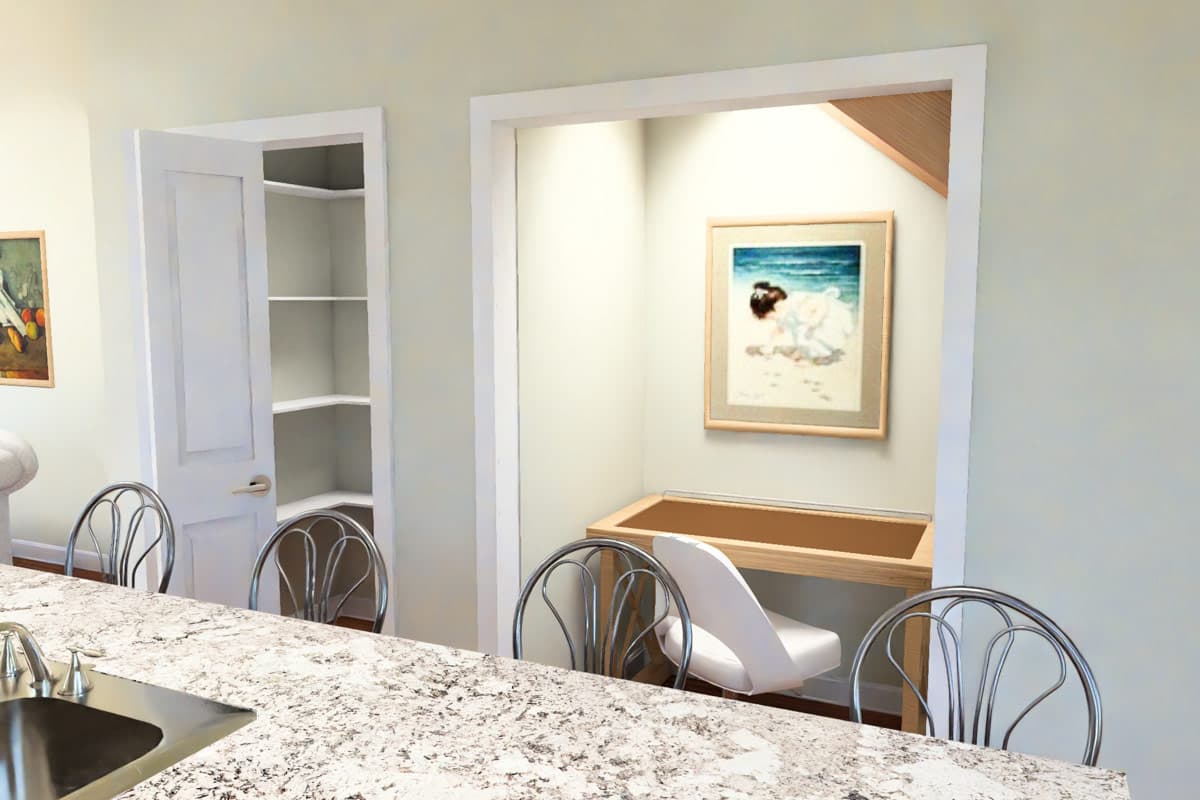

  • A versatile den or library provides a quiet space for a home office, while the primary suite offers a private retreat separate from the secondary bedrooms.
  • The floor plan maximizes every square inch, incorporating dedicated laundry facilities on both the main and upper levels for effortless household management.

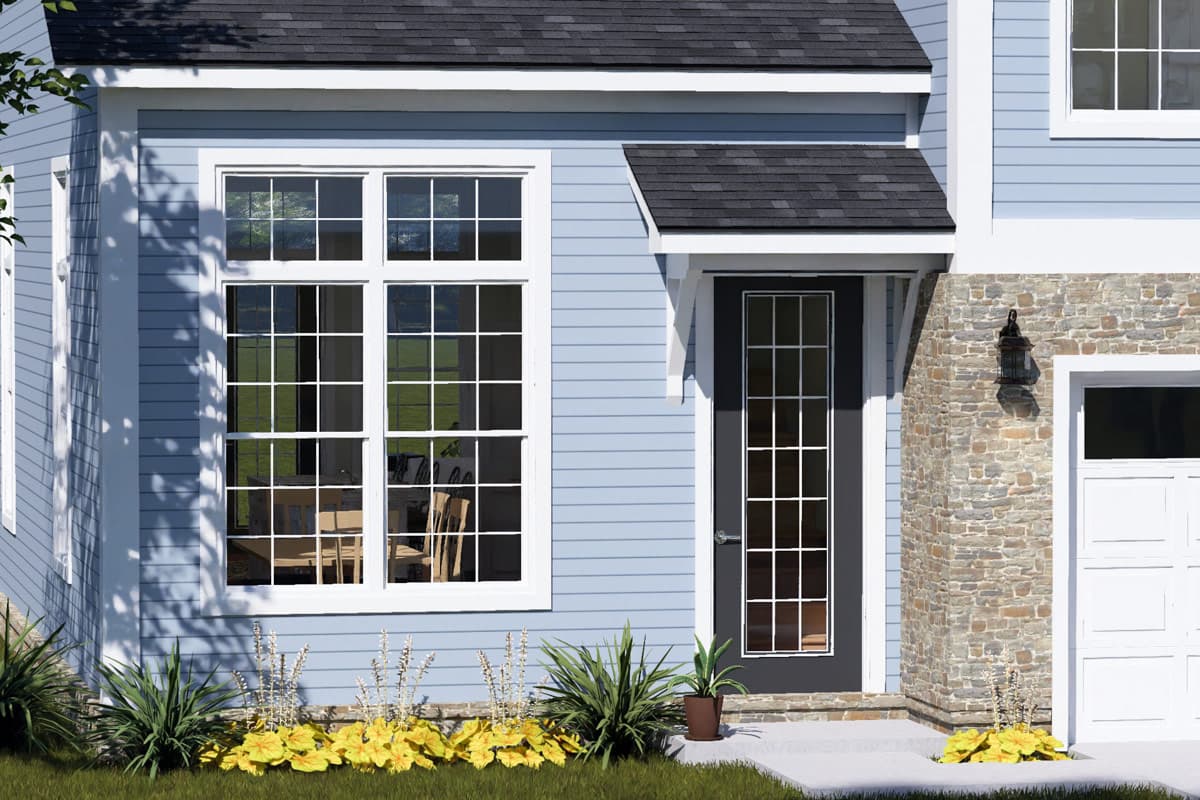

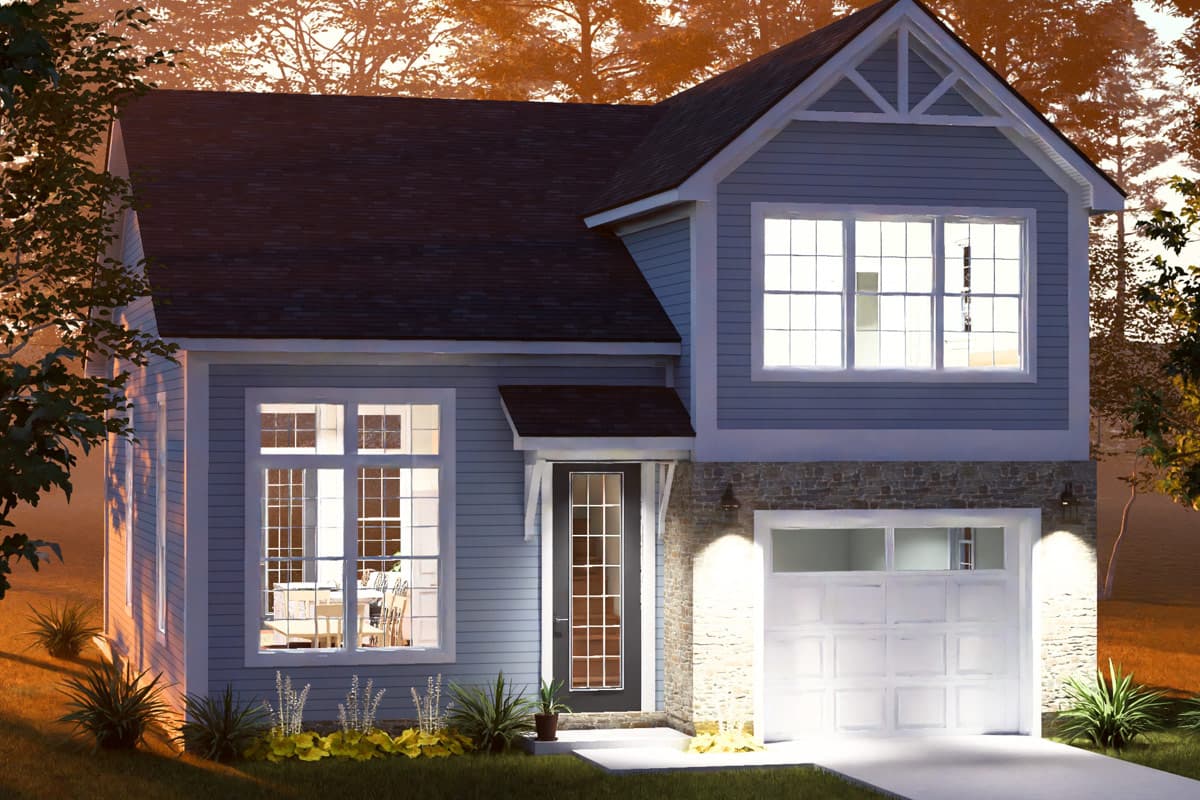

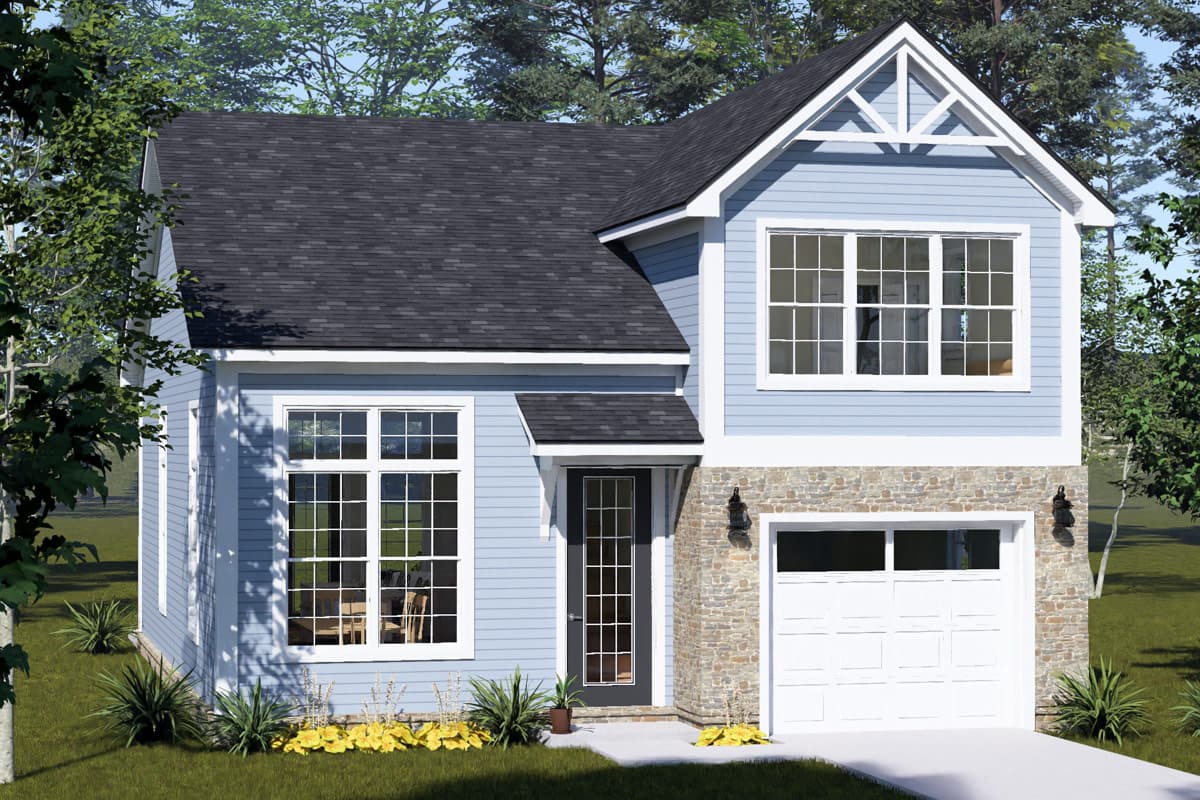

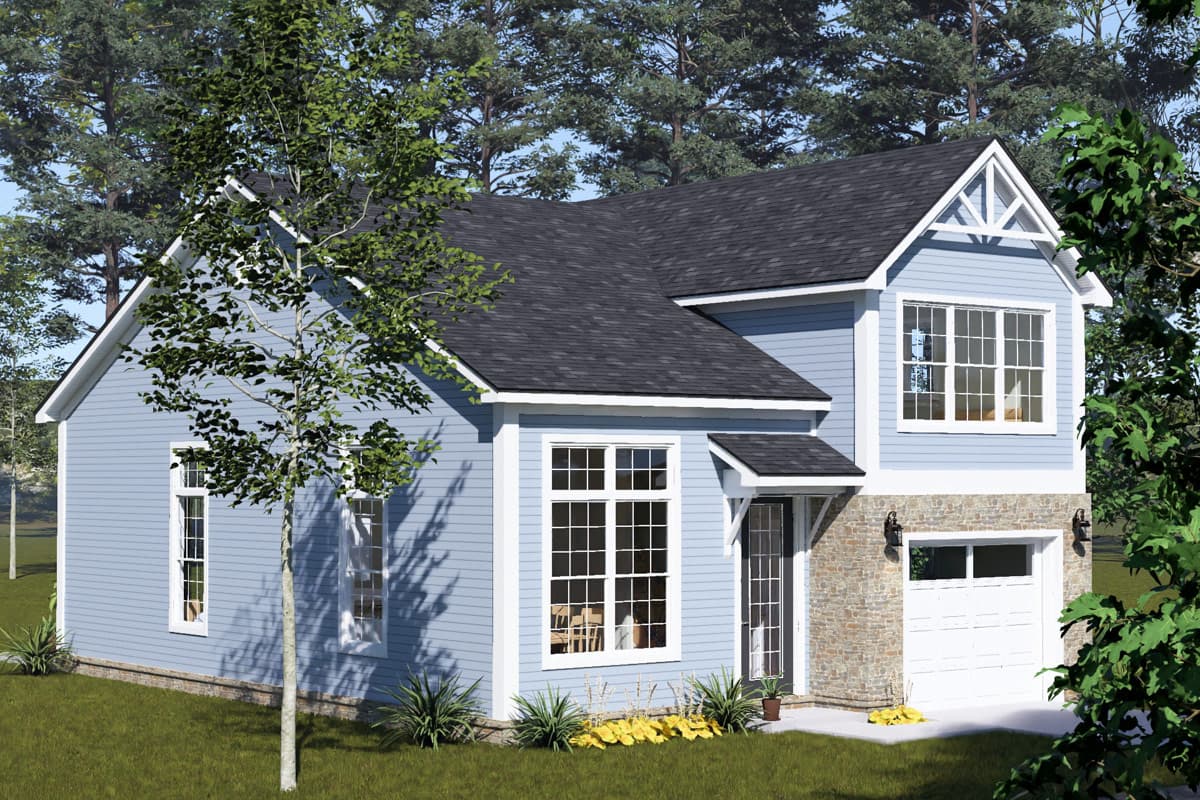

  • The exterior showcases a timeless aesthetic with stone accents and crisp siding, perfectly suited for a narrow lot or cozy neighborhood setting.

What's Included

  • Front elevation and construction notes

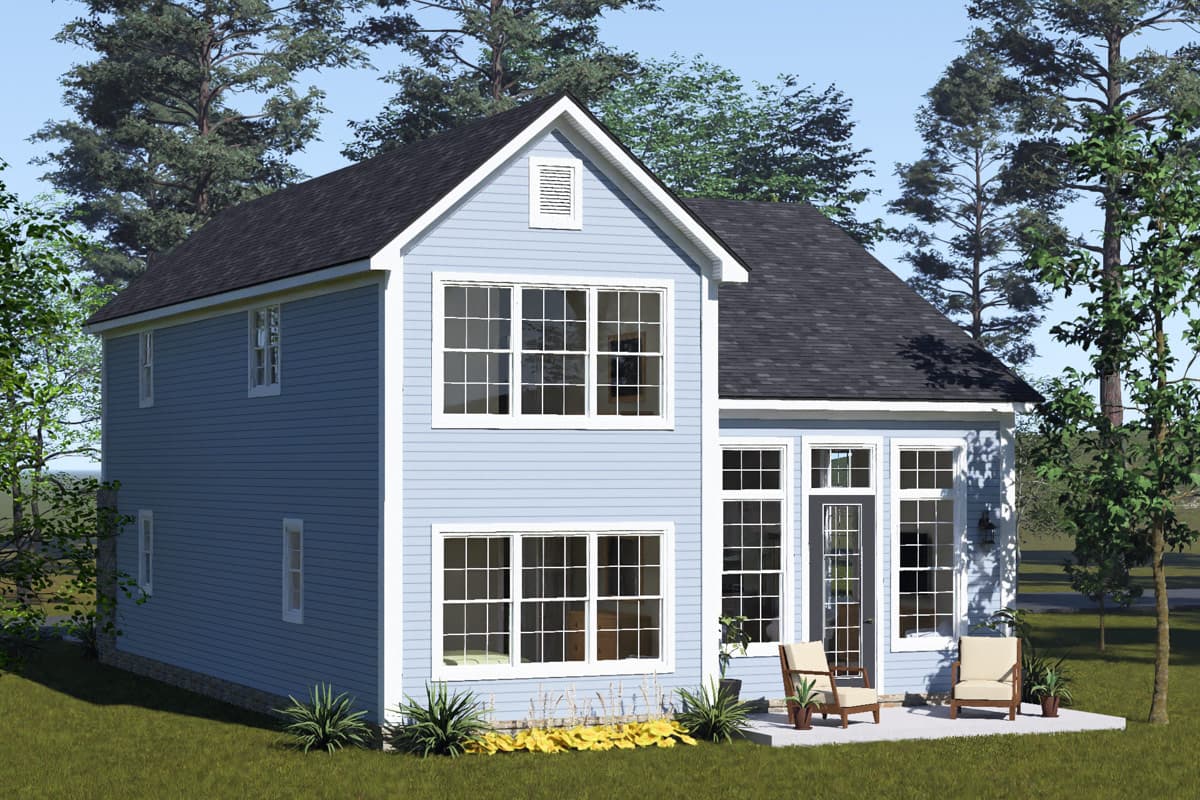

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

1,454 sq. ft.

1st Floor

870 sq. ft.

2nd Floor

584 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

44' 0"

Max Ridge Height

22' 10"

Garage

Type

Standard, Attached

Area

266 sq. ft.

Count

1 Cars

Entry Location

Front

Architectural Style

Cottage

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Laundry - Main Level

Laundry - Upstairs

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Home Office Studio

Unlimited Build License
