Plan 72814DA
Charming Traditional Home Plan
Heated S.F.
2,102
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Painted wooden shutters give a traditional look to this ranch-style home. Columns and a trio of gables add to the nostalgic front faзade.
  • The recessed porch opens into a short foyer that feeds into a bright and spacious great room. As you step into this room, you can gaze out a wide expanse of glass to the covered patio and landscape beyond. A gas fireplace nestles into a corner by the rear windows.
  • This relaxed gathering space is completely open to the kitchen and dining room on the left. A work island with built-in sink and dishwasher provides partial separation. The eating bar on one side is handy for snacking, homework supervision, and chatting with people working in the kitchen. A step-in pantry is in the passageway that leads to a good-sized utility room and the two-car garage.
  • The den, off the dining room, could be used as a home office, craft/sewing room, or whatever suits. Bedrooms are accessed via a short hallway on the right side of the foyer.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

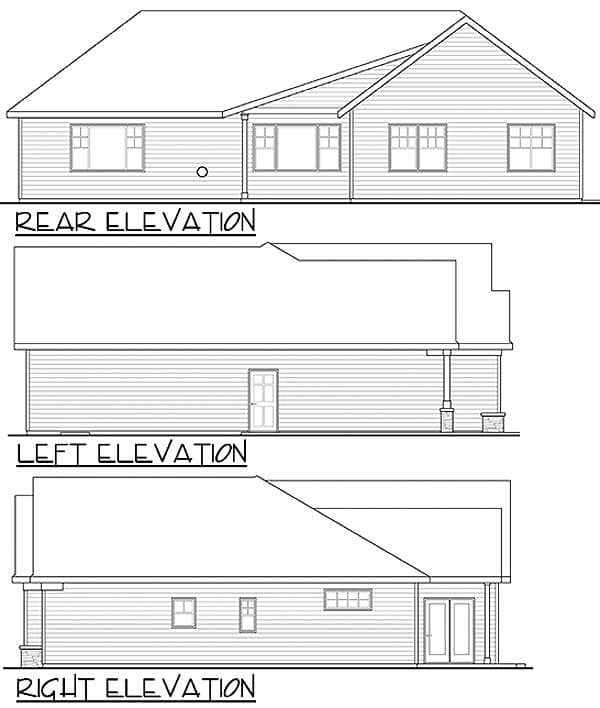

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

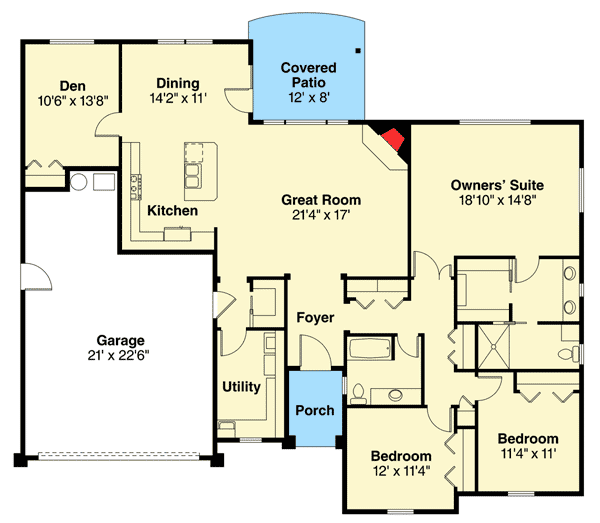

  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming Traditional Home Plan

  • 2,102

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,102 sq. ft.
  • 1st Floor: 2,102 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 53' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 10 on 12
