Plan 95302RW

Charming Traditional Pool House Plan with Studio and Full Bath

Heated S.F.
416
Beds
0
Baths
1
Stories
1

Floor Plan

Plan 95302RW

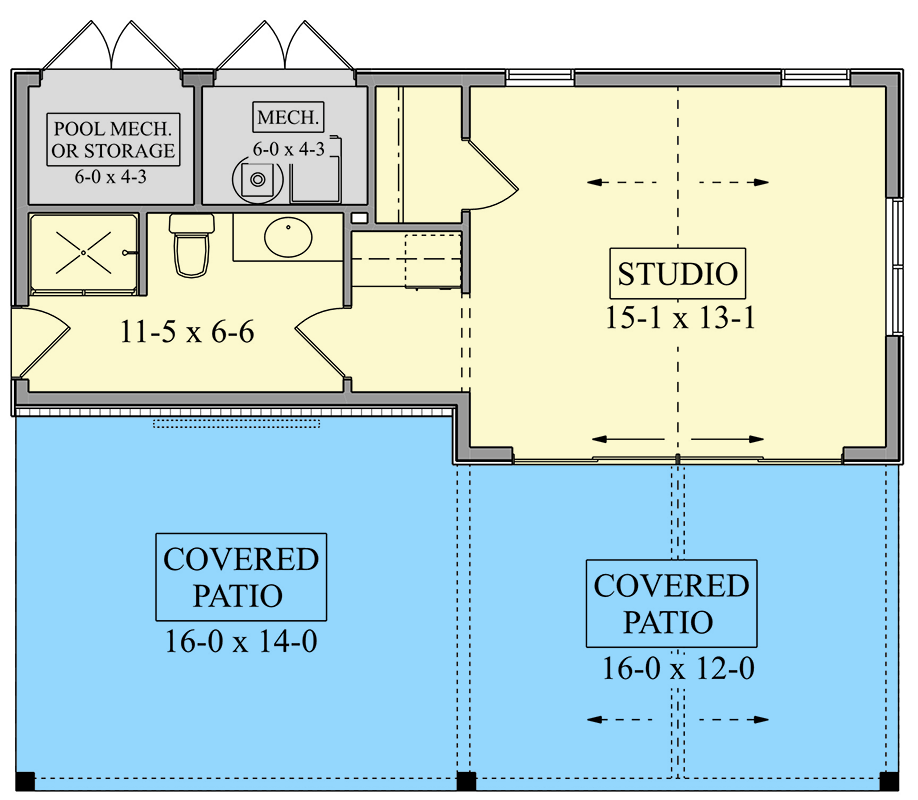

Main Level
Main Level

Plan 95302RW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 95302RW: Charming Traditional Pool House Plan with Studio and Full Bath - Floor Plan - Main Level - Traditional

Plan Details

  • This charming 416 sq ft Traditional style pool house features a convenient full bathroom and an expansive 416 sq ft covered patio, perfect for poolside living.
  • Step directly into the versatile studio space, designed with a 10-foot ceiling to create an airy atmosphere, ideal for a comfortable lounge, game room, or fitness area, offering seamless indoor-outdoor living.
  • Adjacent to the studio, a well-appointed full bathroom provides essential convenience for guests and bathers, while two dedicated mechanical rooms ensure discrete storage for pool equipment and utilities.
  • An expansive 416 sq ft covered patio extends across the front, offering a shaded retreat for al fresco dining, entertaining, or simply relaxing by the pool, complete with ample space for an outdoor media setup.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

416 sq. ft.

1st Floor

416 sq. ft.

Deck & Porch

416 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

26' 0"

Max Ridge Height

17' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Architectural Style

Traditional

Plan Collections

Pool House

Square Footage Breakdown

Total Heated Area

416 sq. ft.

1st Floor

416 sq. ft.

Deck & Porch

416 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

26' 0"

Max Ridge Height

17' 0"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Architectural Style

Traditional

Plan Collections

Pool House
