Plan 83602CRW

Charming Traditional Split-Bedroom Ranch House Plan

Heated S.F.
1,260
Beds
3
Baths
2
Stories
1
Tour

Floor Plan

Plan 83602CRW

Main Level
Main Level

Plan 83602CRW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 83602CRW: Charming Traditional Split-Bedroom Ranch House Plan - Floor Plan - Main Level - Country, Ranch, Traditional

Plan Details

  • Loaded with traditional charm, this 3-bedroom ranch home plan features an appealing clapboard exterior and a covered walk-up front entry.
  • Just inside, a vaulted family room and convenient eat-in kitchen create a sense of spaciousness and offer total design freedom.
  • A large back deck makes outdoor entertaining a delight.
  • On one side of a central hallway, an inviting master suite features a 4-piece bath with a walk-in shower and a roomy walk-in closet.
  • Across the hall, two additional bedrooms share a full bath.
  • Related Plan: Get larger bedrooms with house plan 83646CRW (1,316 sq. ft.).

What's Included

  • Cover sheet with rendering
  • Foundation plan with details

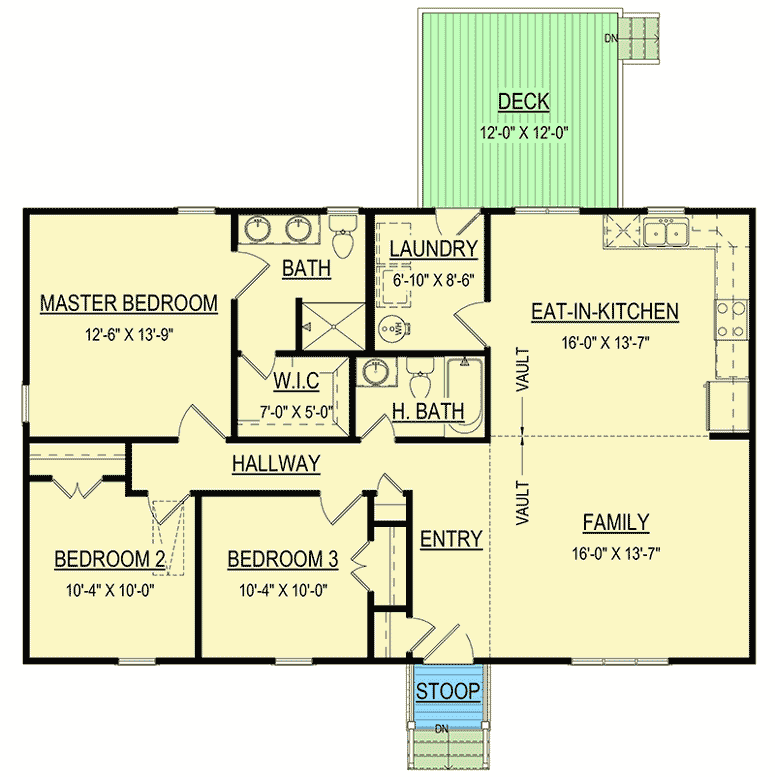

  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

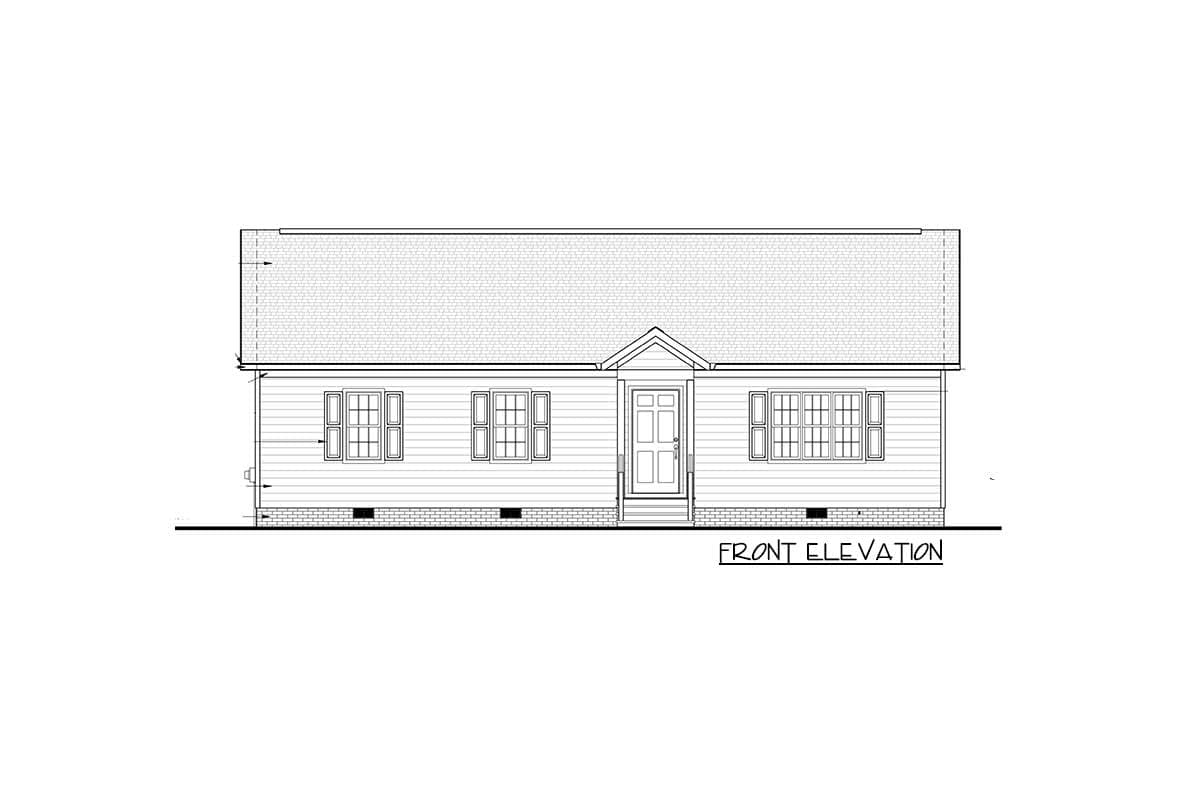

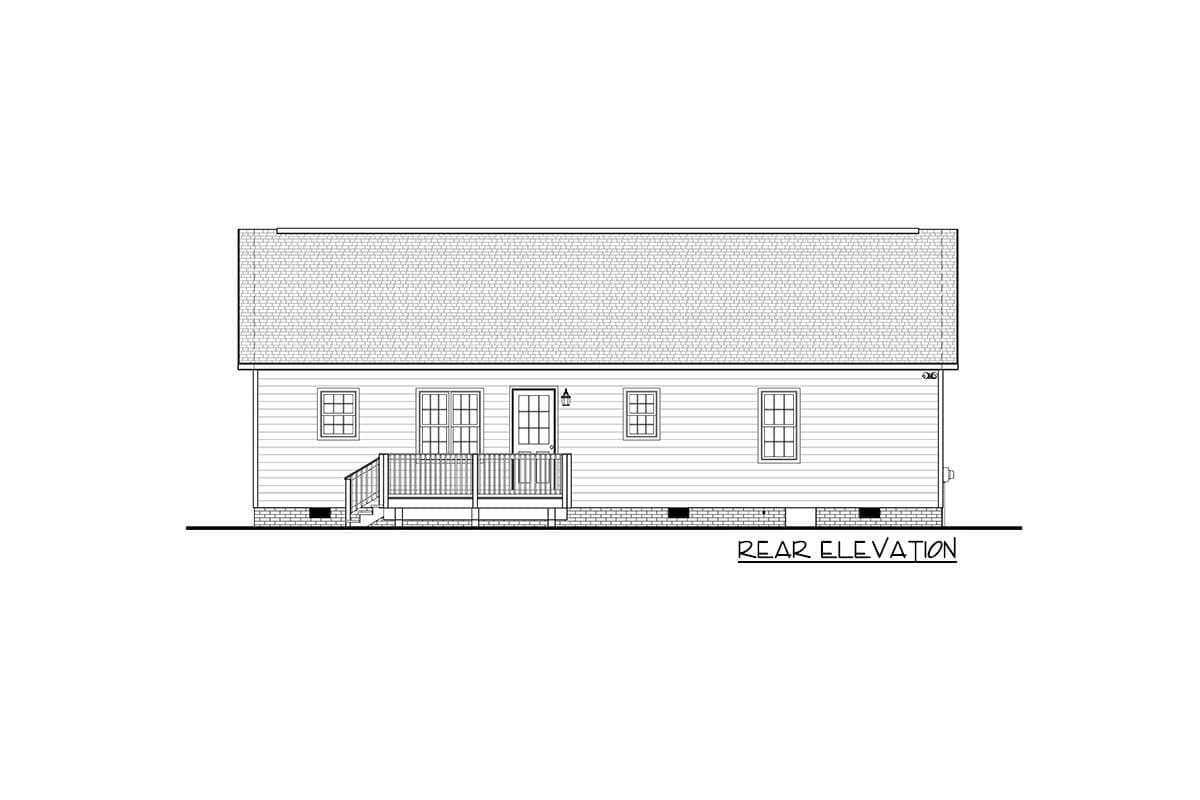

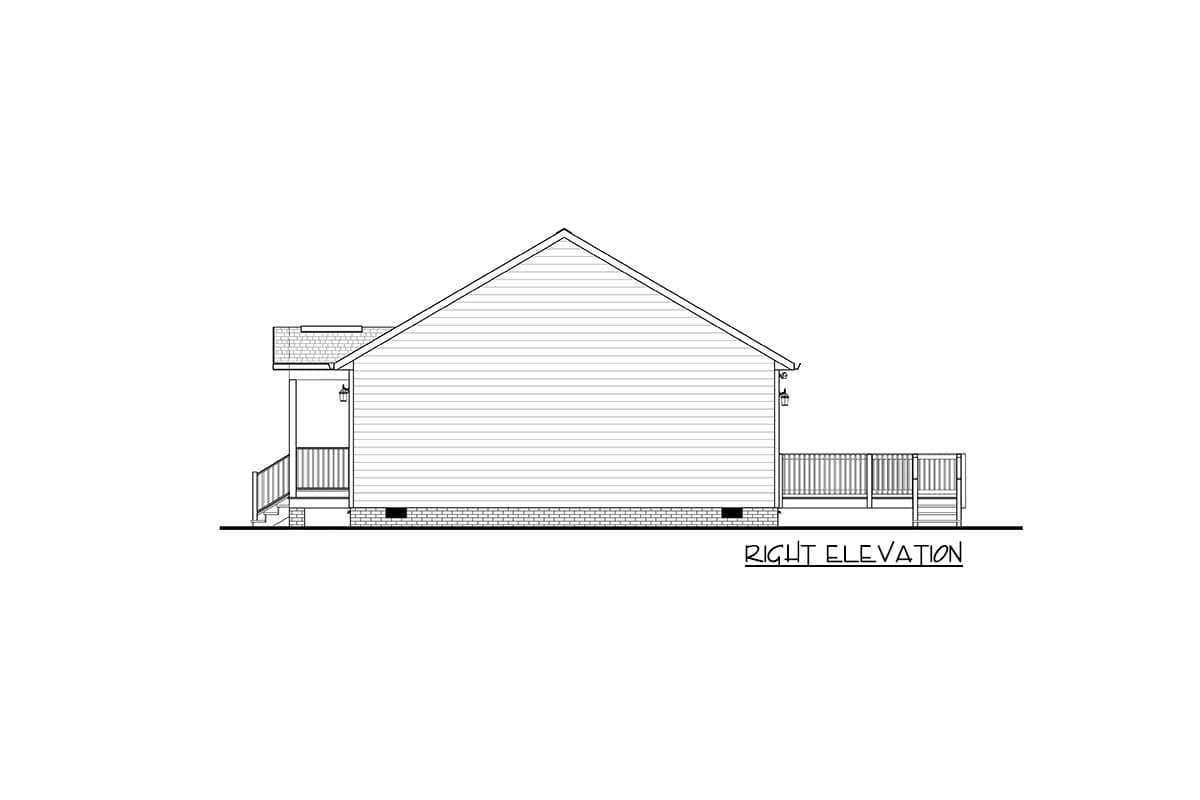

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,260 sq. ft.

1st Floor

1,260 sq. ft.

Basement Unfinished

1,372 sq. ft.

Porch, Front

20 sq. ft.

Deck

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

28' 0"

Max Ridge Height

19' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,260 sq. ft.

1st Floor

1,260 sq. ft.

Basement Unfinished

1,372 sq. ft.

Porch, Front

20 sq. ft.

Deck

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

28' 0"

Max Ridge Height

19' 6"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
