Cheerful Ranch House Plan

Plan 22070SL

  • 1,670

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • Large windows brighten this cheerful ranch house plan with a covered front porch.
  • Pass by the pantry from the 3-car garage and unload groceries with ease. The kitchen/breakfast area enjoys a large work island and access to the outdoors.
  • A deluxe bath enhances the master bedroom with a large walk-in closet.
  • Related Plan: Building in reverse? See house plan 22076SL.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

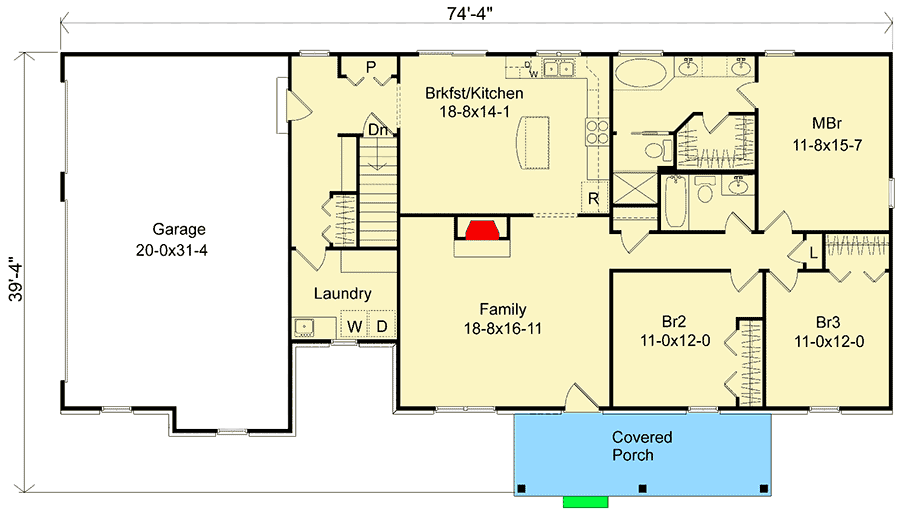

Cheerful Ranch House Plan - 22070SL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,670 sq. ft.
  • 1st Floor: 1,670 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 74' 4"
  • Depth: 39' 4"
  • Max ridge height: 22' 6"

Garage

  • Type: Attached
  • Area: 626 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Cheerful Ranch House Plan

  • 1,670

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,670 sq. ft.
  • 1st Floor: 1,670 sq. ft.

Dimensions

  • Width: 74' 4"
  • Depth: 39' 4"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 626 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
