Plan 100365GHR

Exclusive

Chic Modern Farmhouse Quad Plex Plan with 4 Beds and First-Floor Master Suite

Heated S.F.
2,416
Units
4
Width
Depth

Floor Plan

Plan 100365GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100365GHR

M-F 9am-5pm EST |

1-203-761-8500

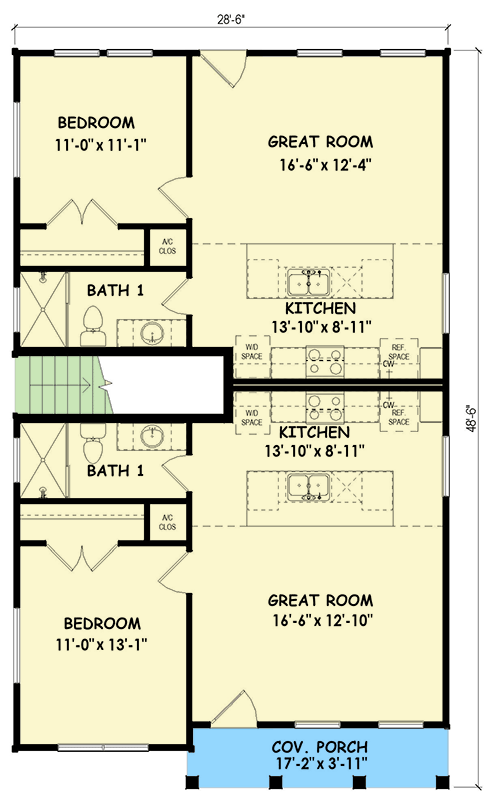

Main Level

Plan 100365GHR: Chic Modern Farmhouse Quad Plex Plan with 4 Beds and First-Floor Master Suite - Floor Plan - Main Level - Modern, Modern Farmhouse, New American

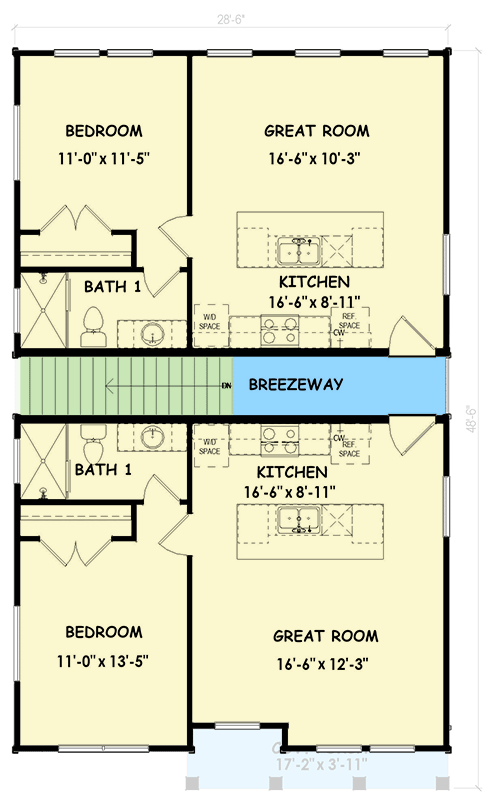

2nd Floor

Plan 100365GHR: Chic Modern Farmhouse Quad Plex Plan with 4 Beds and First-Floor Master Suite - Floor Plan - 2nd Floor - Modern, Modern Farmhouse, New American

Plan Details

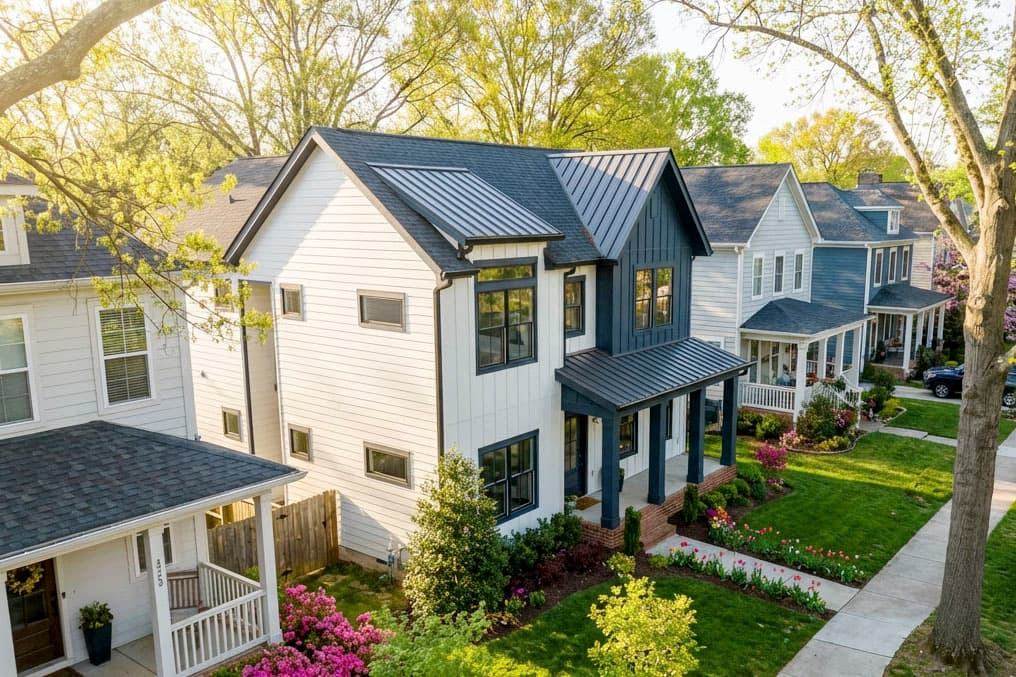

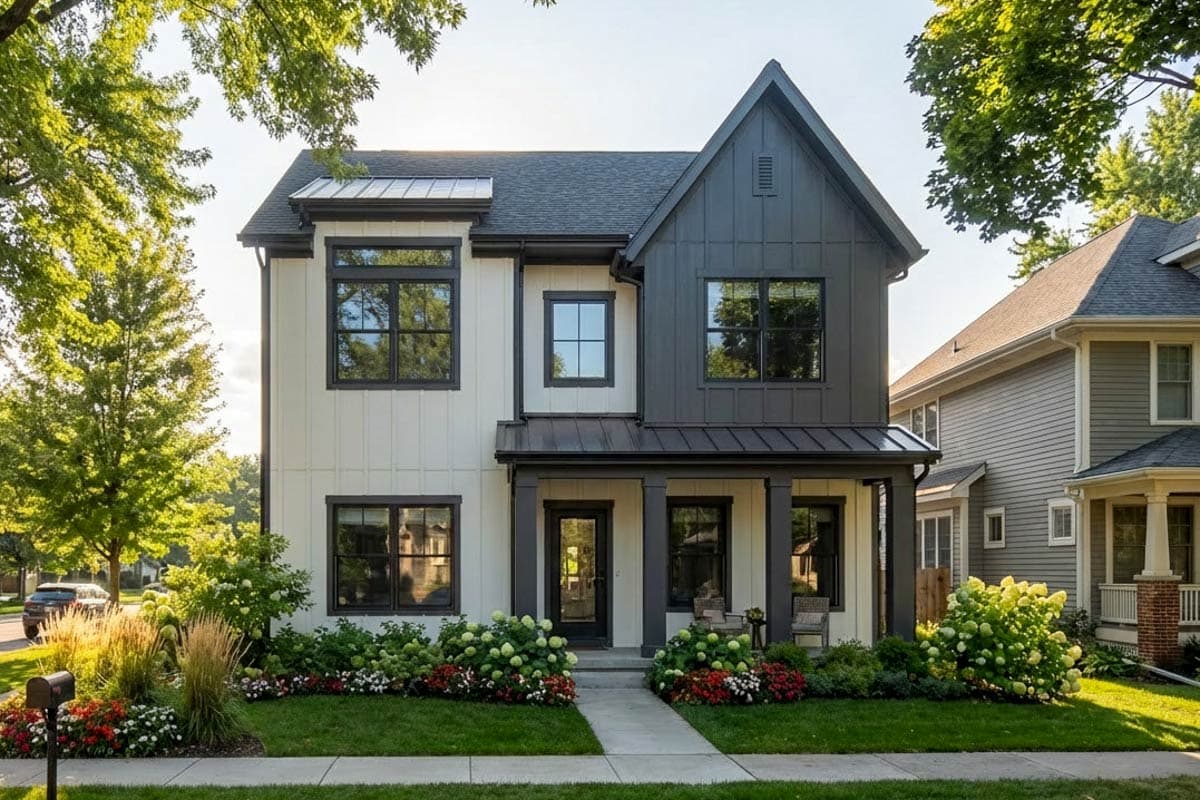

  • This striking 2,416 sq. ft. Modern Farmhouse and New American House Plan offers 4 bedrooms and 4 full bathrooms, showcasing a contemporary aesthetic with classic charm.
  • Step into a thoughtfully designed space where the front entry, sheltered by a welcoming 68 sq. ft. covered porch, leads directly into the heart of the home, hinting at an efficient and well-zoned layout ideal for modern living.
  • With impressive 9' 1" ceilings on both levels, the interior spaces are crafted for comfort and privacy, featuring distinct living zones across its two stories, ensuring ample personal space for all residents.
  • The plan features a desirable first-floor Master Suite, offering a private retreat. Three additional bedroom suites, each with its own full bath, are strategically placed across both levels, providing versatile living arrangements and personal havens for family or guests.
  • Enjoy tranquil mornings on the inviting front porch, or step out onto the 114 sq. ft. balcony/veranda on the upper level, perfect for savoring the evening air and neighborhood views.
Unit 1
Heated Area
630Sq. Ft.
630 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
56' 6"width
46' 11"depth
56' 10"height
Unfinished Areas
68 Sq. Ft. Porch, Front
Unit 2
Heated Area
598Sq. Ft.
598 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
Dimensions
56' 6"width
42' 11"depth
56' 10"height
Unit 3
Heated Area
618Sq. Ft.
618 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
Dimensions
56' 6"width
44'depth
56' 10"height
Unit 4
Heated Area
570Sq. Ft.
570 Sq. Ft. 2nd
Beds
1Beds
Baths
1Full Bath
Dimensions
56' 6"width
40'depth
56' 10"height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,416 sq. ft.

1st Floor

630 sq. ft.

2nd Floor

1,188 sq. ft.

Porch, Front

68 sq. ft.

Balcony / Veranda

114 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 6"

Depth

48' 6"

Max Ridge Height

28' 10"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Modern

Modern Farmhouse

New American

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,416 sq. ft.

1st Floor

630 sq. ft.

2nd Floor

1,188 sq. ft.

Porch, Front

68 sq. ft.

Balcony / Veranda

114 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 6"

Depth

48' 6"

Max Ridge Height

28' 10"

Ceiling Heights

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Modern

Modern Farmhouse

New American

Special Features

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Plan Collections

Exclusive
