Classic 2 or 3 Bedroom Ranch House Plan with Vaulted Great Room - 1884 Sq Ft

Name: Plan 72676DA: Classic 2 or 3 Bedroom Ranch House Plan with Vaulted Great Room - 1884 Sq Ft
Brand: Architectural Designs
SKU: 72676DA
Price: 2130.0 USD
Availability: InStock

Heated S.F.

1,884

Beds

2 - 3

Baths

Stories

Cars

Floor Plan

Main Level

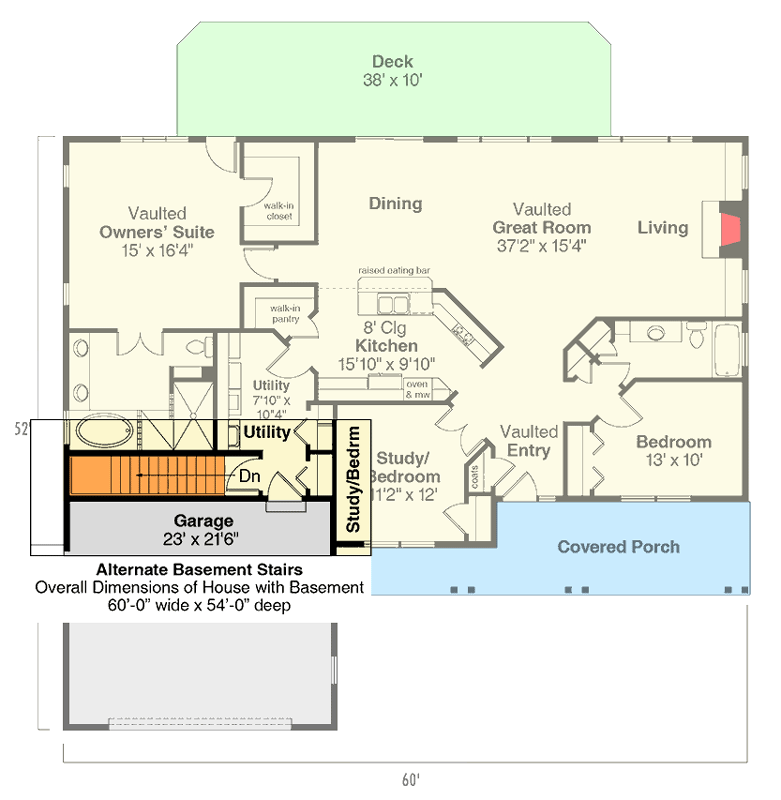

Alternate Basement Stairs

Plan Details

Open and welcoming, the front porch spans the front facade of this 1,884 square foot contemporary ranch-style home plan with 3 bedrooms and 2 bathrooms.
Slender posts provide graceful accents. A basically rectangular footprint makes this home plan economical to build, heat and maintain.
Light spills into the vaulted entry though a sidelight plus a row of panes near the top of the door. A coat closet is on the left, just before the entry hall angles off in that direction. Double doors open into the window-bright room that could be a bedroom, home office or study.
Light washes into the vaulted great room through wide windows that fill most of the rear wall, plus the slender windows flanking the gas fireplace. Sliding glass doors in the dining area open onto a wide patio.
Standing at the kitchen sink, you can look out across the raised eating bar into the great room, keep your eye on the patio, or enjoy watching seasonal changes outside. All appliances are built in, and a roomy walk-in pantry fills one corner.
Laundry appliances are stacked in the pass-through utility room which provides accesses the garage.
The owners' suite is surprisingly luxurious for a home plan this size, boasting a spa tub, oversized shower and dual lav.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

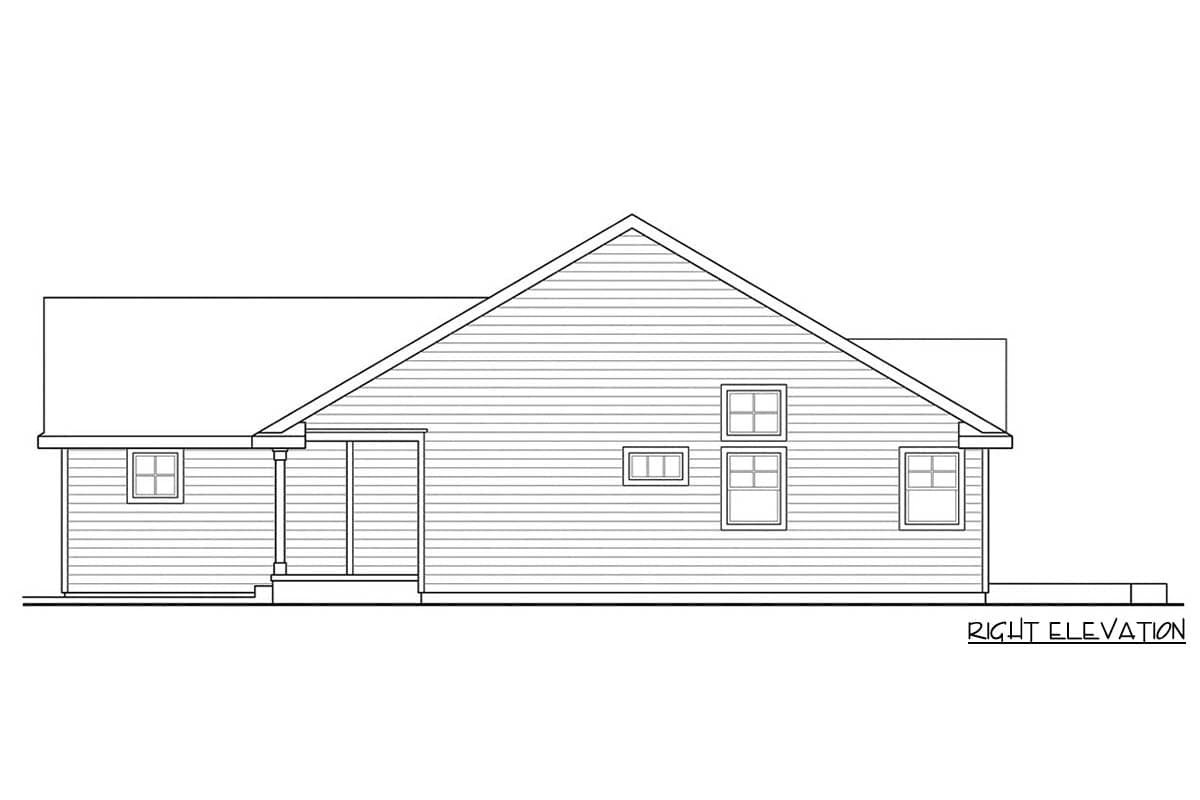

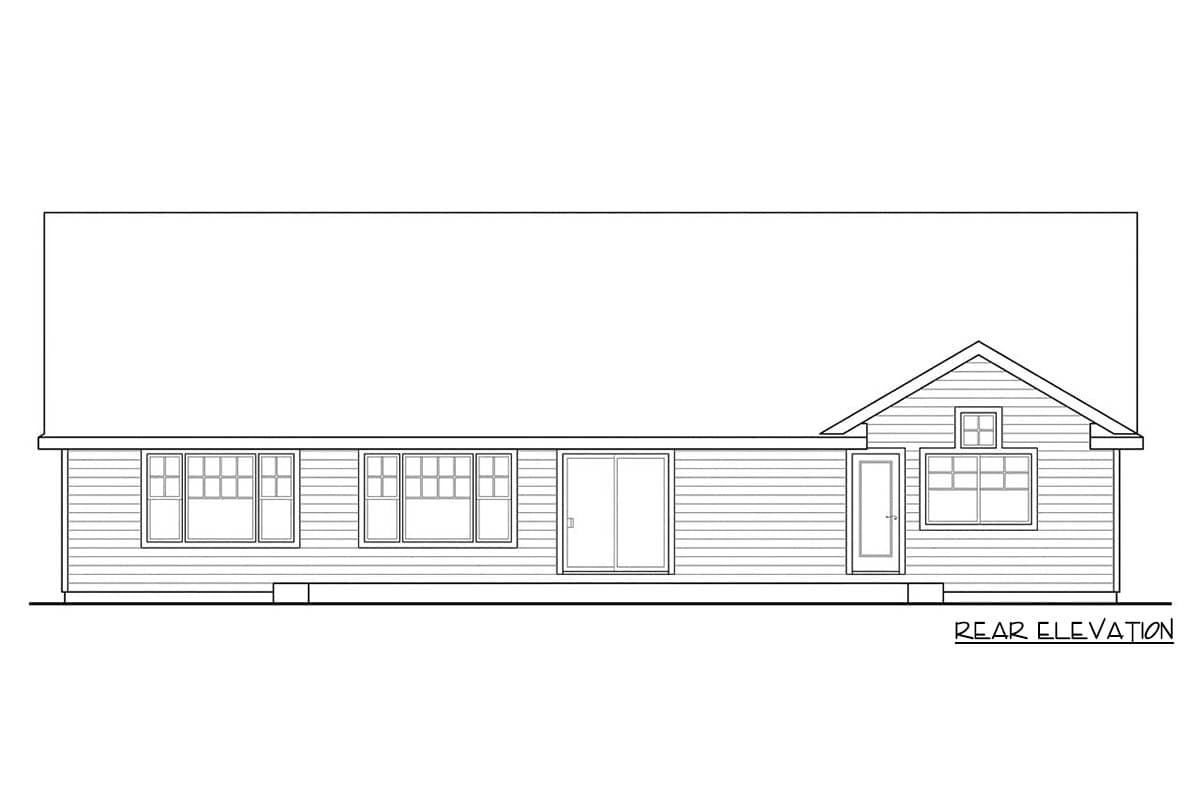

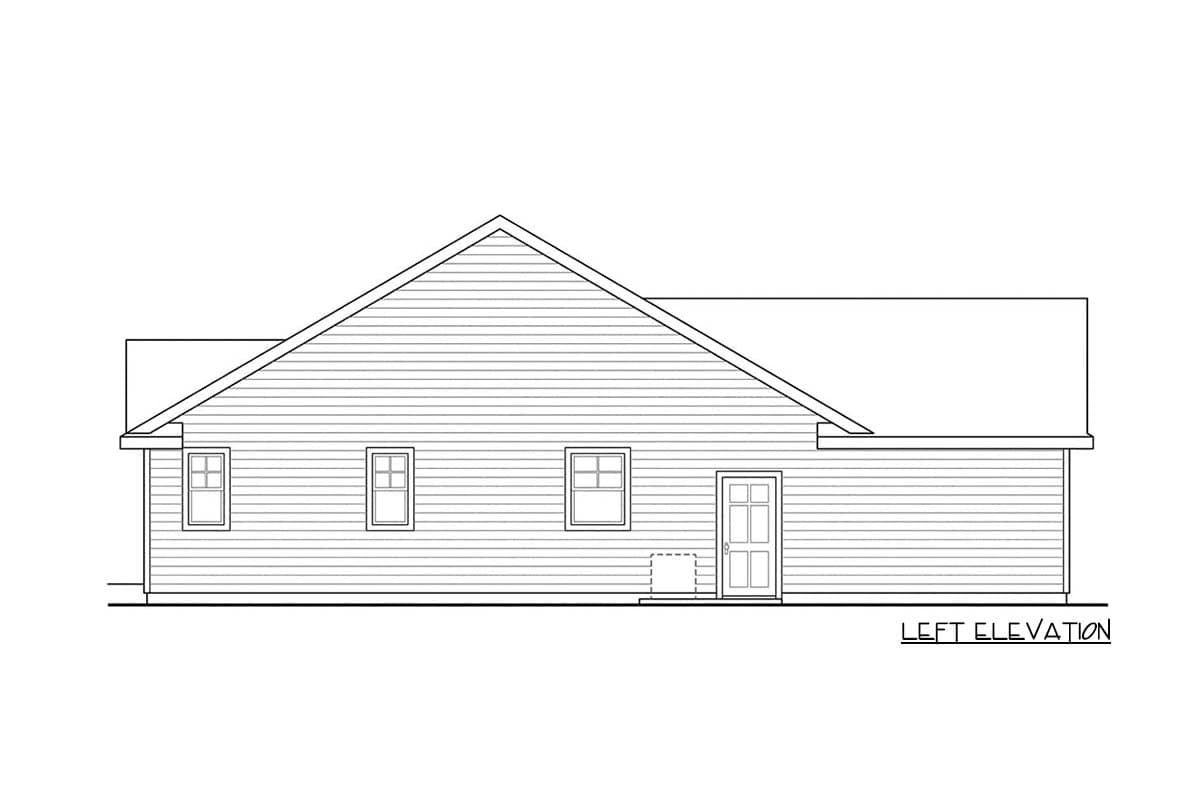

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

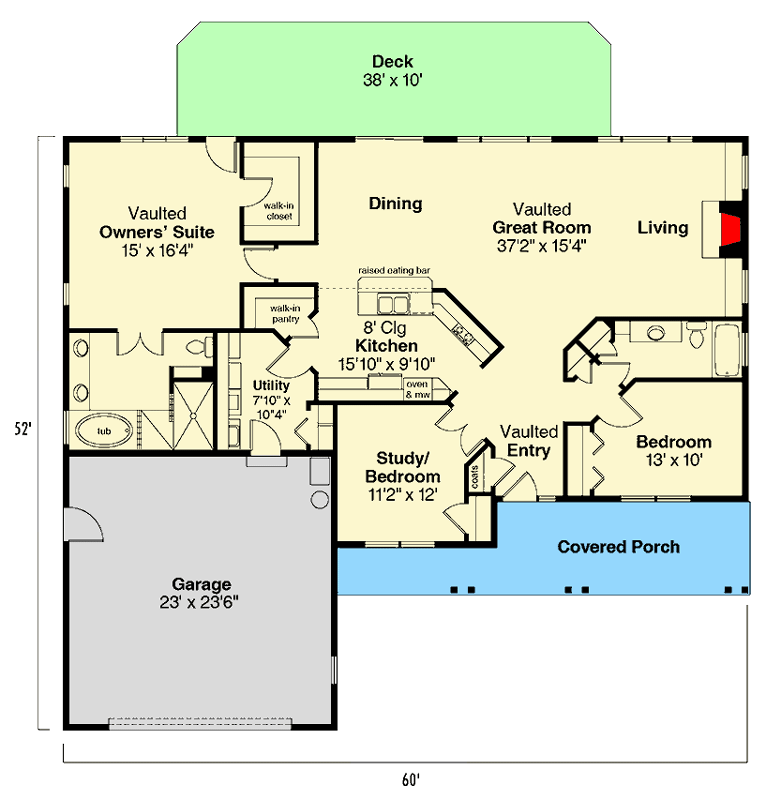

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
