Plan 31218D
Classic 3-Bed Cottage with Detached Garage
Heated S.F.
1,525
Beds
3
Baths
2
Stories
2
Cars
2
What's Included
Plan Details

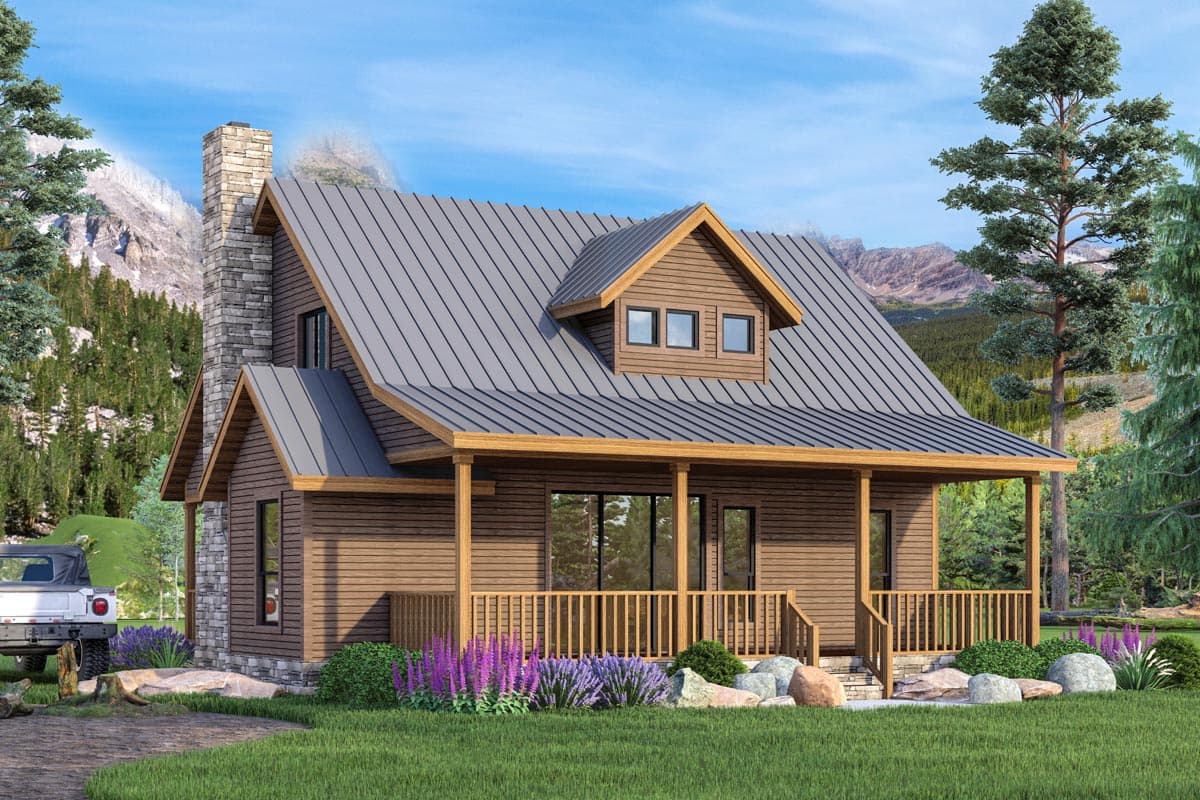

  • Three dormer windows protrude from the roof line of this 3-bedroom cottage that gives you classic architectural features to add to the overall character.
  • The 6'-deep front porch spans the width of the home and is replicated along the rear elevation, although slightly deeper at 8 feet.
  • Whether your permanent residence or vacation home, the open concept living space with a fireplace will allow you to relax with family and friends.
  • Discover the master bedroom on the main level, complete with two closets and a compartmentalized bath that is shared with the living space.
  • Upstairs, a loft and full bathroom separates bedrooms 2 and 3.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us fo
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Classic 3-Bed Cottage with Detached Garage

  • 1,525

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

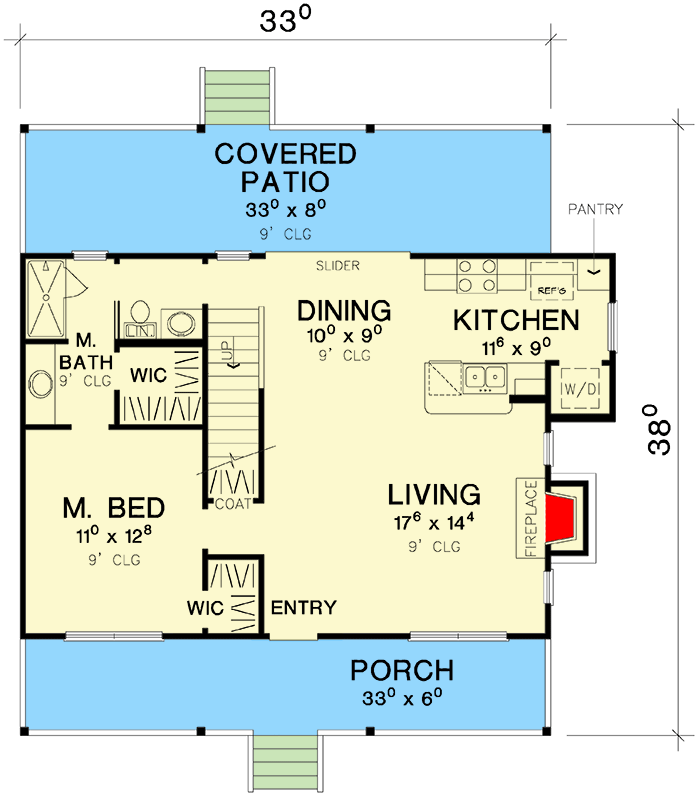

Floor Plan

  • Main Level

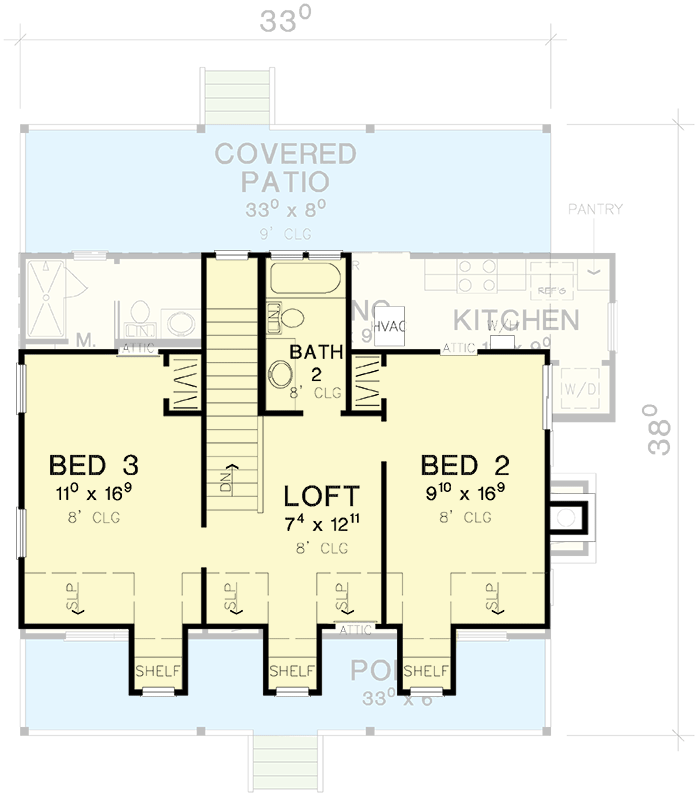

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,525 sq. ft.
  • 1st Floor: 845 sq. ft.
  • 2nd Floor: 680 sq. ft.

Dimensions

  • Width: 33' 0"
  • Depth: 38' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached
  • Area: 400 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
