Classic Center Hall Home Plan

Plan 15718GE

  • 2,936

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This traditional center hall Colonial home plan has a timeless curb appeal that will look good in any neighborhood.
  • The large foyer is flanked by a study with built-ins on one side and the dining room on the other.
  • A wall of windows floods the grand room with light and views of your rear property.
  • A huge country kitchen with an island and beamed ceilings will be the heart of your home.
  • All the bedrooms are on the second floor, with the master suite enjoying a tray ceiling, large walk-in closet and bath with jetted tub.

The plan set includes the following:

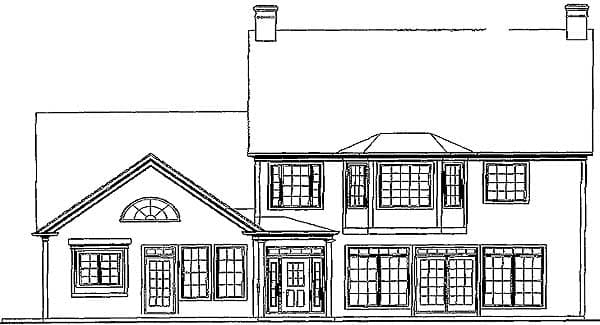

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

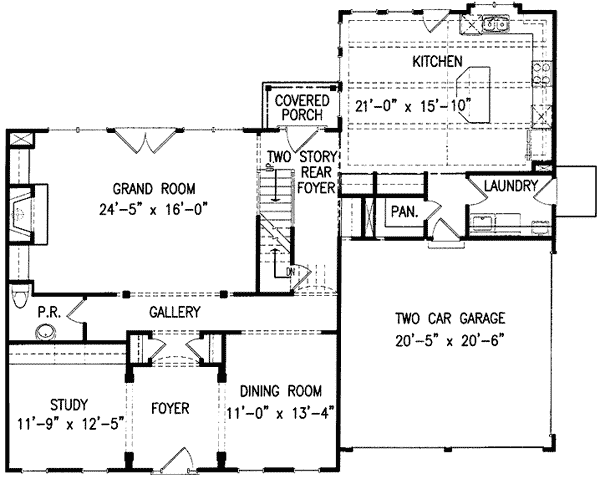

Classic Center Hall Home Plan - 15718GE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

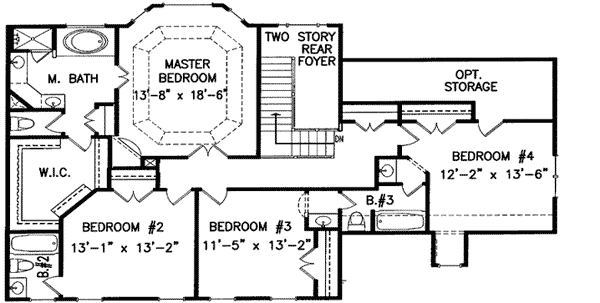

Classic Center Hall Home Plan - 15718GE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,936 sq. ft.
  • 1st Floor: 1,602 sq. ft.
  • 2nd Floor: 1,334 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 45' 0"

Garage

  • Type: Attached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Architectural Style

Special features

Plan Collections

Classic Center Hall Home Plan

  • 2,936

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,174
  • CAD - Single-Build $2,124
  • View all purchase option online

About This Plan

  • This traditional center hall Colonial home plan has a timeless curb appeal that will look good in any neighborhood.
  • The large foyer is flanked by a study with built-ins on one side and the dining room on the other.
  • A wall of windows floods the grand room with light and views of your rear property.
  • A huge country kitchen with an island and beamed ceilings will be the heart of your home.
  • All the bedrooms are on the second floor, with the master suite enjoying a tray ceiling, large walk-in closet and bath with jetted tub.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,936 sq. ft.
  • 1st Floor: 1,602 sq. ft.
  • 2nd Floor: 1,334 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 45' 0"

Garage

  • Type: Attached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front
