Plan: 69065AM

Classic Craftsman Home Plan

3,457 3-4 5 2 4
Pageloader

Classic Craftsman Home Plan

Plan 69065AM

  • 3,457

    Heated s.f.

  • 3-4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 4

    Cars

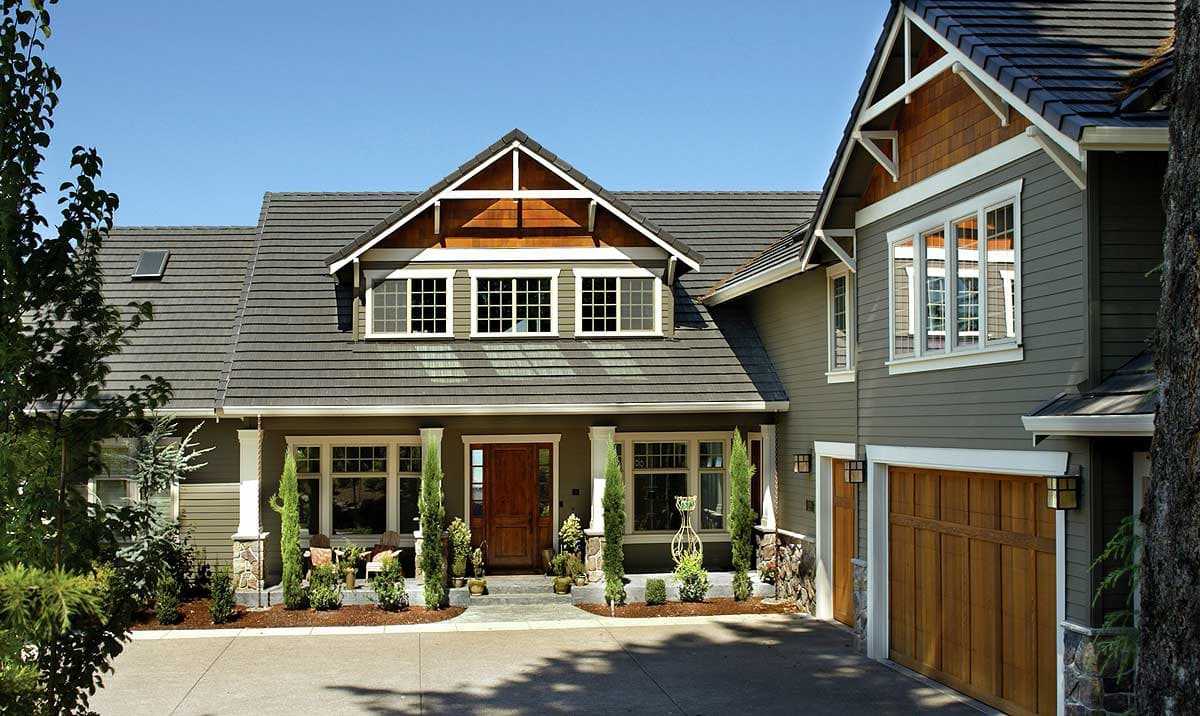

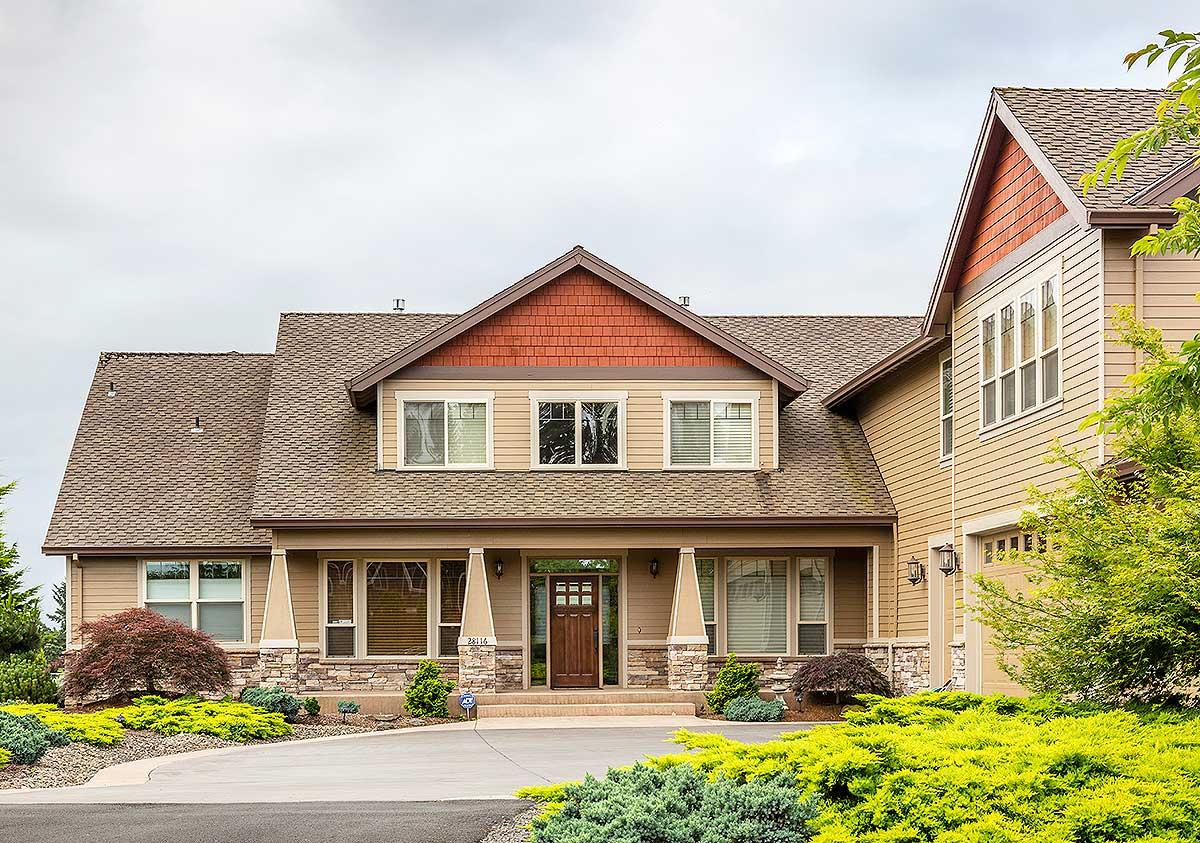

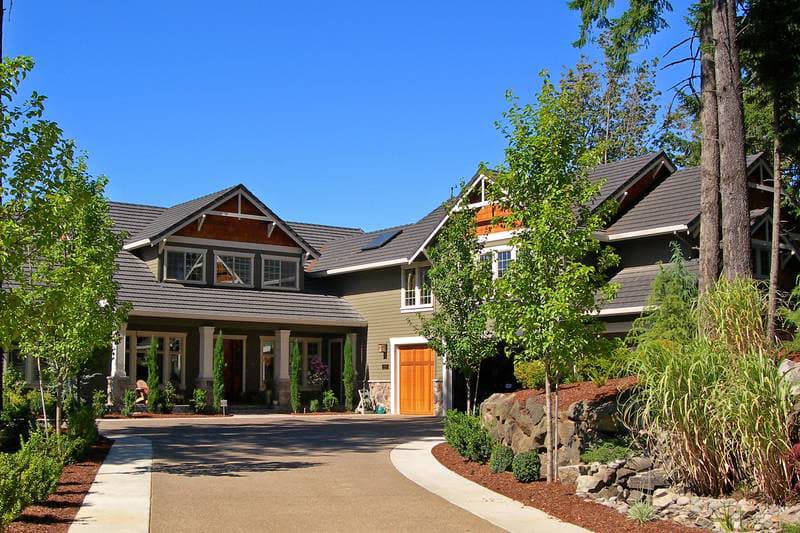

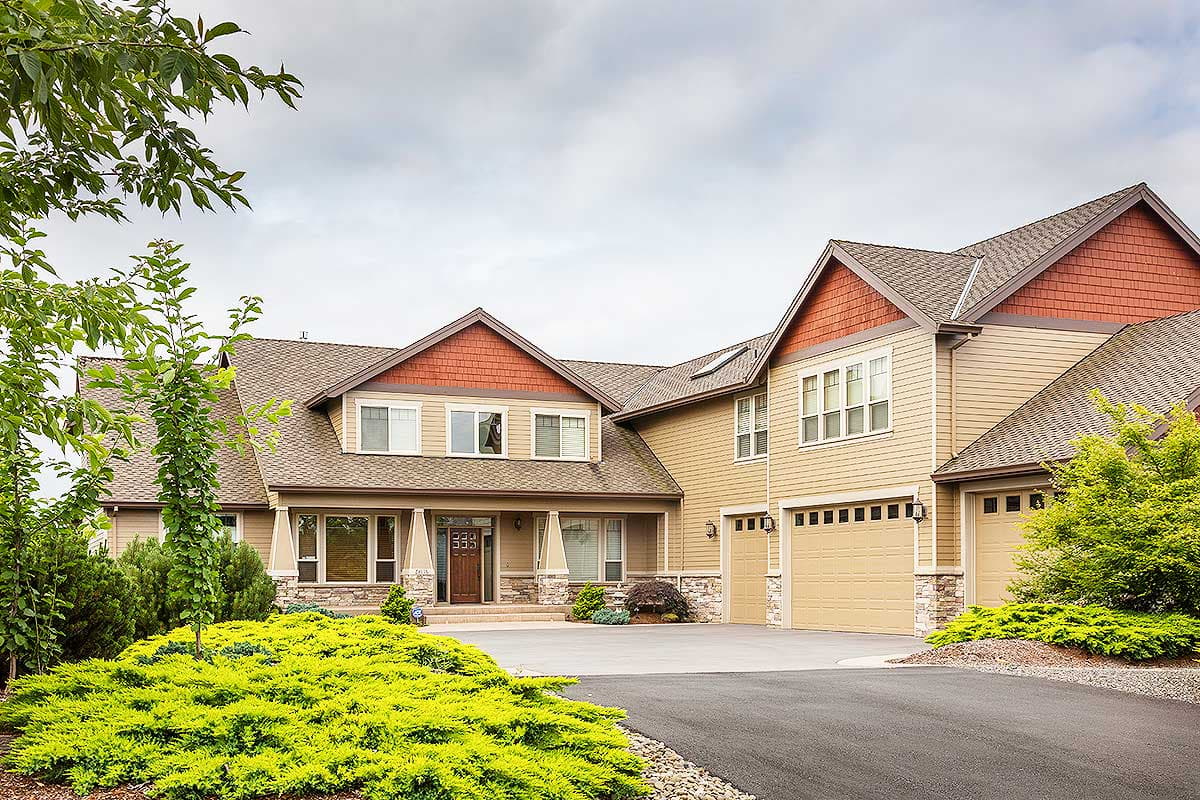

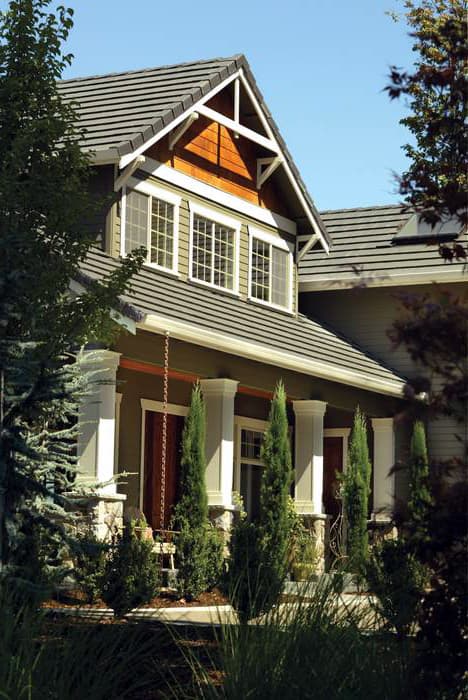

  • Classic Craftsman tradition shines through in this spectacular home plan. The exterior is detailed with cedar shingles, stone and partial columns defining the front porch.
  • Interior spaces promise fine livability, with two master suites and plenty of cozy rooms for private time. A formal dining room and a study flank the two-story foyer. Both rooms have wide Mission-style windows overlooking the front porch. An open great room features two sets of double doors to the rear yard, a fireplace and a built-in media center. More casual dining takes place in the breakfast nook, which is open to an island kitchen and leads to a vaulted porch.
  • One master suite is found on the first floor. It glows with appointments, from double-door access to the rear yard to a fine bath with spa tub, separate shower and double sinks. The second master suite, on the second floor, holds a window seat and a private bath with spa tub. Two additional bedrooms--or make one a study--share a full compartmented bath with private vanities for each bedroom. The four-car garage connects to the main house at a laundry/mud room with half-bath, coat closet, built-in bench and washer/dryer space. Extra room in the garage can be used for a workshop or as storage space.
  • The roof is a truss design and has a 8:12 pitch.
  • Related Plan: For an alternate version, see house plan 69002AM.

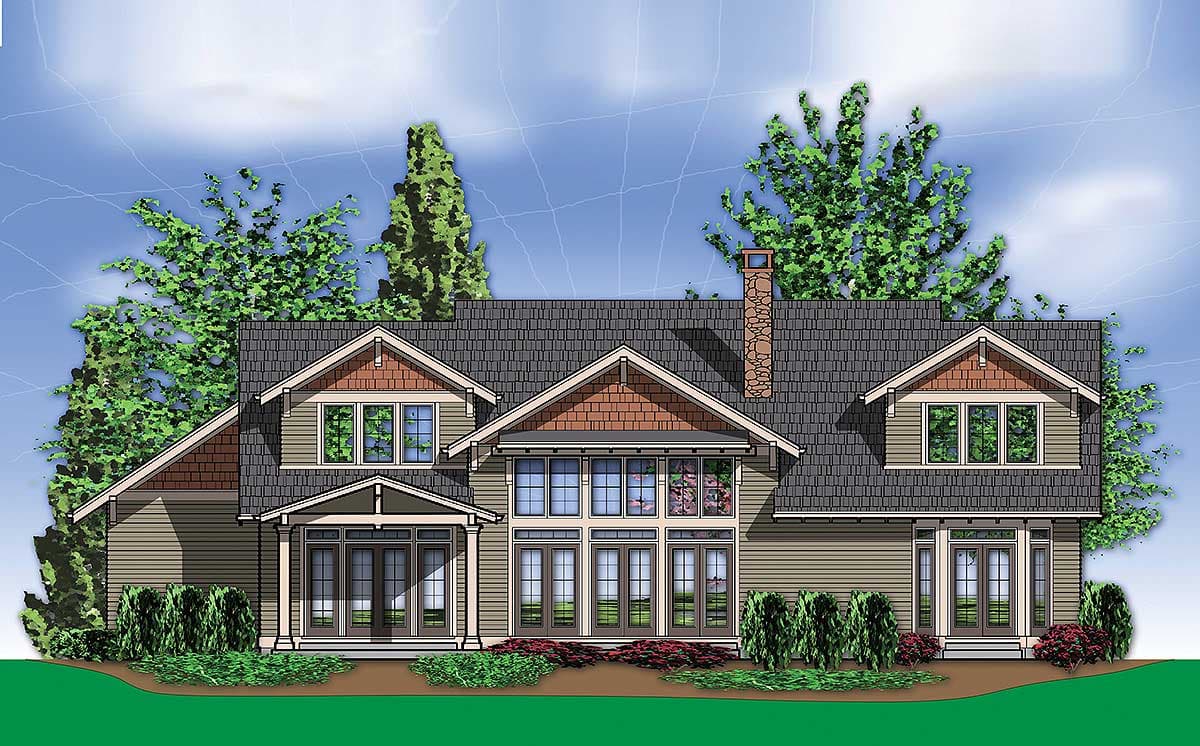

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Classic Craftsman Home Plan

  • 3,457

    Heated s.f.

  • 3 - 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Digital Study Set $1,203
  • PDF - single-use $1,553
  • 5 Sets $1,703
  • 5 Sets PLUS $1,753
  • CAD - multi-use $3,106
  • View all purchase option online

About This Plan

  • Classic Craftsman tradition shines through in this spectacular home plan. The exterior is detailed with cedar shingles, stone and partial columns defining the front porch.
  • Interior spaces promise fine livability, with two master suites and plenty of cozy rooms for private time. A formal dining room and a study flank the two-story foyer. Both rooms have wide Mission-style windows overlooking the front porch. An open great room features two sets of double doors to the rear yard, a fireplace and a built-in media center. More casual dining takes place in the breakfast nook, which is open to an island kitchen and leads to a vaulted porch.
  • One master suite is found on the first floor. It glows with appointments, from double-door access to the rear yard to a fine bath with spa tub, separate shower and double sinks. The second master suite, on the second floor, holds a window seat and a private bath with spa tub. Two additional bedrooms--or make one a study--share a full compartmented bath with private vanities for each bedroom. The four-car garage connects to the main house at a laundry/mud room with half-bath, coat closet, built-in bench and washer/dryer space. Extra room in the garage can be used for a workshop or as storage space.
  • The roof is a truss design and has a 8:12 pitch.
  • Related Plan: For an alternate version, see house plan 69002AM.

Floor Plans

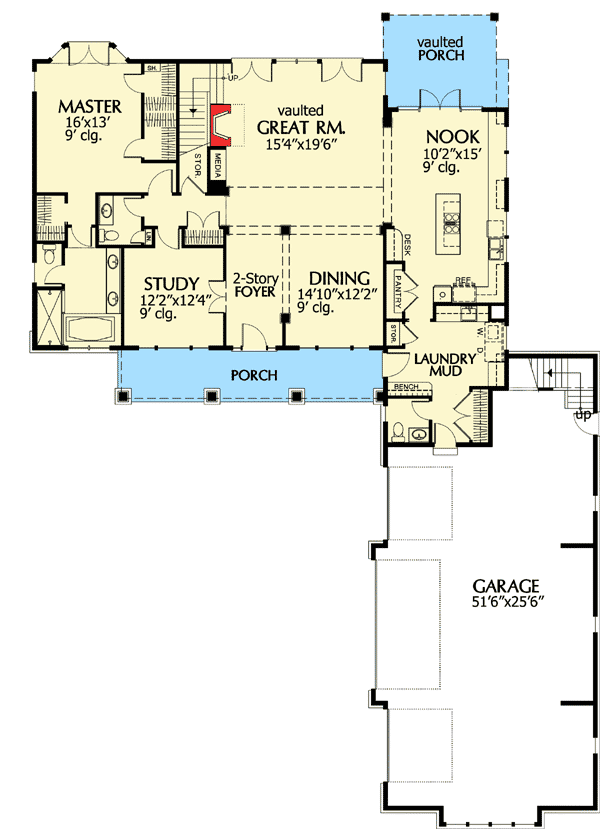

  • Main Level

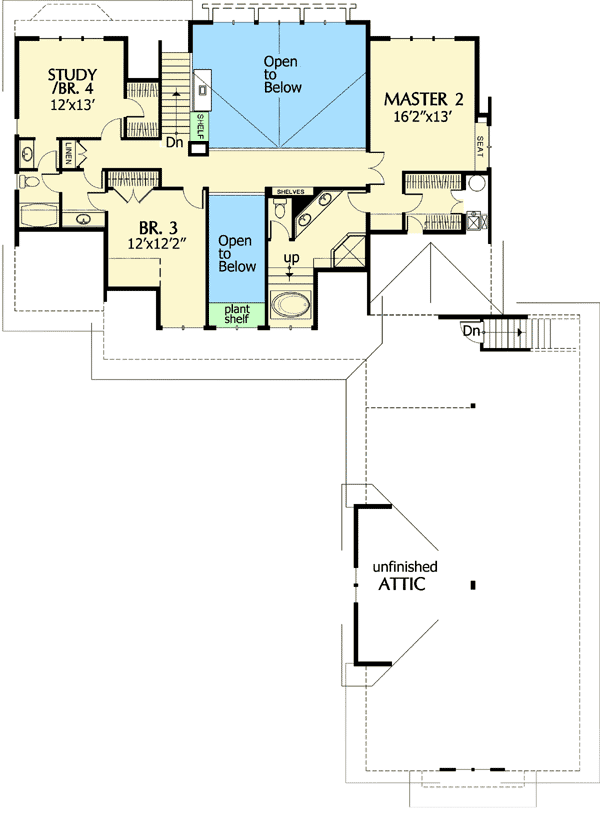

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,457 sq. ft.
  • 1st Floor: 2,222 sq. ft.
  • 2nd Floor: 1,235 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 101' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 1313 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • PDF
