Plan 50181PH Classic Craftsman Plan for Narrow Lot

2,240 3 2.5 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Classic Craftsman Plan for Narrow Lot

Plan 50181PH

  • 2,240

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

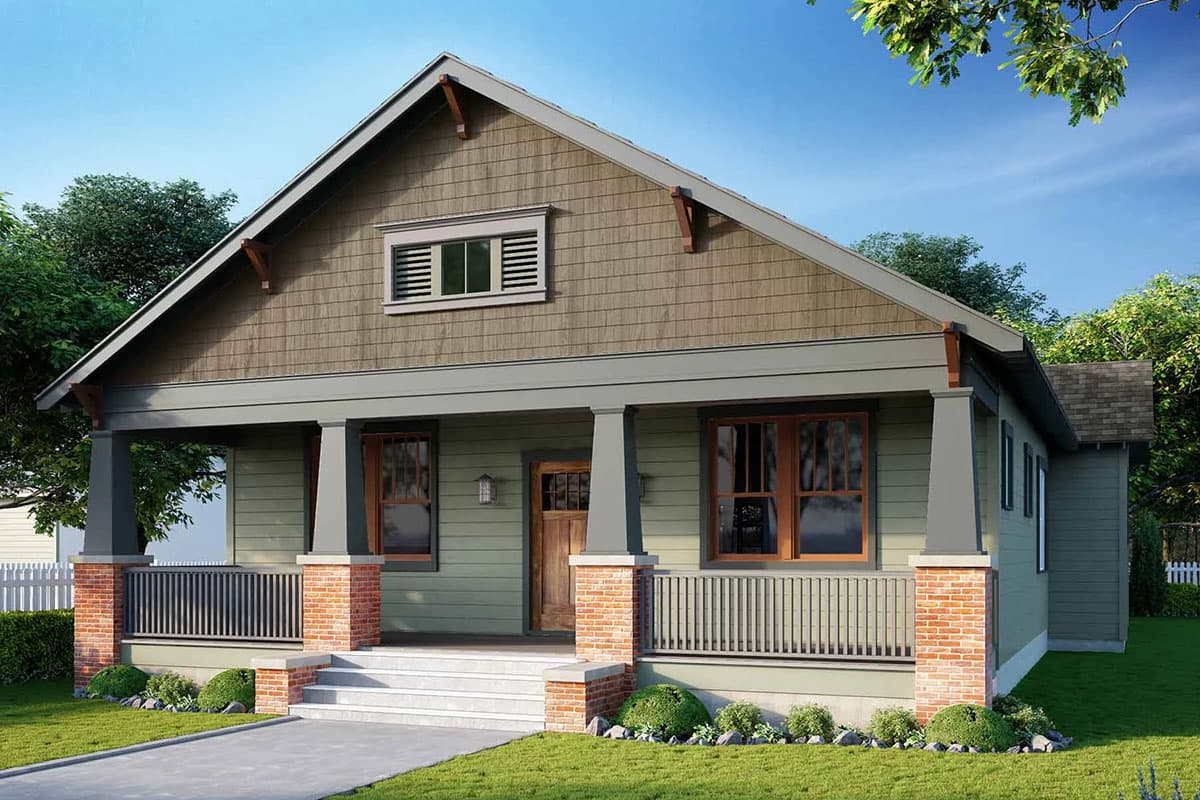

  • Features like shake siding and tapered columns define the Craftsman style of home, similar to this endearing house plan. The front porch spans the 38' width of the home.
  • The living room greets you upon entering, and an oversized opening leads to the dining room. The kitchen is a few steps further, and boasts an L-shaped island and plenty of meal prep space.
  • Enjoy the built-in entertainment center in the den that neighbors the kitchen, and a 3-paneled glass door permits access to a back porch.
  • The bedrooms occupy the left side of the home with the master bedroom towards the rear. The owner is sure to enjoy the 5-fixture bath with a standalone tub.
  • To the left of the foyer, discover bedrooms 2 and 3, which share the hall bath.
  • Related Plan: Get a smaller version with house plan 50182PH (2,008 sq. ft.).

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.

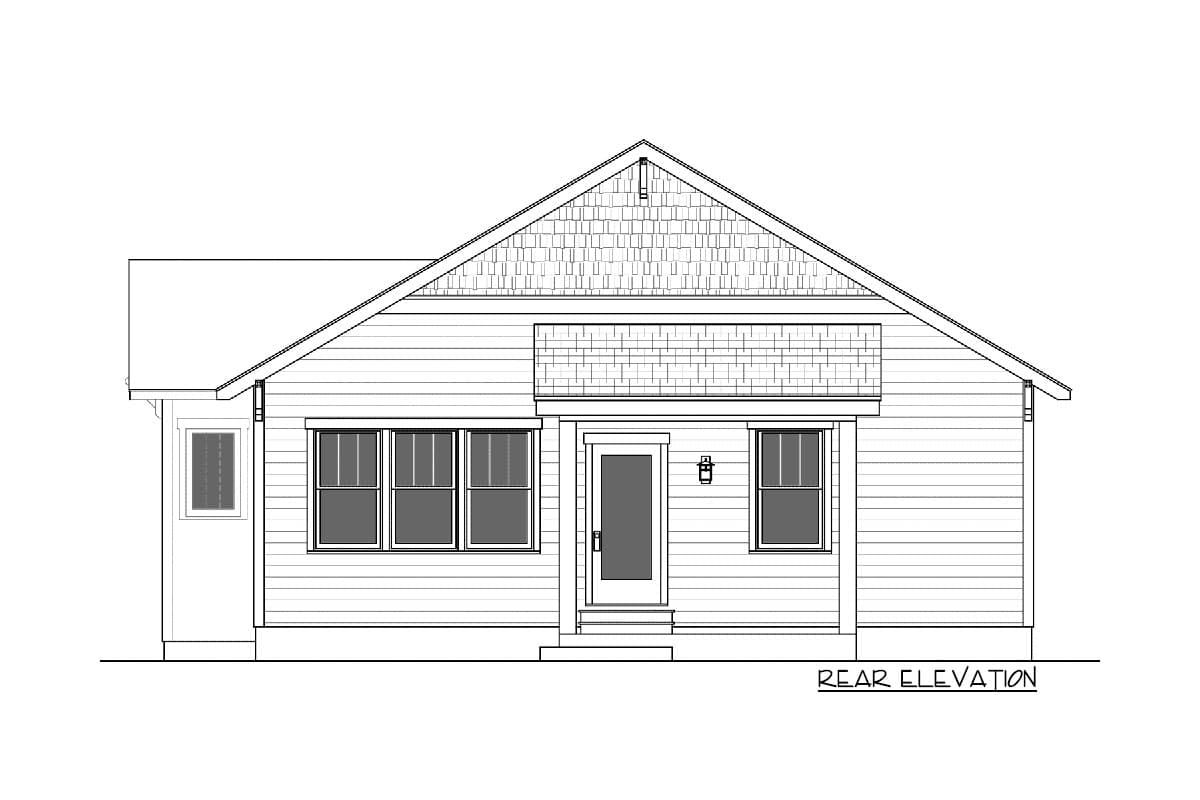

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

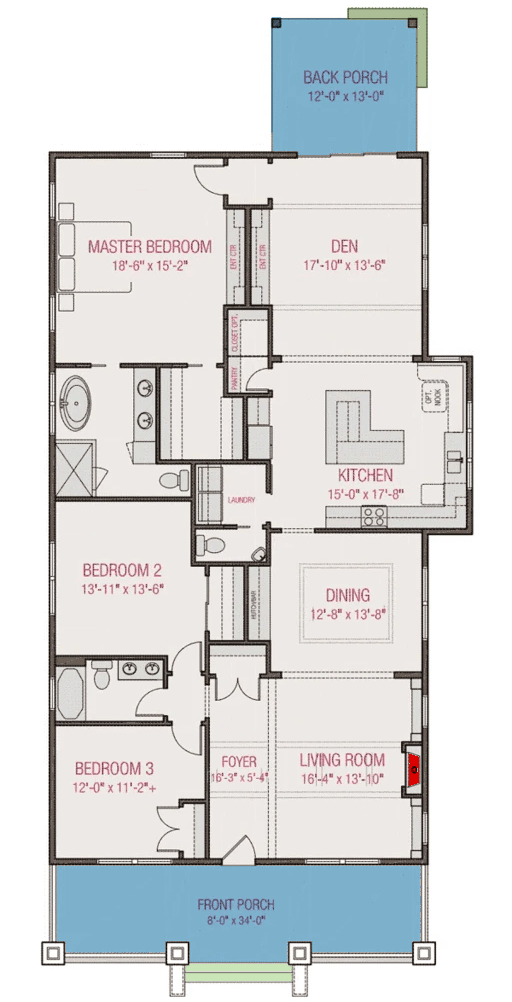

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Classic Craftsman Plan for Narrow Lot - 50181PH floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,240 sq. ft.
  • 1st Floor: 2,240 sq. ft.
  • Deck: 156 sq. ft.
  • Porch, Combined: 272 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 73' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Classic Craftsman Plan for Narrow Lot

  • 2,240

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets $1,415
  • 6 Sets $1,465
  • 5 Sets + PDF $1,495
  • CAD - Single-Build $2,390
  • View all purchase option online

About This Plan

  • Features like shake siding and tapered columns define the Craftsman style of home, similar to this endearing house plan. The front porch spans the 38' width of the home.
  • The living room greets you upon entering, and an oversized opening leads to the dining room. The kitchen is a few steps further, and boasts an L-shaped island and plenty of meal prep space.
  • Enjoy the built-in entertainment center in the den that neighbors the kitchen, and a 3-paneled glass door permits access to a back porch.
  • The bedrooms occupy the left side of the home with the master bedroom towards the rear. The owner is sure to enjoy the 5-fixture bath with a standalone tub.
  • To the left of the foyer, discover bedrooms 2 and 3, which share the hall bath.
  • Related Plan: Get a smaller version with house plan 50182PH (2,008 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,240 sq. ft.
  • 1st Floor: 2,240 sq. ft.
  • Deck: 156 sq. ft.
  • Porch, Combined: 272 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 73' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 50181PH
View this and more for this plan by visiting www.architechtecturaldesigns.com/50181PH
|
