Plan 890076AH
Classic Craftsman Ranch Home Plan with 3 Bedrooms
Heated S.F.
1,681
Beds
3
Baths
2
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • This classic Craftsman ranch design gives you 3 beds on a small footprint making it a budget-friendly design.
  • The kitchen features an eat-in island that overlooks the great room and dining to create a space that’s large enough for entertaining.
  • All three bedrooms lie behind the 3-car garage. The master bedroom features a walk-in closet and dual sinks. The remaining bedrooms share a bathroom located right off of the hallway.
  • The design is finished with a three-stall garage with two garage doors allowing only to have one open at a time.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Classic Craftsman Ranch Home Plan with 3 Bedrooms

  • 1,681

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

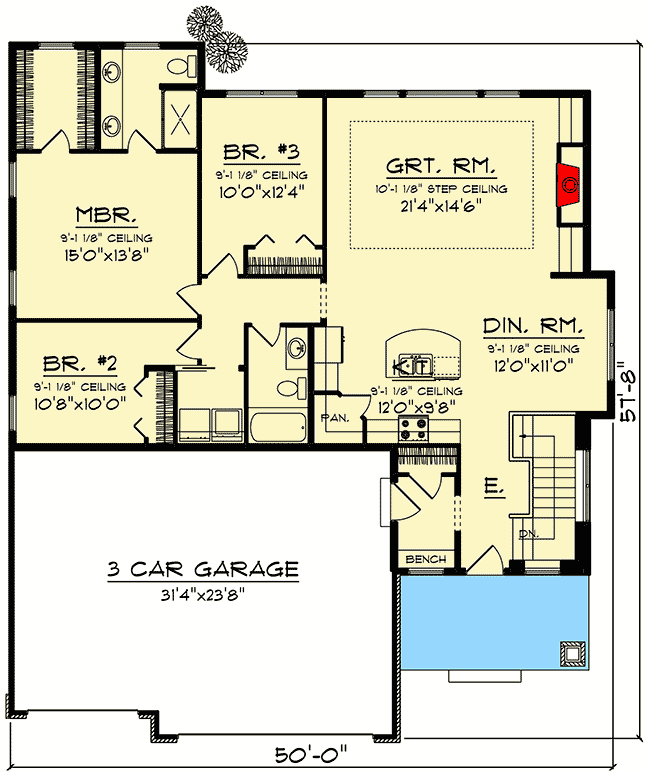

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,681 sq. ft.
  • 1st Floor: 1,681 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 57' 8"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 744 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
