Classic Craftsman-Style House Plan with Vaulted Family with Loft Overlook

Classic Craftsman-Style House Plan with Vaulted Family with Loft Overlook

Plan 710000BTZ

  • 2,644

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

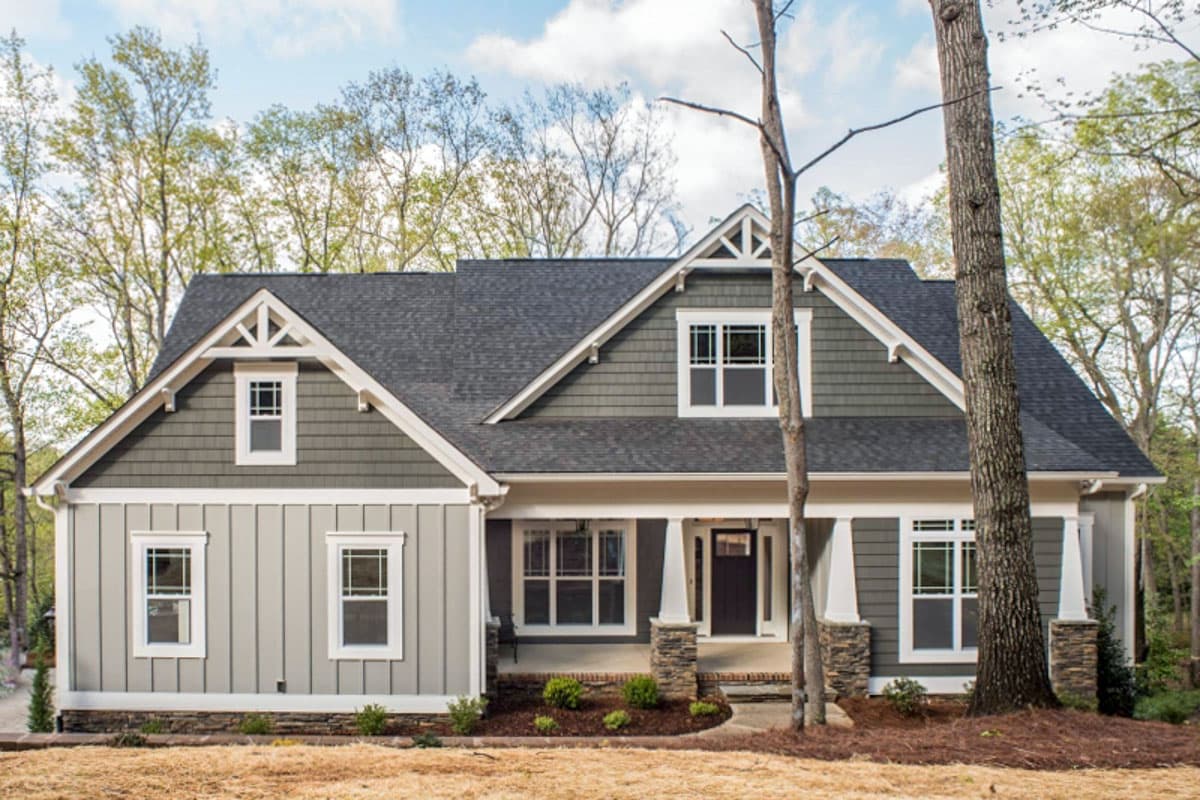

Low slung gables, eave brackets and battered columns join together on the exterior of this attractive house plan to create a classic Craftsman-style elevation. A highly functional room arrangement generates a natural traffic flow throughout the entire design.

The kitchen opens to a breakfast room and vaulted family room, allowing easy access from each of these spaces to the next.
The master suite is conveniently located on the main floor and has an attractive tray ceiling, five-fixture bath and walk-in closet. Bed 4 can be used as a guest bedroom or as a home office.
A vaulted loft overlooks the family room from the upper level. A playroom, craft room or sitting area would all be great options for utilizing this space.

The plans include the following:

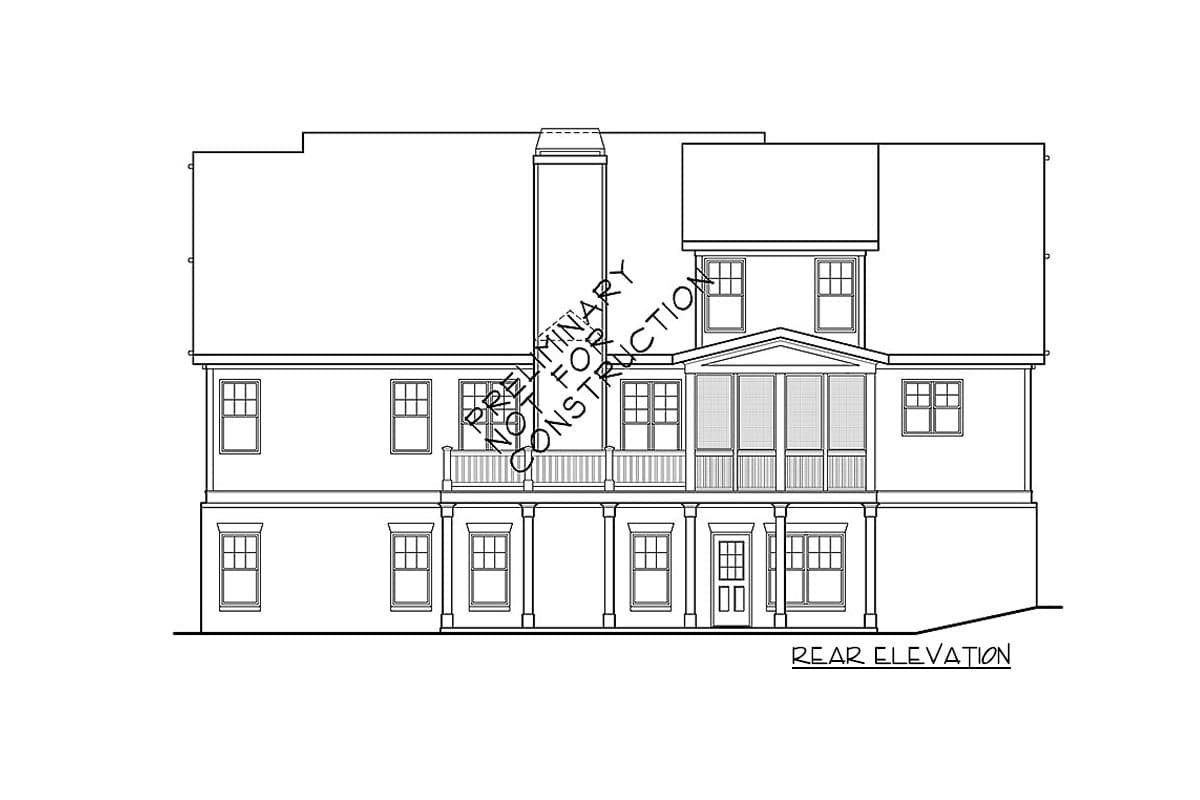

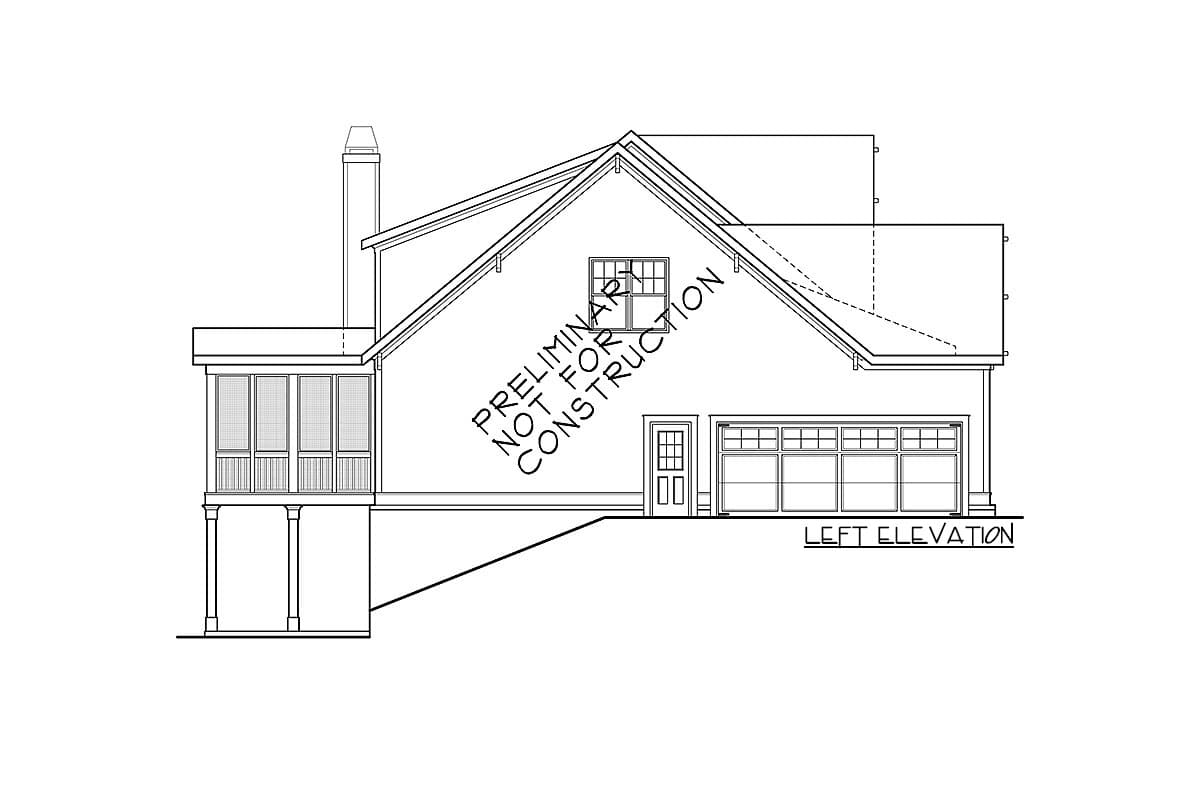

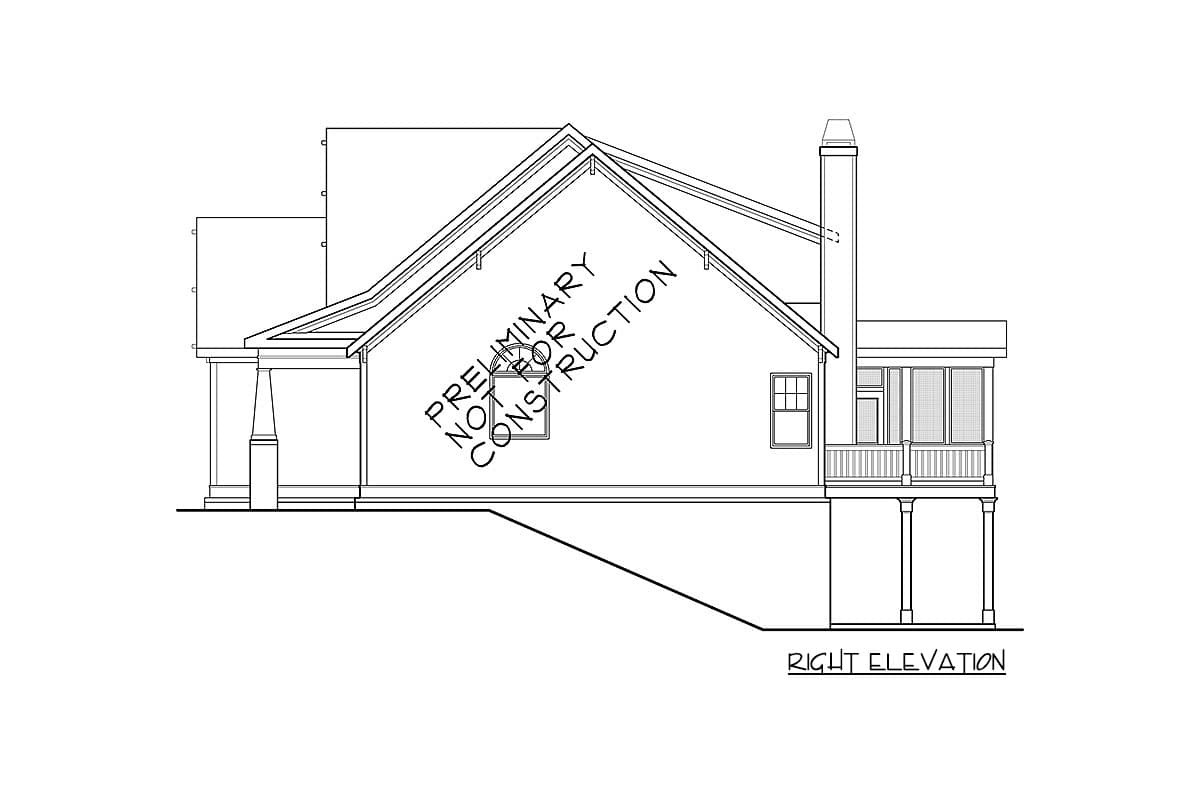

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

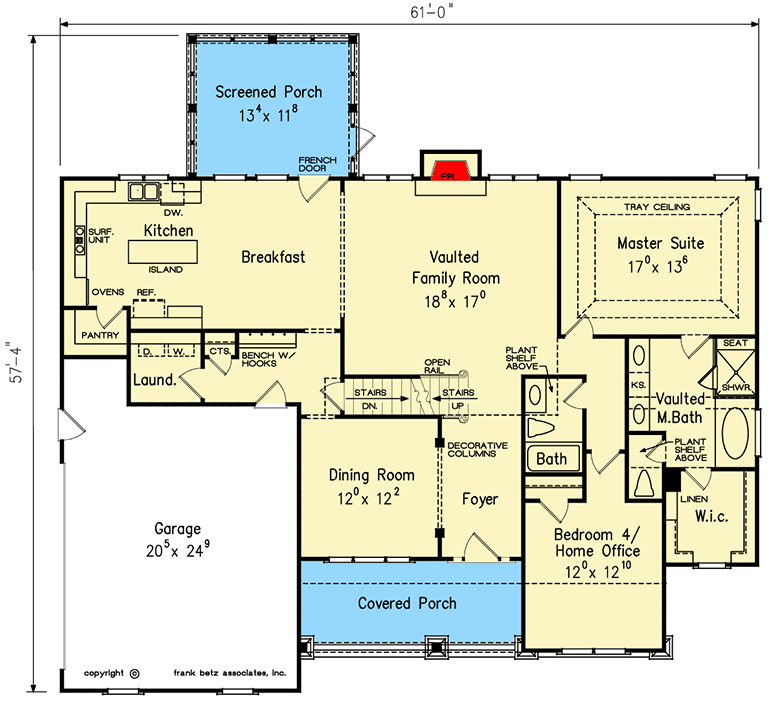

Floor Plan

Plan details



Classic Craftsman-Style House Plan with Vaulted Family with Loft Overlook

  • 2,644

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - multi-use $1,620
  • Reproducible Set $1,700
  • CAD - multi-use $3,090
  • View all purchase option online

About This Plan

Low slung gables, eave brackets and battered columns join together on the exterior of this attractive house plan to create a classic Craftsman-style elevation. A highly functional room arrangement generates a natural traffic flow throughout the entire design.
The kitchen opens to a breakfast room and vaulted family room, allowing easy access from each of these spaces to the next.
The master suite is conveniently located on the main floor and has an attractive tray ceiling, five-fixture bath and walk-in closet. Bed 4 can be used as a guest bedroom or as a home office.
A vaulted loft overlooks the family room from the upper level. A playroom, craft room or sitting area would all be great options for utilizing this space.

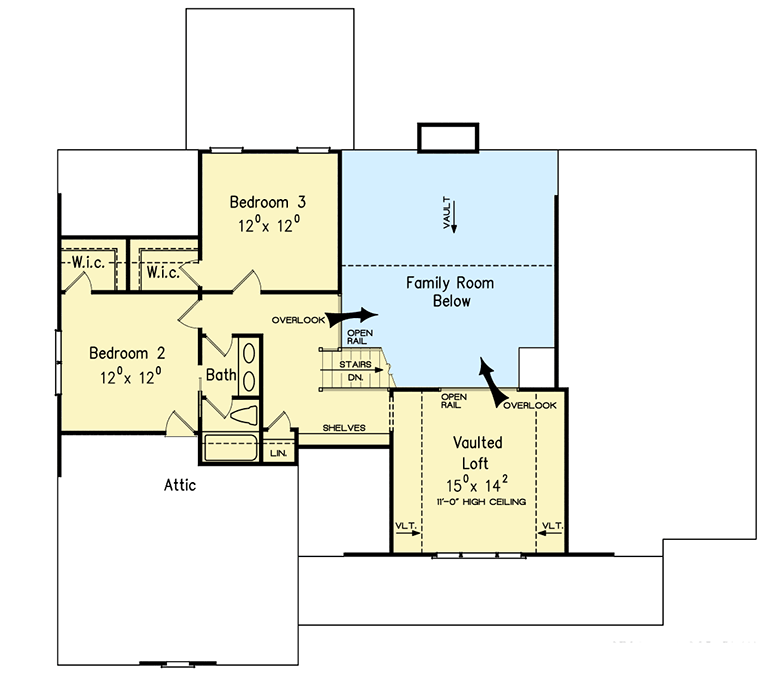

Floor Plans
