Classic Home Plan with Arched Windows and Brick Exterior

Plan 710125BTZ

  • 3,214

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

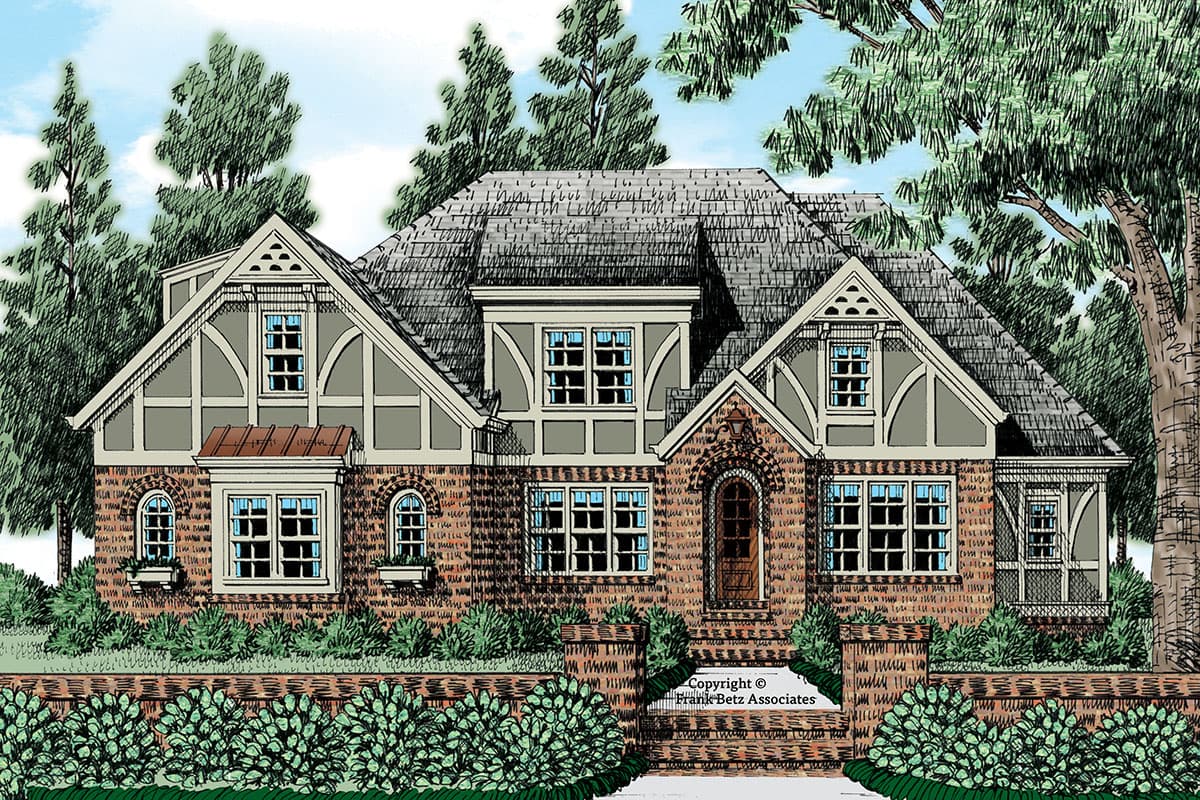

  • Arched windows and a brick exterior make the façade of this classic home plan. Copper detail, window boxes and craftsman gable ends give it personality.
  • A vaulted family room and separate keeping room - both with fireplaces - provide cozy rooms to visit.
  • The large kitchen is adorned with a curved island and breakfast area looking onto the covered back porch and extended deck.
  • A main level master bedroom is found across the home, and comes with a lovely en suite and generous walk-in closet.
  • Upstairs, a study loft with a built-in desk area is waiting to be used. Two additional bedrooms, each with their own full bath, are located on either side of the hall.
  • An optional bonus room is available on this floor as well for a fourth bedroom or possible game area.
  • Related Plans: Get an alternate exterior with house plan 710123BTZ and 710124BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

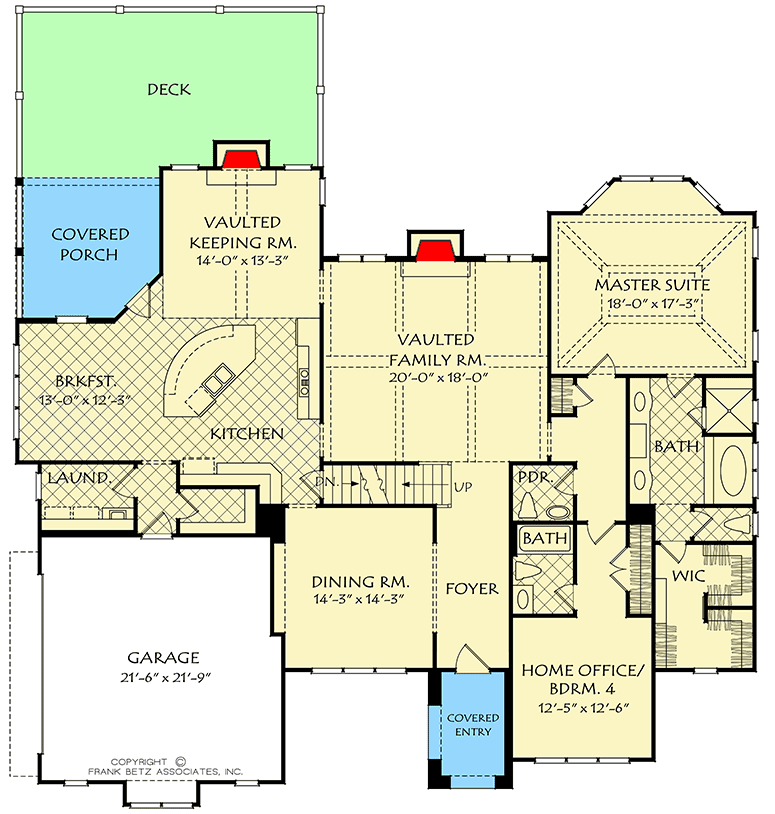

Classic Home Plan with Arched Windows and Brick Exterior - 710125BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

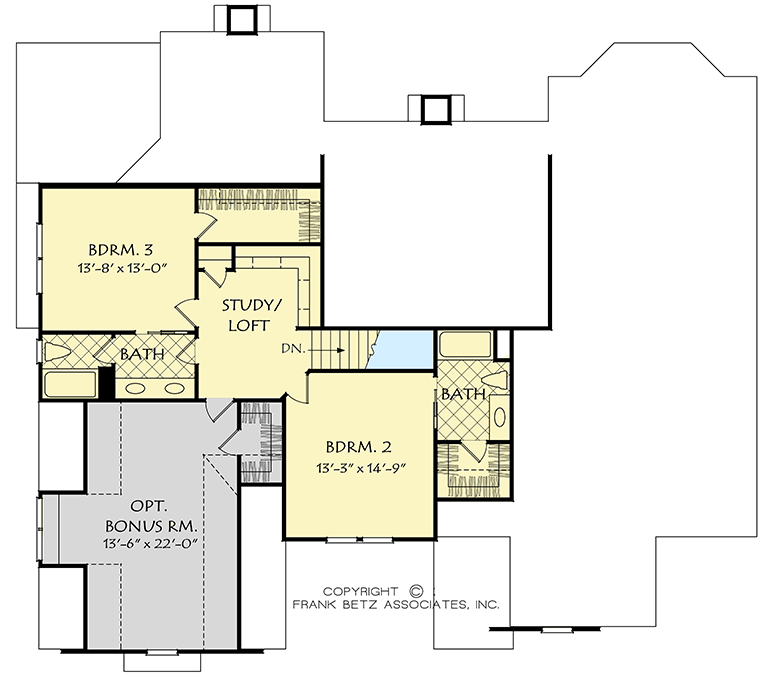

Classic Home Plan with Arched Windows and Brick Exterior - 710125BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,214 sq. ft.
  • 1st Floor: 2,415 sq. ft.
  • 2nd Floor: 799 sq. ft.
  • Bonus: 368 sq. ft.
  • Basement Unfinished: 2,415 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 66' 0"
  • Depth: 59' 4"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 485 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Classic Home Plan with Arched Windows and Brick Exterior

  • 3,214

    Heated s.f.

  • 3 - 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,375
  • 8 Sets $1,475
  • PDF - Unlimited Build $1,620
  • CAD - Unlimited Build $3,090
  • View all purchase option online

About This Plan

  • Arched windows and a brick exterior make the façade of this classic home plan. Copper detail, window boxes and craftsman gable ends give it personality.
  • A vaulted family room and separate keeping room - both with fireplaces - provide cozy rooms to visit.
  • The large kitchen is adorned with a curved island and breakfast area looking onto the covered back porch and extended deck.
  • A main level master bedroom is found across the home, and comes with a lovely en suite and generous walk-in closet.
  • Upstairs, a study loft with a built-in desk area is waiting to be used. Two additional bedrooms, each with their own full bath, are located on either side of the hall.
  • An optional bonus room is available on this floor as well for a fourth bedroom or possible game area.
  • Related Plans: Get an alternate exterior with house plan 710123BTZ and 710124BTZ.
